Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

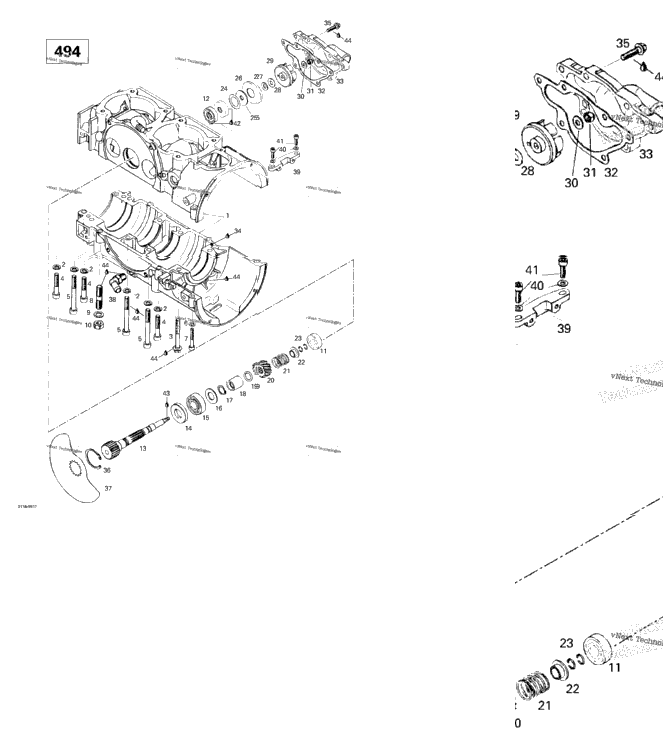

| 420888011 | Crankcase Ass'y Includes 1 - 7. Skandic Wide Track LC. | ||
| 12 | 420945752 | Lock Washer 8 mm Skandic Wide Track LC. | 12 |
| 2 | 420841306 | Hex. Collar Screw M8 X 65 Skandic Wide Track LC. | 2 |
| 420841561 | Socket Head Screw M8 X 45 Skandic Wide Track LC. | ||
| 6 | 420841831 | ALLEN SCREW M8 X 75 Skandic Wide Track LC. | 6 |
| 420945751 | WASHER-LOCK DIN.128 Skandic Wide Track LC. | ||
| 420241816 | SOCKET HEAD SCREW M6 X 40 Skandic Wide Track LC. | ||
| 420941180 | Stud M10 Skandic Wide Track LC. | ||
| 420945753 | Lock Washer Skandic Wide Track LC. | ||
| 4 | 228001045 | Hex. Nut M10 Skandic Wide Track LC. | 4 |
| 1 | 420932797 | Ball Bearing Skandic Wide Track LC. | 1 |
| 420850710 | Oil Seal Skandic Wide Track LC. | ||
| 420837242 | Rotary Valve Shaft Skandic Wide Track LC. | ||
| 420930580 | OIL SEAL Skandic Wide Track LC. | ||
| 1 | 405406400 | Ball Bearing «6203» Skandic Wide Track LC. | 1 |
| 420227439 | SHIM Skandic Wide Track LC. | ||
| 1 | 420845450 | SNAP RING Skandic Wide Track LC. | 1 |
| 1 | 420847282 | SPACER BUSHING Skandic Wide Track LC. | 1 |
| 1 | 420831500 | O-Ring Skandic Wide Track LC. | 1 |
| 1 | 420935735 | Sprocket 14 Teeth Skandic Wide Track LC. | 1 |
| 1 | 420938810 | SPRING Skandic Wide Track LC. | 1 |
| 1 | 420827430 | SPRING SEAT Skandic Wide Track LC. | 1 |
| 2 | 420845160 | CIRCLIP Skandic Wide Track LC. | 2 |
| 1 | 420944462 | SHIM Skandic Wide Track LC. | 1 |
| 1 | 420850890 | Rubber Washer Skandic Wide Track LC. | 1 |
| 1 | 420827970 | Supporting Plate Skandic Wide Track LC. | 1 |
| 1 | 420227945 | Thrust Washer Skandic Wide Track LC. | 1 |
| 420227155 | Washer Skandic Wide Track LC. | ||
| 420922036 | WATER IMPELLER Skandic Wide Track LC. | ||
| 1 | 224061121 | Flat Washer Skandic Wide Track LC. | 1 |
| 420842042 | Locking Nut M6 Skandic Wide Track LC. | ||
| 420931355 | Gasket Skandic Wide Track LC. | ||
| 420922551 | Water Pump Housing Skandic Wide Track LC. | ||
| 413707100 | Sealant, 100 gr Skandic Wide Track LC. | ||
| 6 | 420240031 | Hex. Screw M6 X 25 Skandic Wide Track LC. | 6 |
| 1 | 420845260 | Snap Ring Skandic Wide Track LC. | 1 |
| 420924508 | ROTARY VALVE (147 DEG.) Skandic Wide Track LC. | ||
| 1 | 420922245 | Angular Tube Skandic Wide Track LC. | 1 |
| 420851280 | Fixation Skandic Wide Track LC. | ||
| 420827800 | WASHER Skandic Wide Track LC. | ||
| 2 | 420240181 | Socket Head Screw M5 X 20 Skandic Wide Track LC. | 2 |
| 1 | 413707000 | Dow Corning 111, 150 g Skandic Wide Track LC. | 1 |
| 1 | 413711400 | Loctite 648, 10 ml Skandic Wide Track LC. | 1 |
| 1 | 413703000 | Loctite 242, 10 cc Skandic Wide Track LC. | 1 |
