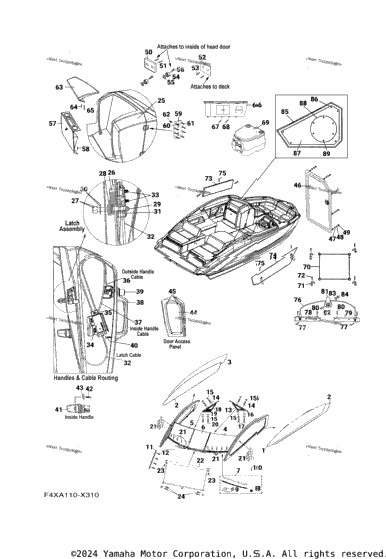

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | F4X-U7693-01-00 | Glass | 1 |
| 2 | F4X-U1846-00-00 | Trim | 2 |
| 1 | F4X-U7693-11-00 | Glass | 1 |
| 1 | F4X-U1811-01-00 | Windshield Fr | 1 |
| 1 | F4X-U1812-01-00 | Windshield Fr. (Rh) | 1 |
| 1 | F4X-U1818-01-00 | Wind Shield | 1 |
| 1 | F4X-U1940-01-00 | Kit, Windshield Fitting | 1 |
| F4X-U5741-00-00 | . .Cushion, Rubber | ||
| 1 | F1C-U1543-00-00 | . Eye Strap | 1 |
| 1 | 90167-08S10-00 | Screw,Pan Tapping | 1 |
| 1 | F4X-U1895-00-00 | Catch, Windshield | 1 |
| 4 | 90149-10SC5-00 | Screw | 4 |
| 1 | F4X-U5522-00-00 | Bracket | 1 |
| 2 | 90110-14S24-00 | Bolt, Hexagon Socket Head | 2 |
| 4 | 90204-14S00-00 | Washer, Spring | 4 |
| 1 | F4X-U1831-00-00 | Plate, Windshield 1 | 1 |
| 2 | 90110-14S32-00 | Bolt, Hexagon Socket Head | 2 |
| 1 | F4X-U5522-10-00 | Bracket | 1 |
| 2 | 90201-099U3-00 | Washer, Plate | 2 |
| 2 | 90110-14S26-00 | Bolt, Hexagon Socket Head | 2 |
| 18 | 90167-12SA9-00 | Screw, Tapping | 18 |
| 1 | F4X-U3956-01-00 | Screen, Roll Up | 1 |
| 2 | 90151-10S28-00 | Screw, Countersunk | 2 |
| 4 | 90169-06SA6-00 | Screw, Truss Head Tapping | 4 |
| 1 | F4X-UF401-00-00 | Door Assy | 1 |
| 1 | F4X-UFRT6-00-00 | Guide, Door 1 | 1 |
| 2 | 90185-16SA2-00 | Nut, Self-Locking | 2 |
| 1 | F4X-U777G-10-00 | Spacer | 1 |
| 1 | F4X-U3774-10-00 | Pin | 1 |
| 2 | 90201-16S00-00 | Washer, Plate | 2 |
| 1 | F4X-U5532-00-00 | Latch | 1 |
| 1 | F4X-U7276-00-00 | Cable | 1 |
| 2 | 90152-14S28-00 | Screw, Countersunk | 2 |
| 1 | F4X-U1404-00-00 | Stopper Cable Assy | 1 |
| 1 | 90167-08S16-00 | Screw, Tapping | 1 |
| 1 | F4X-U7266-00-00 | Cable | 1 |
| 1 | F4X-U7266-10-00 | Cable | 1 |
| 1 | F4X-U5924-00-00 | Manhole Tool Assy | 1 |
| 1 | F4X-U2910-00-00 | Door Lock Assy | 1 |
| 1 | 90111-08833-00 | Bolt, Hexagon Socket Button | 1 |
| 1 | F4X-U5558-00-00 | Handle | 1 |
| 1 | 90111-08860-00 | Bolt, Hexagon Socket Button | 1 |
| 1 | 90209-17SA5-00 | Washer | 1 |
| 1 | F4X-U8269-00-00 | Cover Cable 1 | 1 |
| 4 | 90161-08SA4-00 | Screw, Tapping | 4 |
| 1 | F4X-U5720-00-00 | Door Assy | 1 |
| 10 | 90201-08S00-00 | Washer, Plate | 10 |
| 10 | 90204-08S00-00 | Washer, Spring | 10 |
| 10 | 90170-08S00-00 | Nut | 10 |
| 1 | F4X-UF45B-00-00 | Spacer Door | 1 |
| 2 | 90161-10S12-00 | Screw, Tapping | 2 |
| 1 | F4X-UF45B-10-00 | Spacer Door UN 1.6MM | 1 |
| 1 | F4X-UF45B-20-00 | Spacer Door UN 3.2MM | 1 |
| 2 | 90161-06S12-00 | Screw, Tapping | 2 |
| 2 | F1C-U5741-01-00 | Cushion,Rubber | 2 |
| 2 | 90209-06SA0-00 | Washer UN | 2 |
| 2 | 90167-06S10-00 | Screw,Pan Tapping | 2 |
| 1 | F4X-U4991-00-00 | Console Box | 1 |
| 6 | 90169-10S20-00 | Screw, Truss Head Tapping | 6 |
| 2 | F4X-U5616-00-00 | Hinge | 2 |
| 8 | 90152-14S10-00 | Screw, Countersunk | 8 |
| 8 | 90162-14S12-00 | Screw, Tapping | 8 |
| 8 | 90179-14SA5-00 | Nut | 8 |
| 1 | F4X-U515N-00-00 | Visor | 1 |
| 3 | 90169-10SB1-00 | Screw, Truss Head Tapping | 3 |
| 2 | 90169-10SB3-00 | Screw, Truss Head Tapping | 2 |
| 1 | F4X-UFKV1-00-00 | Counter Assy. 1 | 1 |
| 9 | 90169-10SA1-00 | Screw, Truss Head Tapping | 9 |
| 7 | 90169-10SA0-00 | Screw, Truss Head Tapping | 7 |
| 1 | F4X-U4411-01-00 | Toilet, Marine | 1 |
| 1 | F4X-U2720-00-00 | Inspection Cover Assy | 1 |
| 4 | F3F-U5192-00-00 | Snap | 4 |
| 4 | 90162-08S20-00 | Screw, Tapping | 4 |
| 1 | F4X-U755F-00-00 | Wall, Partition 2 | 1 |
| 1 | F4X-U755F-10-00 | Wall, Partition 2 | 1 |
| 5 | 90169-08SA3-00 | Screw, Truss Head Tapping | 5 |
| 1 | F4X-U8193-00-00 | Cord 1 | 1 |
| 2 | 90167-10S12-00 | Screw, Tapping | 2 |
| 1 | F3R-U4825-00-00 | Bracket, Table | 1 |
| 1 | F3R-U4826-00-00 | Brkt., Table 2 | 1 |
| 2 | 90167-08S24-00 | Screw, Tapping | 2 |
| 1 | F3F-U5192-00-00 | Snap | 1 |
| 1 | 90152-08S24-00 | Screw, Countersunk | 1 |
| 1 | 90209-10SB1-00 | Washer | 1 |
| 1 | 90185-10S00-00 | Nut, Self-Locking | 1 |
| 1 | F4X-UHAV1-00-00 | Frame,Window 1 | 1 |
| 5 | 90161-08SA4-00 | Screw, Tapping | 5 |
| 1 | F4X-UFJE1-00-00 | Window | 1 |
| 1 | F4X-UFJB1-00-00 | Sky Light Roof | 1 |
| 6 | 90167-08S10-00 | Screw,Pan Tapping | 6 |
