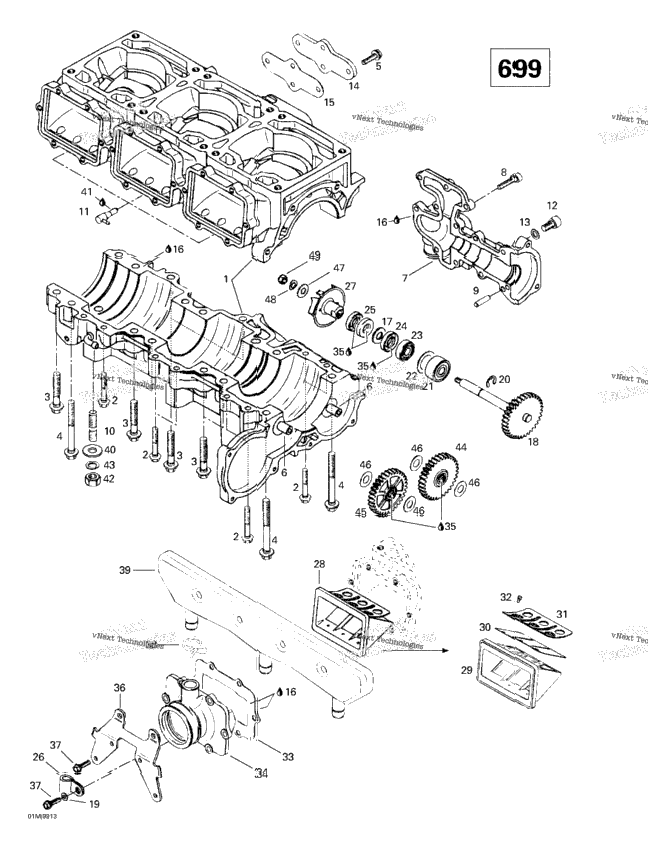

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 420888515 | Crankcase Water Pump Cover Ass'y Includes 1 - 15. Grand Touring 700. | ||
| 420941451 | HEX. COLLAR SCREW M6 X 40 Grand Touring 700. | ||
| 12 | 420940636 | Hex. Collar Screw M8 x 45 Grand Touring 700. | 12 |
| 4 | 420841306 | Hex. Collar Screw M8 X 65 Grand Touring 700. | 4 |
| 4 | 420941250 | Hex. Tapping Screw M6 X 20 Grand Touring 700. | 4 |
| 2 | 420929935 | INTERMEDIATE GEAR SHAFT Grand Touring 700. | 2 |
| XXXX | Not Available As Spare Part - Water Pump Cover Grand Touring 700. | ||
| 12 | 222962565 | Socket Head Screw M6 x 25 Grand Touring 700. | 12 |
| 420429230 | Dowel Pin Grand Touring 700. | ||
| 420940400 | Stud M10 x 25 Grand Touring 700. | ||
| 3 | 420956510 | Check Valve Grand Touring 700. | 3 |
| 420440191 | Socket Head Screw M8 x 16 Grand Touring 700. | ||
| 1 | 420950141 | Sealing Ring Grand Touring 700. | 1 |
| 420810470 | Water Duct Cover Grand Touring 700. | ||
| 420931300 | Water Duct Gasket Grand Touring 700. | ||
| 219704462 | ADHESIVE LOCTITE 515 50ML Grand Touring 700. | ||
| 1 | 420927410 | Flat Washer M10 Grand Touring 700. . | 1 |
| 420837437 | Waterpump - Shaft/Gear Ass'y | ||
| 420827800 | WASHER Grand Touring 700. | ||
| 1 | 420845390 | RETAINING RING Grand Touring 700. | 1 |
| 420832490 | Bearing_Ball Grand Touring 700. | ||
| 1 | 420944466 | SHIM 1 MM Grand Touring 700. | 1 |
| 1 | 420232100 | Ball Bearing Grand Touring 700. | 1 |
| 1 | 420230195 | Oil Seal Grand Touring 700. | 1 |
| 2 | 420950400 | OIL SEAL Grand Touring 700. | 2 |
| 1 | 414176000 | Open Clamp Grand Touring 700. | 1 |
| 420922445 | Impeller Water Grand Touring 700. | ||
| 3 | 420924519 | Reed Valve Ass'y Includes 28 - 32. Grand Touring 700. | 3 |
| XXXX | Not Available As Spare Part - Reed Valve Housing Grand Touring 700. | ||
| 6 | 420924532 | Reed Pedal Grand Touring 700. | 6 |
| 6 | 420924539 | Reed Pedal Stop Grand Touring 700. | 6 |
| 18 | 420941215 | Phillips Screw M3 X 5 Grand Touring 700. | 18 |
| 3 | 420950292 | GASKET 1 MM Grand Touring 700. | 3 |
| 420867841 | INTAKE SOCKET Grand Touring 700. | ||
| 1 | 413707000 | Dow Corning 111, 150 g Grand Touring 700. | 1 |
| 3 | 420851351 | CARRIER Grand Touring 700. | 3 |
| 18 | 420841555 | Hex. Tapping Screw M5 X 20 Grand Touring 700. | 18 |
| 420851360 | Clamp Grand Touring 700. | ||
| 420867792 | Intake Resonator Grand Touring 700. | ||
| 4 | 224001211 | Flat Washer 10 mm Grand Touring 700. | 4 |
| 1 | 413711400 | Loctite 648, 10 ml Grand Touring 700. | 1 |
| 4 | 228001045 | Hex. Nut M10 Grand Touring 700. | 4 |
| 234100602 | WASHER-LOCK SPRING DIN.128A-A2 Grand Touring 700. | ||
| 420834266 | Sprocket 32 T Grand Touring 700. | ||
| 420834267 | SPROCKET, 32 TEETH Grand Touring 700. | ||
| 4 | 420927952 | THRUST WASHER Grand Touring 700. | 4 |
| 420227155 | Washer Grand Touring 700. | ||
| 1 | 420845020 | SPRING WASHER Grand Touring 700. | 1 |
| 420842042 | Locking Nut M6 Grand Touring 700. |
