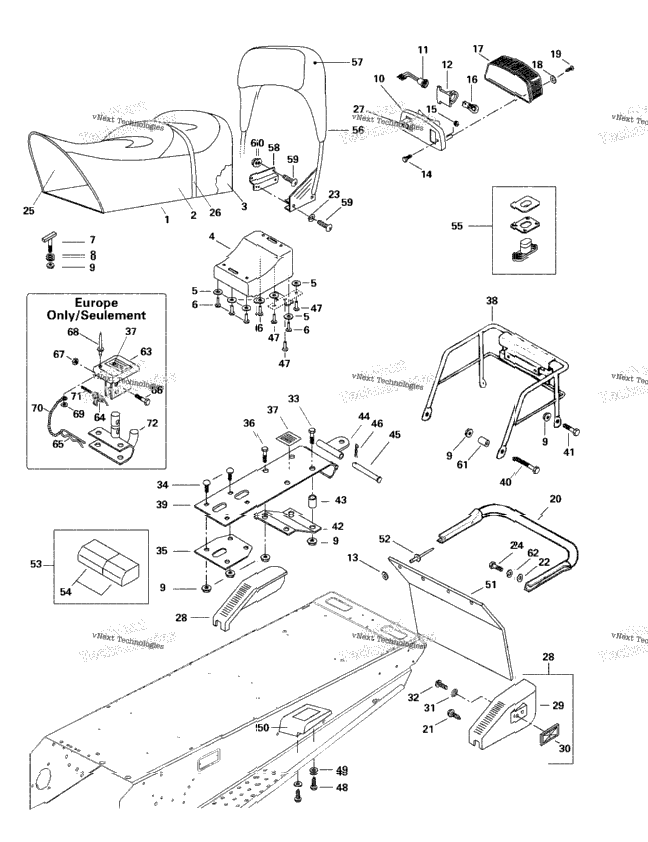

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Seat Ass'y (2 pass.) | ||
| 415082103 | Seat Cover(2 pass.) | ||
| 414924600 | Foam Seat(2 pass.) | ||
| 572051200 | Rear Trunk | ||
| 7 | 517297900 | WASHER | 7 |
| XXXX | Not Available As Spare Part - Rivet | ||
| 732601221 | «T» Bolt | ||
| 4 | 732610072 | Push Nut | 4 |
| 16 | 228761045 | Elastic Flange Nut M6 | 16 |
| 414979400 | Taillamp Housing Includes 10 - 12. | ||
| 414979410 | Socket | ||
| 414979411 | Rubber Damper | ||
| 4 | 517225900 | Flat Washer | 4 |
| 2 | 222053065 | Hex. Screw M5 x 30 | 2 |
| 2 | 228751045 | Elastic Flange Nut M5 | 2 |
| 1 | 410504000 | Bulb, Tail Lamp | 1 |
| 414513700 | Lens | ||
| 2 | 414516400 | Washer | 2 |
| 2 | 732601253 | Self Tapping Phillips Screw | 2 |
| 517243800 | Rear Bumper | ||
| 6 | 365901100 | HEX. SCREW 12 X 3/4 | 6 |
| 4 | 224081171 | Flat Washer 8 mm | 4 |
| 4 | 213000001 | Lock-Washer 8 mm | 4 |
| 4 | 222082065 | Hex. Screw M8 x 20 | 4 |
| 572100600 | Sub-Seat | ||
| 414943300 | Belt-Seat | ||
| 572150800 | Block Dimmer Switch | ||
| 580642800 | RH Moulding Ass'y (Cargo) Includes 28 - 32. | ||
| 580642900 | LH Moulding Ass'y (Cargo) | ||
| 572059500 | RH Moulding | ||
| 572059400 | LH Moulding | ||
| 414510100 | REFLECTOR, RED | ||
| 224151101 | WASHER-LOCK SERRATED DIN.6798A | ||
| 1 | 222851065 | SCREW-PAN HD.PH.DIN.7985A | 1 |
| 2 | 222065065 | Hex. Screw M6 x 50 (Europe) | 2 |
| 4 | 222262065 | Carriage Bolt M6 x 20 (Europe) | 4 |
| 517256100 | Inner Plate | ||
| 2 | 222061865 | Hex. Screw M6 x 18 | 2 |
| 414998500 | Instruction Label (Hitch) | ||
| 517273100 | Rack | ||
| 517294700 | Hitch Bracket | ||
| 2 | 222064065 | Hex. Screw M6 x 40 | 2 |
| 2 | 222062065 | Hex. Screw M6 x 20 | 2 |
| 517294800 | Reinforcement | ||
| 2 | 517191700 | SPACER | 2 |
| 1 | 517008700 | Welded Hitch Plate | 1 |
| 1 | 505001700 | CLEVIS PIN | 1 |
| 1 | 371800200 | Cotter Pin | 1 |
| 3 | 390409600 | Pop Rivet 3/16" | 3 |
| 4 | 365901100 | HEX. SCREW 12 X 3/4 | 4 |
| 4 | 224061121 | Flat Washer | 4 |
| 414975300 | RH Rear Footrest | ||
| 414975400 | LH Rear Footrest | ||
| 572059700 | Snow Guard | ||
| 4 | 390908000 | Rivet (Black) | 4 |
| 529029800 | Tool Box Kit (With Tools) Skandic 380. | ||
| 529027900 | Tool Kit Skandic 500. | ||
| 572036310 | BOX COVER | ||
| 414728000 | SEAT BUCKLE | ||
| 415104700 | Seat Backrest Ass'y Includes 56 - 57. | ||
| 415036803 | Backrest Cover | ||
| 517287200 | <<Z>> Plate | ||
| 8 | 732601250 | Screw M8 x 20 | 8 |
| 4 | 228781045 | Elastic Flange Stop Nut M8 | 4 |
| 517185600 | Spacer | ||
| 4 | 224781140 | Lock Washer 8 mm | 4 |
| 517152700 | Hitch Protector | ||
| 1 | 517152800 | SPRING | 1 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 222063065 | Hex. Screw M6 x 30 | 1 |
| 1 | 228561045 | Elastic Stop Nut M6 | 1 |
| 390409400 | RIVET_POP 5/32 X ,400 BLACK | ||
| XXXX | Not Available As Spare Part - Washer (Europe) | ||
| XXXX | Not Available As Spare Part - Chain (Europe) | ||
| 1 | 732804000 | SPRING PIN M3 X 24 | 1 |
| 517199300 | Hitch |
