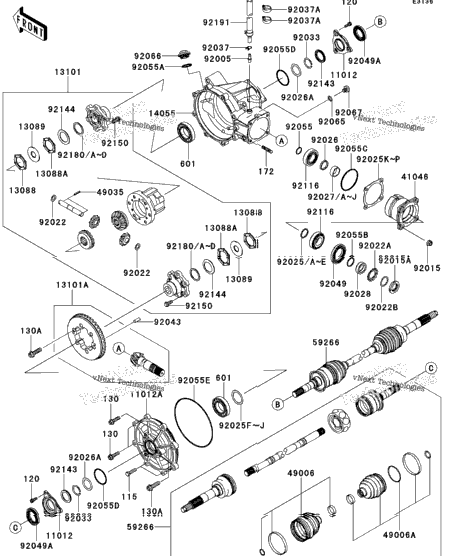

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 11012-1648 | CAP | 2 |
| 1 | 11012-1649 | CAP,GEAR CASE | 1 |
| 2 | 13088-1075 | PLATE-FRICTION,T=2.8 | 2 |
| 2 | 13088-1078 | PLATE-FRICTION,T=2.4 | 2 |
| 2 | 13089-1083 | PLATE-CLUTCH | 2 |
| 1 | 13101-1190 | GEAR-ASSY | 1 |
| 1 | 13101-5096 | GEAR-ASSY,BEVEL | 1 |
| 1 | 14055-1114 | CASE-GEAR,FR | 1 |
| 1 | 41046-1089 | HOUSING-BEARING | 1 |
| 2 | 49006-0086 | BOOT,UJ,OUTSIDE | 2 |
| 2 | 49006-0087 | BOOT,DOJ,INSIDE | 2 |
| 2 | 49035-1056 | PIN-SPRING | 2 |
| 2 | 59266-0034 | JOINT-BALL | 2 |
| 1 | 92005-1127 | FITTING,BREATHER | 1 |
| 4 | 92015-1402 | NUT,8MM | 4 |
| 1 | 92015-1768 | NUT,25MM | 1 |
| 2 | 92022-1941 | WASHER | 2 |
| 1 | 92022-1990 | WASHER,TOOTHED | 1 |
| 1 | 92022-225 | WASHER,25.3X32X0.5 | 1 |
| 1 | 92025-1072 | SHIM,25.2X29.8X1.70 | 1 |
| 1 | 92025-1073 | SHIM,25.2X29.8X1.72 | 1 |
| 1 | 92025-1074 | SHIM,25.2X29.8X1.74 | 1 |
| 1 | 92025-1075 | SHIM,25.2X29.8X1.76 | 1 |
| 1 | 92025-1076 | SHIM,25.2X29.8X1.78 | 1 |
| 1 | 92025-1077 | SHIM,25.2X29.8X1.80 | 1 |
| 1 | 92025-1849 | SHIM,35.3X46X1.00 | 1 |
| 1 | 92025-1850 | SHIM,35.3X46X0.10 | 1 |
| 1 | 92025-1851 | SHIM,35.3X46X0.15 | 1 |
| 1 | 92025-1856 | SHIM,35.3X46X0.50 | 1 |
| 1 | 92025-1857 | SHIM,35.3X46X0.80 | 1 |
| 1 | 92025-1919 | SHIM,T=0.10 | 1 |
| 1 | 92025-1920 | SHIM,T=0.15 | 1 |
| 1 | 92025-1921 | SHIM,T=0.50 | 1 |
| 1 | 92025-1922 | SHIM,T=0.80 | 1 |
| 1 | 92025-1923 | SHIM,T=1.00 | 1 |
| 1 | 92025-1924 | SHIM,T=1.20 | 1 |
| 1 | 92026-1337 | SPACER | 1 |
| 2 | 92026-1338 | SPACER,29X40X1.0 | 2 |
| 1 | 92027-1401 | COLLAR,25.2X29.8X10.2 | 1 |
| 1 | 92027-1402 | COLLAR,25.2X29.8X10.3 | 1 |
| 2 | 115CA0830 | BOLT-SMALL-UPSET,8X30 | 2 |
| 6 | 120CA0616 | BOLT-SOCKET,6X16 | 6 |
| 4 | 130CA0830 | BOLT-FLANGED,8X30 | 4 |
| 8 | 130CA1035 | BOLT-FLANGED,10X35 | 8 |
| 4 | 172BA0822 | BOLT-STUD,8X22 | 4 |
| 1 | 92027-1403 | COLLAR,25.2X29.8X10.4 | 1 |
| 1 | 92027-1404 | COLLAR,25.2X29.8X10.5 | 1 |
| 1 | 92027-1405 | COLLAR,25.2X29.8X10.6 | 1 |
| 1 | 92027-1406 | COLLAR,25.2X29.8X10.7 | 1 |
| 1 | 92027-1407 | COLLAR,25.2X29.8X10.8 | 1 |
| 1 | 92027-1408 | COLLAR,25.2X29.8X10.9 | 1 |
| 1 | 92027-1409 | COLLAR,25.2X29.8X11.0 | 1 |
| 1 | 92027-1410 | COLLAR,25.2X29.8X11.1 | 1 |
| 1 | 92027-1411 | COLLAR,25.2X29.8X11.2 | 1 |
| 1 | 92028-1699 | BUSHING | 1 |
| 2 | 92033-1249 | RING-SNAP,T=1.5 | 2 |
| 1 | 92037-147 | CLAMP,TUBE | 1 |
| 2 | 92037-1827 | CLAMP,HOSE | 2 |
| 2 | 92043-1400 | PIN,8X18 | 2 |
| 1 | 92049-1298 | SEAL-OIL,TC35X55X8 | 1 |
| 2 | 92049-1309 | SEAL-OIL,TC30487 | 2 |
| 1 | 92055-055 | RING-O,19.5X1.5 | 1 |
| 1 | 92055-1136 | RING-O,25.7X2.4 | 1 |
| 1 | 92055-1160 | RING-O,24.7MM | 1 |
| 1 | 92055-1408 | RING-O,65.2X2.4 | 1 |
| 2 | 92055-1409 | RING-O,46X2.5 | 2 |
| 1 | 92055-1410 | RING-O,154.1X2.5 | 1 |
| 1 | 92065-058 | GASKET,10.5X16X1 | 1 |
| 1 | 92066-1303 | PLUG | 1 |
| 1 | 92067-001 | PLUG,DRAIN,10X12 | 1 |
| 2 | 92116-1003 | BEARING-ROLLER,4T30205 | 2 |
| 2 | 92143-1703 | COLLAR | 2 |
| 2 | 92144-1671 | SPRING | 2 |
| 12 | 92150-1109 | BOLT,8X20 | 12 |
| 1 | 92180-1121 | SHIM,32X48X0.8 | 1 |
| 1 | 92180-1122 | SHIM,32X48X1.0 | 1 |
| 1 | 92180-1123 | SHIM,32X48X1.2 | 1 |
| 1 | 92180-1124 | SHIM,32X48X1.4 | 1 |
| 1 | 92180-1125 | SHIM,32X48X1.6 | 1 |
| 1 | 92191-1628 | TUBE | 1 |
| 2 | 601B6007 | BEARING-BALL,#6007C3 | 2 |
