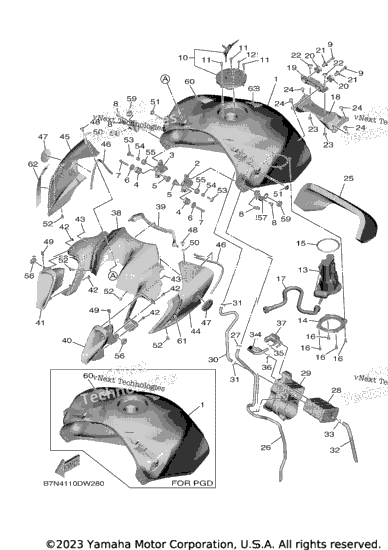

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 0 | B7N-YK241-00-P0 | Fuel Tank Comp UR FOR DPBMC | 0 |
| 0 | B7N-Y2410-00-01 | Fuel Tank Comp UR FOR PGD | 0 |
| 0 | B7N-24110-00-P1 | Fuel Tank Comp UR FOR MDNM6 | 0 |
| 0 | B7N-24191-00-00 | Bracket, Fuel Tank 1 | 0 |
| 0 | B7N-24192-00-00 | Bracket, Fuel Tank 2 | 0 |
| 0 | 90480-18008-00 | Grommet | 0 |
| 0 | 90387-06266-00 | Collar | 0 |
| 0 | 90201-06072-00 | Washer, Plate | 0 |
| 0 | 92012-06035-00 | Bolt, Button Head | 0 |
| 0 | 95E37-06014-00 | Bolt, Flange Deep Recess | 0 |
| 0 | 95E32-06025-00 | Bolt, Flange Deep Recess | 0 |
| 0 | 39P-24602-00-00 | Cap Assy | 0 |
| 0 | 90110-05112-00 | Bolt, Hexagon Socket Head | 0 |
| 0 | 91312-05010-00 | Bolt, Hexagon Socket Head | 0 |
| 1RC-13907-01-00 | Fuel Pump Comp | ||
| 0 | 1RC-24491-00-00 | Bracket, Fuel Pump | 0 |
| 0 | 1RC-24486-00-00 | O-Ring | 0 |
| 0 | 90110-05028-00 | Bolt, Hexagon Socket Head | 0 |
| 0 | B7N-13971-00-00 | Pipe, Fuel 1 | 0 |
| 0 | B7N-2413Y-00-00 | Bracket, Tank Fitting | 0 |
| 0 | B7N-2419F-00-00 | Bracket, Canistor | 0 |
| 0 | 3D7-24339-00-00 | Grommet | 0 |
| 0 | 90387-06136-00 | Collar | 0 |
| 0 | 90111-06136-00 | Bolt,Hex. Socket Button | 0 |
| 0 | 95702-06500-00 | Nut, Flange | 0 |
| 0 | 90111-06029-00 | Bolt,Hex. Socket Button | 0 |
| 0 | B7N-2414H-00-00 | Damper, Plate 1 | 0 |
| 0 | B7N-24315-00-00 | Pipe 5 | 0 |
| 0 | 90467-090A2-00 | Clip | 0 |
| 0 | B7N-24170-00-00 | Canister Assy | 0 |
| 0 | B7N-24183-00-00 | Damper, Locating 3 | 0 |
| 0 | B7N-24313-10-00 | Pipe 3 | 0 |
| 0 | B7N-24316-00-00 | Pipe 6 | 0 |
| 0 | 90467-10041-00 | Clip | 0 |
| 0 | B7N-24317-10-00 | Pipe 7 | 0 |
| 0 | 90467-09103-00 | Clip | 0 |
| 0 | B7N-86120-00-00 | Solenoid Valve Assy | 0 |
| 0 | B7N-241B1-00-00 | Cover, Tank | 0 |
| 0 | B7N-2418B-00-00 | Mole, Fuel Tank 1 | 0 |
| 0 | B7N-2837N-00-00 | Grill, Air Intake 1 | 0 |
| 0 | B7N-2837R-00-00 | Grill, Air Intake 2 | 0 |
| 0 | 97707-50016-00 | Screw, Truss Head Tapping | 0 |
| 0 | 90183-05M02-00 | Nut, Spring | 0 |
| 0 | B7N-2137W-00-P0 | Scoop, Air 1 MBNM3 FOR DPBMC | 0 |
| 0 | B7N-2137W-00-3E | Scoop, Air 1 FOR PGD | 0 |
| 0 | B7N-2137W-00-P1 | Scoop, Air 1 FOR MDNM6 | 0 |
| 0 | B7N-2137X-00-P0 | Scoop, Air 2 MBNM3 FOR DPBMC | 0 |
| 0 | B7N-2137X-00-3E | Scoop, Air 2 FOR PGD | 0 |
| 0 | B7N-2137X-00-P1 | Scoop, Air 2 FOR MDNM6 | 0 |
| 0 | 90520-07002-00 | Damper, Plate | 0 |
| 0 | 1RC-2413B-01-00 | Emblem | 0 |
| 0 | 90111-05007-00 | Bolt,Hex. Socket Button | 0 |
| 0 | 90183-05042-00 | Nut, Spring | 0 |
| 0 | 90202-05180-00 | Washer, Plate | 0 |
| 0 | 90269-09006-00 | Rivet | 0 |
| 0 | 90269-06001-00 | Rivet | 0 |
| 0 | 90111-06137-00 | Bolt,Hex. Socket Button | 0 |
| 0 | 90387-06057-00 | Collar | 0 |
| 0 | 90480-14003-00 | Grommet | 0 |
| 0 | 90480-01558-00 | Grommet | 0 |
| 0 | B7N-2411F-00-00 | Plate, Fitting | 0 |
| 0 | B7N-2411L-00-00 | Hook Tank Fitting | 0 |
| 0 | 90480-13567-00 | Grommet | 0 |
| 0 | 29P-2816R-01-00 | Label, Warning General Info | 0 |
| 0 | B7N-2173E-00-00 | Graphic 1 UR FOR DPBMC | 0 |
| 0 | B7N-2173E-10-00 | Graphic 1 UR FOR PGD | 0 |
| 0 | B7N-2173E-20-00 | Graphic 1 UR FOR MDNM6 | 0 |
| 0 | B7N-2173F-00-00 | Graphic 2 UR FOR DPBMC | 0 |
| 0 | B7N-2173F-10-00 | Graphic 2 UR FOR PGD | 0 |
| 0 | B7N-2173F-20-00 | Graphic 2 UR FOR MDNM6 | 0 |
| 0 | B67-24161-01-00 | Emblem 1 FOR DPBMC,MDNM6 | 0 |
