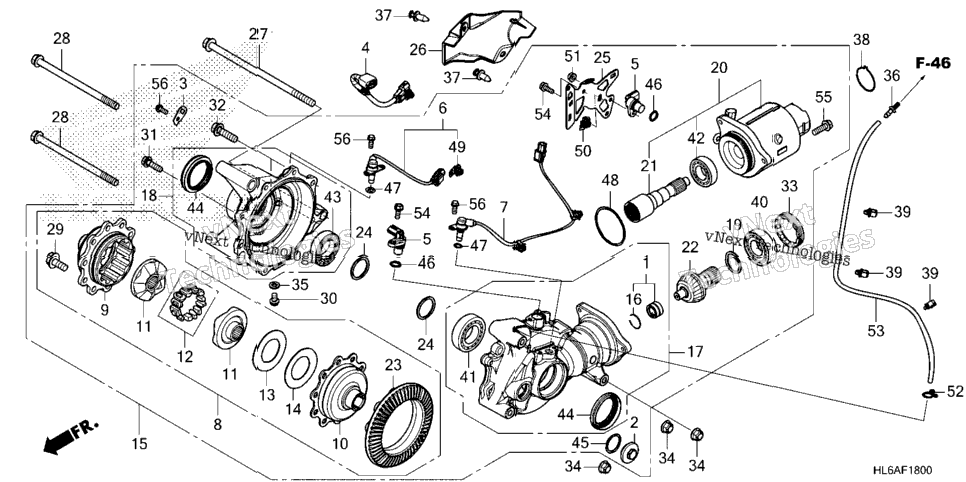

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 06910-HR6-B00 | BEARING SET, NEEDLE | 1 |
| 1 | 12361-035-000 | CAP, TAPPET ADJUSTING HOLE | 1 |
| 1 | 30535-HL6-A00 | STAY, HARNESS CLIP | 1 |
| 1 | 32106-HL6-A00 | SUB-HARNESS, FR. DIFFERENTIAL | 1 |
| 2 | 37700-KZR-601 | SENSOR ASSY., SPEED (TDK-EPC) | 2 |
| 1 | 38520-HL6-A01 | SENSOR, R. FR. WHEEL SPEED | 1 |
| 1 | 38525-HL6-A01 | SENSOR, L. FR. WHEEL SPEED | 1 |
| 1 | 41200-HL6-AF1 | DIFFERENTIAL, FR. | 1 |
| 1 | 41211-HL6-AF1 | CASE, FR. | 1 |
| 1 | 41212-HL6-AF1 | CAP, FR. | 1 |
| 2 | 41231-HL6-A01 | CAM, FACE (66) (A) | 2 |
| 1 | 41240-HL4-A01 | FOLLOWER SET, CAM | 1 |
| 1 | 41251-HL4-A01 | SHIM A (1.3) | 1 |
| 1 | 41251-HL6-A01 | SHIM A (1.1) | 1 |
| 1 | 41252-HL4-A01 | SHIM B (1.4) | 1 |
| 1 | 41252-HL6-A01 | SHIM B (1.2) | 1 |
| 1 | 41253-HL4-A01 | SHIM C (1.5) | 1 |
| 1 | 41254-HL4-A01 | SHIM D (1.6) | 1 |
| 1 | 41255-HL4-A01 | SHIM E (1.7) | 1 |
| 1 | 41261-HL6-A01 | SPRING, DIFFERENTIAL SIDE CONED | 1 |
| 1 | 41400-HL6-AF1 | GEAR, FR. FINAL | 1 |
| 1 | 41400-HL6-AF2 | GEAR, FR. FINAL | 1 |
| 1 | 41405-HA7-670 | RING, STOPPER | 1 |
| 1 | 41411-HL6-AF1 | CASE SUB-ASSY., FR. | 1 |
| 1 | 41412-HL6-AF0 | COVER SUB-ASSY., FR. | 1 |
| 1 | 41447-HM8-000 | SHIM A, PINION GEAR (1.64) | 1 |
| 1 | 41448-HM8-000 | SHIM B, PINION GEAR (1.70) | 1 |
| 1 | 41449-HM8-000 | SHIM C, PINION GEAR (1.76) | 1 |
| 1 | 41451-HM8-000 | SHIM D, PINION GEAR (1.82) | 1 |
| 1 | 41452-HM8-000 | SHIM E, PINION GEAR (1.88) | 1 |
| 1 | 41453-HM8-000 | SHIM F, PINION GEAR (1.94) | 1 |
| 1 | 41454-HM8-000 | SHIM G, PINION GEAR (2.00) | 1 |
| 1 | 41455-HM8-000 | SHIM H, PINION GEAR (2.06) | 1 |
| 1 | 41456-HM8-000 | SHIM I, PINION GEAR (2.12) | 1 |
| 1 | 41457-HM8-000 | SHIM J, PINION GEAR (2.18) | 1 |
| 1 | 41500-HL6-AA1 | CLUTCH, FR. FINAL | 1 |
| 1 | 41515-HL6-AA1 | JOINT, FR. | 1 |
| 1 | 41521-HL6-A00 | GEAR, FR. PINION (13T) | 1 |
| 1 | 41531-HL4-A00 | GEAR, FR. RING (44T) | 1 |
| 2 | 41540-HA0-000 | SPACER A, RING GEAR (1.82) | 2 |
| 2 | 41541-HA0-000 | SPACER B, RING GEAR (1.88) | 2 |
| 2 | 41542-HA0-000 | SPACER C, RING GEAR (1.94) | 2 |
| 2 | 41543-HA0-000 | SPACER D, RING GEAR (2.00) | 2 |
| 2 | 41544-HA0-000 | SPACER E, RING GEAR (2.06) | 2 |
| 2 | 41545-HA0-000 | SPACER F, RING GEAR (2.12) | 2 |
| 2 | 41546-HA0-000 | SPACER G, RING GEAR (2.18) | 2 |
| 2 | 41547-HA0-000 | SPACER H, RING GEAR (2.24) | 2 |
| 2 | 41548-HA0-000 | SPACER I, RING GEAR (2.30) | 2 |
| 2 | 41561-HL4-A00 | SPACER X, RING GEAR (1.14) | 2 |
| 2 | 41562-HL4-A00 | SPACER Y, RING GEAR (1.20) | 2 |
| 2 | 41563-HL4-A00 | SPACER Z, RING GEAR (1.76) | 2 |
| 2 | 41564-HL4-A00 | SPACER J, RING GEAR (1.80) | 2 |
| 2 | 41565-HL4-A00 | SPACER K, RING GEAR (1.86) | 2 |
| 2 | 41566-HL4-A00 | SPACER L, RING GEAR (1.92) | 2 |
| 2 | 41567-HL4-A00 | SPACER M, RING GEAR (1.98) | 2 |
| 2 | 41568-HL4-A00 | SPACER N, RING GEAR (2.04) | 2 |
| 1 | 41711-HL6-A00 | STAY, CLUTCH COVER | 1 |
| 1 | 41713-HL6-A00 | COVER, FR. FINAL CLUTCH | 1 |
| 1 | 90102-HP6-A00 | BOLT, FLANGE (10X213) | 1 |
| 2 | 90103-GFZ-000 | BOLT, FLANGE (10X165) | 2 |
| 10 | 90104-HL4-A00 | BOLT, FLANGE (10X23) | 10 |
| 1 | 90109-371-000 | BOLT, SEALING (8MM) | 1 |
| 6 | 90133-HP5-600 | BOLT, FLANGE (8X27) | 6 |
| 2 | 90134-HP5-600 | BOLT, FLANGE (10X35) | 2 |
| 1 | 90242-MB0-000 | NUT, LOCK (64MM) | 1 |
| 3 | 90305-HC0-770 | NUT, SELF-LOCK (10MM) | 3 |
| 1 | 90471-580-000 | WASHER (8MM) | 1 |
| 1 | 90652-HF7-003 | JOINT, BREATHER TUBE | 1 |
| 2 | 90653-HC4-900 | CLIP, SPLASH GUARD (Honda Code 3795994) | 2 |
| 1 | 90660-HL6-A00 | CIRCLIP, SPECIAL (41.7) | 1 |
| 3 | 90682-MGS-D41 | CLIP, CABLE | 3 |
| 1 | 91051-HL4-A01 | BEARING, RADIAL BALL (6206) | 1 |
| 1 | 91052-HL6-AF1 | BEARING (35X68X16) | 1 |
| 1 | 91053-HL6-A01 | BEARING, RADIAL BALL (35X55X13) | 1 |
| 1 | 91062-HL6-AF1 | BEARING (35X60X14) | 1 |
| 2 | 91254-HL4-F43 | OIL SEAL,53X70X7 | 2 |
| 1 | 91302-001-020 | O-RING (30.8MM) (Honda Code 0001065) | 1 |
| 2 | 91303-KF0-003 | O-RING (14.8X2.4) (ARAI) | 2 |
| 2 | 91306-MG3-000 | O-RING (1.5X9.5) | 2 |
| 2 | 91306-105-690 | O-RING (1.5X9.5) | 2 |
| 1 | 91314-MG7-003 | O-RING (69.5X3) (ARAI) | 1 |
| 1 | 91535-STK-003 | CLIP, CONNECTOR (DARK BLUE) | 1 |
| 1 | 91535-TA0-003 | CLIP, CONNECTOR (DARK BROWN) | 1 |
| 1 | 94050-06000 | NUT, FLANGE (6MM) | 1 |
| 1 | 95002-02650 | CLIP, TUBE (B6.5) | 1 |
| 1 | 95005-35008-10M | BULK HOSE, VACUUM (3.5X8000) (3.5X1000) | 1 |
| 2 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 2 |
| 3 | 95701-08025-00 | BOLT, FLANGE (8X25) | 3 |
| 5 | 96001-06014-00 | BOLT, FLANGE (6X14) | 5 |
