Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

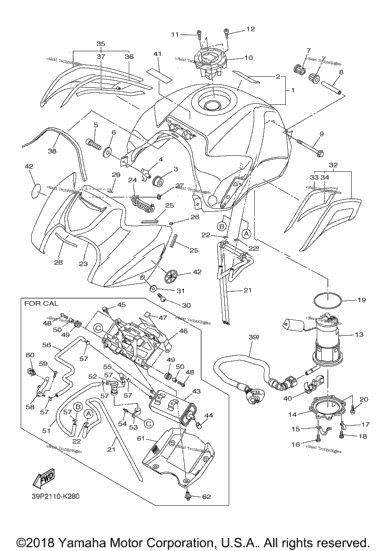

| 39P-Y2410-00-01 | Fuel Tank Comp SMX | ||
| 1 | 39P-24161-00-00 | . .Emblem 1 | 1 |
| 2 | 5VY-24181-00-00 | Damper, Locating 1 | 2 |
| 2 | 2D1-2412G-00-00 | Collar | 2 |
| 2 | 91312-06016-00 | Bolt, Hexagon Socket Head | 2 |
| 2 | 90201-06086-00 | Washer, Plate | 2 |
| 2 | 5SL-24183-00-00 | Damper, Locating 3 | 2 |
| 1 | 90387-06055-00 | Collar | 1 |
| 1 | 95022-06090-00 | Bolt, Flange | 1 |
| 1 | 5JJ-24602-01-00 | Cap Assy | 1 |
| 3 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 |
| 1 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 39P-13907-00-00 | Fuel Pump Comp | 1 |
| 1 | 39P-24491-00-00 | Bracket, Fuel Pump | 1 |
| 1 | 2D1-24192-00-00 | .Bracket, Fuel Tank 2 | 1 |
| 2 | 98902-05008-00 | Screw, Bind | 2 |
| 1 | 90461-10010-00 | Clamp | 1 |
| 1 | 90154-05035-00 | Screw, Binding | 1 |
| 1 | 5JW-24486-00-00 | O-Ring | 1 |
| 6 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 |
| 1 | 39P-24317-00-00 | Pipe 7 | 1 |
| 0 | 39P-24315-00-00 | Pipe 5 FOR CALIFORNIA | 0 |
| 2 | 90467-09006-00 | Clip | 2 |
| 0 | 90467-09006-00 | Clip FOR CALIFORNIA | 0 |
| 1 | 39P-2171A-00-P0 | Cover, Top SMX | 1 |
| 1 | 39P-241B1-00-00 | Cover, Tank | 1 |
| 4 | 4XV-2834E-00-00 | .Damper 3 | 4 |
| 2 | 14B-24181-00-00 | Damper, Locating 1 | 2 |
| 2 | 90183-05M02-00 | Nut, Spring | 2 |
| 1 | 39P-28307-00-00 | Seal | 1 |
| 2 | 1D7-15379-00-00 | Seal | 2 |
| 4 | 90111-05019-00 | Bolt, Hex. Socket Button | 4 |
| 4 | 90202-05224-00 | Washer, Plate | 4 |
| 1 | 39P-24106-00-00 | Tank Side Cover Assy 1 | 1 |
| 1 | 39P-241A3-00-00 | . .Seal 3 | 1 |
| 1 | 39P-241A5-00-00 | . .Seal 5 | 1 |
| 1 | 39P-24108-00-00 | Tank Side Cover Assy 2 | 1 |
| 1 | 39P-241A4-00-00 | . .Seal 4 | 1 |
| 1 | 39P-241A6-00-00 | . .Seal 6 | 1 |
| 1 | 2D1-2414P-00-00 | Damper, Plate 5 | 1 |
| 1 | 39P-13971-00-00 | Pipe, Fuel 1 | 1 |
| 1 | 90464-16005-00 | Clamp | 1 |
| 1 | 5GK-2118K-00-00 | Label, Caution | 1 |
| 5SL-2413B-00-00 | Emblem | ||
| 0 | 39P-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 |
| 0 | 90445-11418-00 | Hose (L18) FOR CALIFORNIA | 0 |
| 0 | 95802-06010-00 | Bolt, Flange FOR CALIFORNIA | 0 |
| 0 | 39P-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 |
| 0 | 5YU-21639-00-00 | Damper 2 FOR CALIFORNIA | 0 |
| 0 | 92012-06020-00 | Bolt, Button Head FOR CALIFORNIA | 0 |
| 0 | 90480-14030-00 | Grommet FOR CALIFORNIA | 0 |
| 0 | 90387-065L7-00 | Collar FOR CALIFORNIA | 0 |
| 0 | 39P-24313-00-00 | Pipe 3 FOR CALIFORNIA | 0 |
| 0 | 2C0-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 |
| 0 | 90461-15139-00 | Clamp FOR CALIFORNIA | 0 |
| 0 | 90269-05005-00 | Rivet FOR CALIFORNIA | 0 |
| 0 | 39P-24314-00-00 | Pipe 4 FOR CALIFORNIA | 0 |
| 0 | 39P-1444J-00-00 | Pipe FOR CALIFORNIA | 0 |
| 0 | 39P-24216-00-00 | Stay FOR CALIFORNIA | 0 |
| 0 | 92012-06016-00 | Bolt, Button Head FOR CALIFORNIA | 0 |
| 0 | 90464-10125-00 | Clamp FOR CALIFORNIA | 0 |
| 0 | 5D0-2172W-00-00 | Cover FOR CALIFORNIA | 0 |
| 0 | 90269-07077-00 | Rivet FOR CALIFORNIA | 0 |
