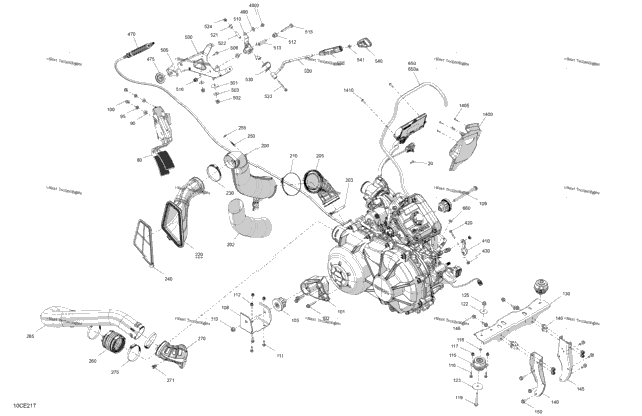

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 250000959 | Screw PT Type K-50 X 16 | 1 |
| 1 | 707003503 | Accelerator Pedal | 1 |
| 2 | 707000848 | Bushing | 2 |
| 2 | 250100031 | Push Nut | 2 |
| 2 | 233081416 | Hex. Flange Nut M8 | 2 |
| 1 | 707002636 | Engine Mount | 1 |
| 3 | 207584544 | Hex. Flange Screw M8 X 45, Scotch Grip | 3 |
| 2 | 707002915 | Vibration Damper | 2 |
| 1 | 707002869 | Engine Support | 1 |
| 1 | 230603546 | Hex. Flange Screw M10 X 135 | 1 |
| 1 | 233201436 | Hex. Flange Elastic Nut M10 | 1 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 2 | 707002590 | Rubber Mount | 2 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 293300215 | O-Ring | 2 |
| 2 | 207686544 | Hex. Flange Screw, M8 X 65 | 2 |
| 2 | 250200158 | Flat Washer M8 | 2 |
| 2 | 250200180 | Flat Washer M8 | 2 |
| 1 | 707002290 | Rear Link Bracket | 1 |
| 1 | 707003338 | LH Rear Engine Support | 1 |
| 1 | 707003340 | RH Rear Engine Support | 1 |
| 6 | 207582046 | Hex Flange Screw M8 X 20 | 6 |
| 6 | 233281416 | Hex. Elastic Flange Nut M8 | 6 |
| 1 | 706600398 | CVT Cooling Duct | 1 |
| 1 | 706600363 | Acoustic Insulation | 1 |
| 1 | 514052924 | Norma Clamp | 1 |
| 1 | 706600395 | Duct Fitting | 1 |
| 1 | 706600084 | Flexible Adaptor | 1 |
| 1 | 293650091 | Norma Clamp | 1 |
| 1 | 706600419 | CVT Filter | 1 |
| 1 | 250000760 | Torx Screw Truss Head K50X20 T20 | 1 |
| 1 | 250200025 | Washer M5 | 1 |
| 1 | 707002573 | Duct Fitting | 1 |
| 1 | 706600396 | CVT Cooling Duct | 1 |
| 1 | 706600397 | Duct Fitting | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 3 | 293650091 | Norma Clamp | 3 |
| 1 | 707002891 | Clutch Lever | 1 |
| 1 | 207663544 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 707002875 | Shift Lever Cable | 1 |
| 1 | 293720109 | Grommet | 1 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 234001410 | Flat Washer 10 mm | 1 |
| 1 | 707003601 | Lever Support | 1 |
| 1 | 250200158 | Flat Washer M8 | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 1 | 707002038 | Cable Support | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 1 | 707002268 | Lower Shifter Arm | 1 |
| 2 | 293900001 | Venturi Bushing | 2 |
| 1 | 707003445 | Bushing | 1 |
| 1 | 207686044 | Hex. Flange Screw M8 x 60 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 707002374 | Shifter Arm | 1 |
| 2 | 707000869 | Flanged Bushing | 2 |
| 1 | 707001376 | Bushing | 1 |
| 1 | 207665044 | Hex. Flange Screw M6 X 50 | 1 |
| 1 | 707000750 | Lever Arm Spring | 1 |
| 1 | 707003211 | Lever Trim | 1 |
| 1 | 232180491 | Hex. Jam Nut M8 | 1 |
| 1 | 707001899 | Shifting Arm Cover | 1 |
| 1 | 219704534 | Hose 6.35MM ID Includes 650 to 650a | 1 |
| 1 | 219704534 | Hose 6.35MM ID | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 1 | 707901206 | Module Support | 1 |
| 4 | 250000759 | Torx Truss Pt K40 X 16 | 4 |
| 2 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 2 |
