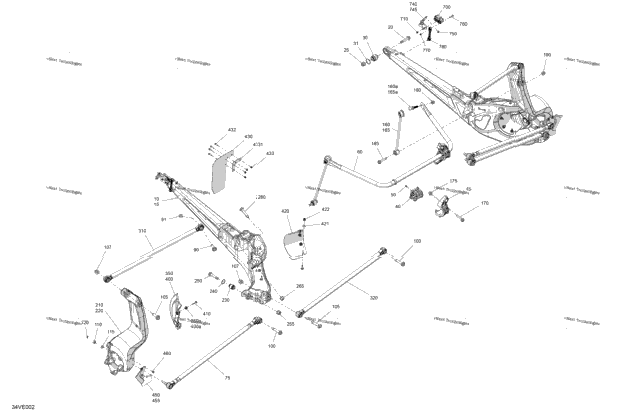

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 706006127 | Deep Black, LH Rear Suspension Arm | 1 |
| 1 | 706006128 | Deep Black, RH Rear Suspension Arm | 1 |
| 2 | 250001175 | Hex. Flange Screw Din.6921 M14X2X70 | 2 |
| 2 | 250001166 | Hex. Flange Elastic Nut M14 | 2 |
| 2 | 706005389 | Ball Joint | 2 |
| 2 | 293370166 | Retaining Ring | 2 |
| 2 | 706005418 | Stabilizer Bar Bushing | 2 |
| 2 | 706004846 | Clamp | 2 |
| 2 | 408200700 | Grease Fitting | 2 |
| 1 | 706005757 | Stabilizer Bar Ass'y | 1 |
| 2 | 706005030 | Central Suspension Arm Ass'y | 2 |
| 4 | 250001175 | Hex. Flange Screw Din.6921 M14X2X70 | 4 |
| 4 | 250001166 | Hex. Flange Elastic Nut M14 | 4 |
| 2 | 250100239 | Hex Nut M12 | 2 |
| 2 | 706200281 | Hardened Washer | 2 |
| 2 | 211400017 | Cotter Pin | 2 |
| 1 | 706005360 | LH Stabilizer Link Bar Includes 160 to 160a | 1 |
| 2 | 706002135 | Radial Joint | 2 |
| 1 | 706005361 | RH Stabilizer Link Bar Includes 165 to 165a | 1 |
| 4 | 250001233 | Screw Hex Flange M12 X 50 | 4 |
| 4 | 250001195 | Elastic Flange Nut M12 | 4 |
| 2 | 250001195 | Elastic Flange Nut M12 | 2 |
| 2 | 250000857 | Flange Screw M12 X 60 | 2 |
| 1 | 715010178 | Deep Black, LH Rear Knuckle Ass'y Includes 210 to 210c | 1 |
| 2 | 706004401 | Ball Joint Not Shown | 2 |
| 2 | 293370165 | Retaining Ring Not Shown | 2 |
| 1 | 715010179 | Deep Black, RH Rear Knuckle Ass'y Includes 220 to 220d | 1 |
| 4 | 706004401 | Ball Joint | 4 |
| 4 | 293370165 | Retaining Ring | 4 |
| 2 | 706005031 | Upper Suspension Arm Ass'y | 2 |
| 2 | 706005032 | Lower Suspension Arm Ass'y | 2 |
| 1 | 706004631 | LH Rear Guard Includes 350 to 350a | 1 |
| 706004805 | Spacer | ||
| 1 | 706004632 | RH Rear Guard Includes 400 to 400a | 1 |
| 4 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip | 4 |
| 2 | 706005486 | CV Joint Guard | 2 |
| 8 | 234082670 | Stainless Steel Flat Washer | 8 |
| 8 | 233281464 | Elastic Flange Nut M8 | 8 |
| 2 | 706006095 | Rear Deflector | 2 |
| 2 | 706006096 | Retaining Plate | 2 |
| 8 | 207662554 | Hex. Flange Screw M6 X 25 | 8 |
| 8 | 233261466 | Hex. Flange Elastic Nut M6 | 8 |
| 1 | 706004703 | LH Deflector | 1 |
| 1 | 706004704 | RH Deflector | 1 |
| 6 | 207561044 | Flange Screw M6 X 10, Scotch Grip | 6 |
| 2 | 710005235 | Suspension Position Sensor | 2 |
| 4 | 207551056 | Hex. Flange Screw M5x10 | 4 |
| 1 | 706004723 | LH Rear Sensor Support | 1 |
| 1 | 706004724 | RH Rear Sensor Support | 1 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 4 |
| 4 | 250000842 | Stainless, Torx Screw M6 X 30 | 4 |
| 4 | 232561494 | Elastic Stop Nut M6 | 4 |
| 2 | 706203429 | Link | 2 |
