Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

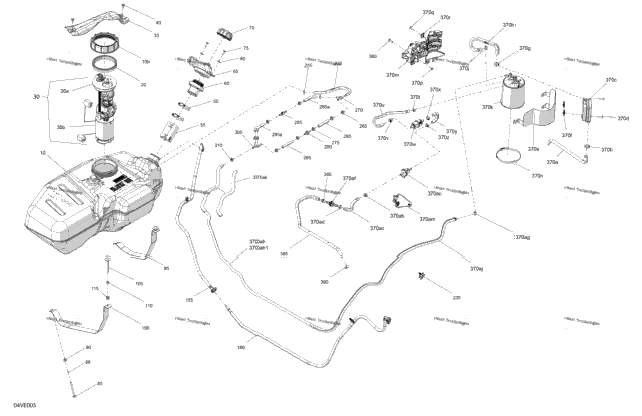

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 709001204 | Fuel Tank Ass'y Includes 10 to 10b | 1 |
| 1 | 250100062 | Special Nut M130 | 1 |
| 1 | 293250514 | Pump Gasket | 1 |
| 1 | 709001057 | Fuel Pump Includes 30 to 30b | 1 |
| 1 | 270600113 | Fuel Filter | 1 |
| 1 | 715900424 | Fuel Sender | 1 |
| 1 | 707901204 | Connector Guard | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 2 | 293650081 | Norma Clamp | 2 |
| 1 | 709001277 | Filler Neck Hose | 1 |
| 1 | 709001220 | Filler Neck | 1 |
| 1 | 709001332 | Neck Support | 1 |
| 1 | 709000868 | Fuel Cap | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 2 | 207687044 | Hex. Flange Screw M8 X 70 | 2 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 709001290 | RH Retaining Strap | 1 |
| 1 | 709001284 | LH Retaining Strap | 1 |
| 2 | 250001199 | Carriage Bolt M8 X 75 | 2 |
| 1 | 709001209 | Fuel Tank Hose | 1 |
| 1 | 709001320 | Fuel Tank Hose | 1 |
| 1 | 709000571 | Hose Support | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 1 | 709001333 | Front Formed Drain Hose | 1 |
| 1 | 293710059 | Y-Fitting | 1 |
| 8 | 293650042 | Oetiker Clamp | 8 |
| 2 | 219704611 | Hose 6.35Mm 5000Mm Long Includes 280 to 280a | 2 |
| 1 | 219704611 | Hose 6.35Mm 5000Mm Long | 1 |
| 1 | 513033469 | Check Valve | 1 |
| 1 | 275500398 | Check Valve | 1 |
| 2 | 219704611 | Hose 6.35Mm 5000Mm Long Includes 295 to 295a | 2 |
| 3 | 250000712 | Torx Screw M6 X 20 | 3 |
| 1 | 709001243 | Formed Hose | 1 |
| 1 | 293650186 | Oetiker Clamp | 1 |
| 1 | 709000524 | Air Filter | 1 |
| 2 | 250000712 | Torx Screw M6 X 20 | 2 |
| 2 | 250100208 | Panel Nut M6 X 1.0 | 2 |
| 1 | 709001242 | Formed Hose | 1 |
| 1 | 293650053 | Crimp Clamp | 1 |
| 1 | 709001294 | Vapor Canister | 1 |
| 1 | 709001296 | Canister Support | 1 |
| 1 | 293650054 | Tridon Clamp | 1 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 3 | 250100208 | Panel Nut M6 X 1.0 | 3 |
| 1 | 709001488 | Module Support | 1 |
| 1 | 709000853 | Formed Hose | 1 |
| 1 | 293650046 | Oetiker Clamp | 1 |
| 1 | 513034047 | Fuel Filter | 1 |
| 1 | 293650047 | Crimp Clamp, 15.3-706R | 1 |
| 1 | 709000857 | Formed Hose | 1 |
| 1 | 709000443 | Bleed Valve | 1 |
| 1 | 709001268 | Formed Hose | 1 |
| 1 | 275500941 | Check Valve | 1 |
| 1 | 219704611 | Hose 6.35Mm 5000Mm Long Includes 370ah to 370ah1 | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 710008829 | Module Wiring Harness | 1 |
| 1 | 293650321 | Spring Clamp | 1 |
| 1 | 709001330 | Formed Charcoal Canister Hose | 1 |
| 1 | 293650214 | Norma Spring Clamp | 1 |
