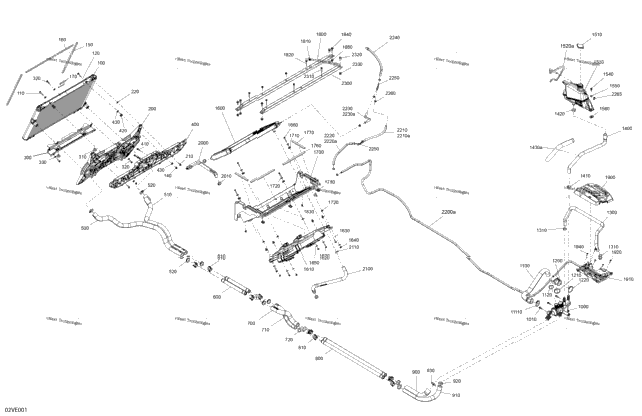

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 709201058 | Front Radiator | 1 |
| 2 | 207663054 | Hex. Flange Screw M6 X 30 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 2 | 233261466 | Hex. Flange Elastic Nut M6 | 2 |
| 2 | 219704386 | Seal 3000MM Long | 2 |
| 1 | 219704386 | Seal 3000MM Long | 1 |
| 1 | 709201072 | Cooling Fan Ass'y | 1 |
| 4 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 4 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 1 | 709201117 | Front Lower Radiator Support | 1 |
| 2 | 709200948 | Grommet | 2 |
| 1 | 709201109 | Upper Front Radiator Support | 1 |
| 3 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 | 3 |
| 2 | 293720130 | Overmolded Grommet | 2 |
| 4 | 710004749 | Shoulder Bushing | 4 |
| 1 | 709201501 | Radiator Hose IN | 1 |
| 1 | 709201502 | Radiator Hose OUT | 1 |
| 4 | 293650332 | Crimp Clamp | 4 |
| 2 | 709201138 | Tube | 2 |
| 4 | 275500963 | Retainer | 4 |
| 1 | 709201503 | Radiator Hose | 1 |
| 1 | 709201504 | Radiator Hose | 1 |
| 2 | 709200657 | Heater Tubing | 2 |
| 1 | 709201505 | Thermostat Hose OUT | 1 |
| 1 | 709201506 | Thermostat Hose IN | 1 |
| 3 | 293650332 | Crimp Clamp | 3 |
| 1 | 293650254 | Oetiker Gear Clamp | 1 |
| 1 | 709201105 | Thermostat Housing | 1 |
| 3 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 3 |
| 1 | 709201508 | Engine Hose OUT | 1 |
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 1 | 293650332 | Crimp Clamp | 1 |
| 1 | 709201090 | Engine Hose IN | 1 |
| 1 | 293650322 | Crimp Clamp | 1 |
| 1 | 709201083 | Hose | 1 |
| 2 | 509000442 | Oeticker Gear Clamp, 25.6-706R | 2 |
| 1 | 709201082 | Coolant Tank Hose | 1 |
| 1 | 509000442 | Oeticker Gear Clamp, 25.6-706R | 1 |
| 1 | 293650165 | Oetiker Gear Clamp | 1 |
| 1 | 219704402 | Tubing 25 MM 1000MM Long | 1 |
| 1 | 709201003 | Coolant Tank | 1 |
| 1 | 709200207 | Radiator Pressure Cap | 1 |
| 1 | 219704389 | Polyurethane Hose 4000MM Long | 1 |
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 1 |
| 1 | 250200164 | Flat washer M6 | 1 |
| 1 | 250100208 | Panel Nut M6 X 1.0 | 1 |
| 1 | 709201075 | Rear Radiator | 1 |
| 1 | 709201074 | Cooling Fan Ass'y | 1 |
| 4 | 250200082 | Flat Washer | 4 |
| 4 | 233261466 | Hex. Flange Elastic Nut M6 | 4 |
| 4 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 | 4 |
| 1 | 709201110 | RH Rear Radiator Support | 1 |
| 4 | 293720130 | Overmolded Grommet | 4 |
| 8 | 710004749 | Shoulder Bushing | 8 |
| 3 | 250100208 | Panel Nut M6 X 1.0 | 3 |
| 1 | 709201218 | Square Tube | 1 |
| 3 | 250100199 | Insert Half Hex Body M6 x 1.0 | 3 |
| 2 | 207664044 | Hex. Flange Screw M6 X 40 | 2 |
| 4 | 207682044 | Hex. Flange Screw M8 X 20 | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 1 | 705016102 | Cover | 1 |
| 1 | 705016032 | Hose Support | 1 |
| 5 | 250000959 | Screw PT Type K-50 X 16 | 5 |
| 1 | 250000959 | Screw PT Type K-50 X 16 | 1 |
| 1 | 709201084 | Hose | 1 |
| 1 | 709201086 | Hose | 1 |
| 1 | 219704547 | Hose 6,35 Mm Id 4000Mm Long | 1 |
| 1 | 219704547 | Hose 6,35 Mm Id 4000Mm Long Includes 2210 to 2210a | 1 |
| 1 | 219704547 | Hose 6,35 Mm Id 4000Mm Long Includes 2220 to 2220a | 1 |
| 1 | 219704547 | Hose 6,35 Mm Id 4000Mm Long Includes 2230 to 2230a | 1 |
| 1 | 709201234 | Coolant Tank Hose | 1 |
| 2 | 293710059 | Y-Fitting | 2 |
| 9 | 293650025 | Oetiker Gear Clamp | 9 |
| 1 | 293650140 | Oetiker Clamp | 1 |
| 1 | 709201220 | Square Tube | 1 |
| 3 | 207664044 | Hex. Flange Screw M6 X 40 | 3 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
