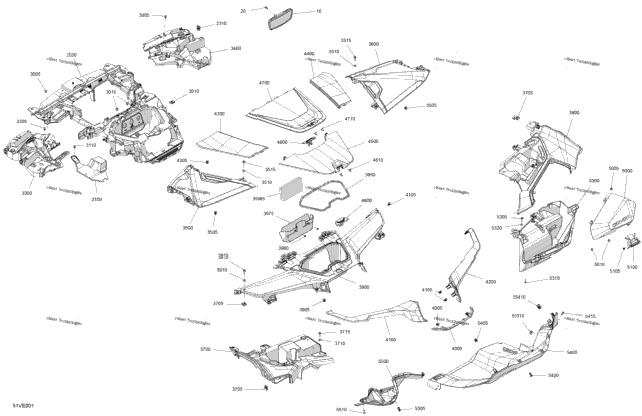

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 707900502 | Central Mirror | 1 |
| 1 | 250000767 | Torx Truss Screw M6 X 12 | 1 |
| 1 | 707900951 | Central Dashboard Support | 1 |
| 5 | 293150292 | Black, Pop Rivet 3/16 X ,550 | 5 |
| 9 | 250100208 | Panel Nut M6 X 1.0 | 9 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 707901228 | Wiring Harness Guard | 1 |
| 1 | 293150292 | Black, Pop Rivet 3/16 X ,550 | 1 |
| 1 | 707901019 | LH Front Dashboard Support | 1 |
| 6 | 293150292 | Black, Pop Rivet 3/16 X ,550 | 6 |
| 6 | 250100208 | Panel Nut M6 X 1.0 | 6 |
| 1 | 707901020 | RH Front Dashboard Support | 1 |
| 1 | 707900914 | LH Front Dashboard Panel | 1 |
| 6 | 517306478 | Clip | 6 |
| 6 | 234062670 | Stainless Steel Flat Washer | 6 |
| 6 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 | 6 |
| 1 | 707900915 | RH Front Dashboard Panel | 1 |
| 1 | 715010386 | LH Front Dashboard Kit | 1 |
| 10 | 250100208 | Panel Nut M6 X 1.0 | 10 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 4 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 | 4 |
| 1 | 707900948 | RH Rear Dashboard | 1 |
| 1 | 715009615 | Central Dashboard Kit | 1 |
| 1 | 517306478 | Clip | 1 |
| 8 | 234062670 | Stainless Steel Flat Washer | 8 |
| 8 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 | 8 |
| 1 | 293250587 | Cover Gasket | 1 |
| 1 | 707901158 | Storage Compartment | 1 |
| 2 | 732610072 | Push Nut | 2 |
| 1 | 264000135 | Sealed Compartment Foam | 1 |
| 1 | 707901098 | Neo Yellow, Front Central Trim | 1 |
| 2 | 517306478 | Clip | 2 |
| 1 | 707901099 | Neo Yellow, LH Panel Trim | 1 |
| 8 | 517306478 | Clip | 8 |
| 1 | 707901100 | Neo Yellow, RH Front Panel Trim | 1 |
| 1 | 707901106 | Neo Yellow, LH Central Panel Trim | 1 |
| 1 | 707901107 | Neo Yellow, RH Central Panel Trim | 1 |
| 1 | 707901108 | Neo Yellow, Central Box Cover | 1 |
| 1 | 707901049 | Latch Lid | 1 |
| 2 | 293730121 | Clip | 2 |
| 1 | 707901337 | Front Fuse Box Cover | 1 |
| 1 | 707900918 | Glove Box Cover | 1 |
| 1 | 707901055 | Glove Box Latch | 1 |
| 1 | 707901054 | Lower Glove Box | 1 |
| 2 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 | 2 |
| 3 | 250000958 | Panel Nut M5 X 0.8 | 3 |
| 5 | 250000959 | Screw PT Type K-50 X 16 | 5 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 707900973 | RH Interior Panel | 1 |
| 1 | 250100208 | Panel Nut M6 X 1.0 | 1 |
| 3 | 250000724 | Torx Screw M5 X 20 | 3 |
| 4 | 293150230 | Tuflok Plastic Rivet | 4 |
| 1 | 709402715 | Protective Trim | 1 |
| 5 | 293150230 | Tuflok Plastic Rivet | 5 |
| 1 | 250000721 | Torx Truss Screw M6 X 16 | 1 |
