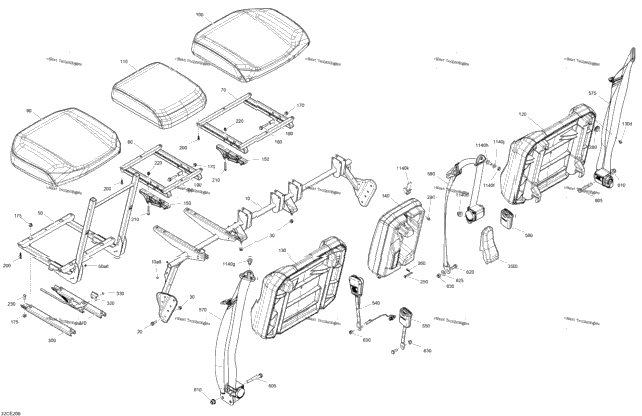

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 703501076 | Seat Member Includes 10 to 10a8 | 1 |
| 4 | 293150293 | Pop Rivet 3/16 X ,425 | 4 |
| 8 | 207682544 | Hex. Flange Screw M8 X 25 | 8 |
| 12 | 233281414 | Hex. Flange Elastic Nut M8 | 12 |
| 1 | 708001723 | Operator Seat Member Includes 50 to 50a7 | 1 |
| 75011200 | Steel Wire S6 .9mm HI-DEP Not Shown | ||
| 2 | 708002815 | Mid Seat Member | 2 |
| 3 | 708002821 | Passenger Seat Member | 3 |
| 2 | 708003234 | LH Seat Base Ass'y | 2 |
| 2 | 708003236 | RH Seat Base Ass'y | 2 |
| 2 | 708001928 | Central Cushion Ass'y | 2 |
| 3 | 708003249 | Backrest Ass'y | 3 |
| 1 | 708003248 | Backrest Ass'y Includes 130 to 130d | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 2 | 708003157 | Backrest Ass'y | 2 |
| 10 | 708002581 | Seat Base Pivot | 10 |
| 10 | 207684544 | Hex. Flange Screw M8 X 45 | 10 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 | 10 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 | 8 |
| 10 | 708003749 | Bushing | 10 |
| 1 | 250000760 | Torx Screw Truss Head K50X20 T20 | 1 |
| 10 | 207064544 | Hex. Screw M6 X 45 | 10 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 10 |
| 4 | 207182044 | Hex. Screw M8 X 20 | 4 |
| 4 | 250400069 | Pin | 4 |
| 4 | 269800431 | Hairpin Cotter | 4 |
| 8 | 517303756 | Grommet | 8 |
| 4 | 293830005 | Rubber Bumper | 4 |
| 1 | 708003314 | LH Seat Rail | 1 |
| 1 | 708003315 | RH Seat Rail | 1 |
| 1 | 708003672 | Seat Stopper | 1 |
| 2 | 293150293 | Pop Rivet 3/16 X ,425 | 2 |
| 1 | 708002293 | Cover | 1 |
| 1 | 708002331 | Driver Buckle | 1 |
| 2 | 708003163 | Middle Buckle | 2 |
| 3 | 708002329 | Passenger Buckle | 3 |
| 2 | 708003082 | LH Safety Belt | 2 |
| 2 | 708003200 | RH Safety Belt | 2 |
| 2 | 708003688 | Central Safety Belt | 2 |
| 8 | 207028046 | Hex. Screw M12 X 80 | 8 |
| 8 | 233221416 | Elastic Flange Nut M12 | 8 |
| 8 | 250001316 | Hex. Cap Screw 7/16'' X 1'' | 8 |
| 2 | 250200102 | Flat Washer M12 | 2 |
| 8 | 250100183 | Lock Nut Nylon 7/16 | 8 |
| 2 | 233221416 | Elastic Flange Nut M12 | 2 |
| 2 | 250100183 | Lock Nut Nylon 7/16 | 2 |
| 4 | 708002504 | Safety Belt screw | 4 |
| 2 | 708000890 | Safety Belt Screw | 2 |
| 2 | 708000891 | Position Washer | 2 |
| 2 | 269501487 | Latch | 2 |
