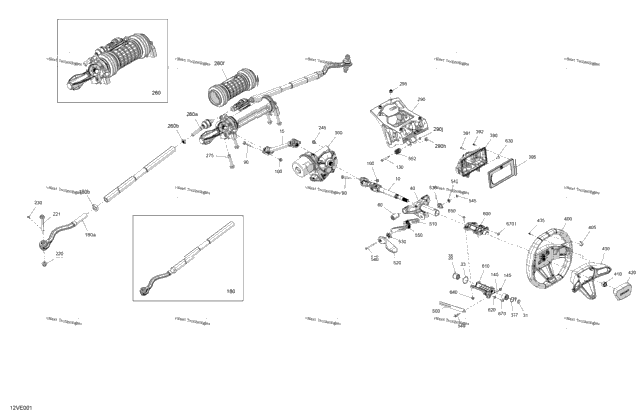

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 709402949 | Upper Steering Axle | 1 |
| 1 | 709402950 | Lower Steering Axle | 1 |
| 1 | 293300144 | O-Ring | 1 |
| 1 | 709402670 | O-Ring Seal | 1 |
| 2 | 709402642 | Steering Bushing | 2 |
| 1 | 709402668 | External Retaining Ring | 1 |
| 1 | 709402989 | Steering Wheel Support | 1 |
| 2 | 706005404 | Suspension Arm Bushing | 2 |
| 3 | 250001021 | Hex. Flange Screw M8 X 35 | 3 |
| 3 | 233281416 | Hex. Elastic Flange Nut M8 | 3 |
| 1 | 709403007 | Socket Head Shoulder Screw S.Grip | 1 |
| 1 | 250100237 | Hex. Nut M6 X 1.0 Din 980V | 1 |
| 1 | 269500806 | Cap | 1 |
| 2 | 709403204 | Tie Rod Ass'y Includes 180 to 180b | 2 |
| 1 | 709403205 | Ball Joint | 1 |
| 1 | 715900828 | Hex Jam Nut M24 | 1 |
| 2 | 250001195 | Elastic Flange Nut M12 | 2 |
| 2 | 250000864 | Hex Cap Screw M12 X 95 | 2 |
| 2 | 211400017 | Cotter Pin | 2 |
| 3 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 3 |
| 1 | 709403206 | Rack And Pinion Steering Includes 260 to 260f | 1 |
| 1 | 715900783 | Inner Ball Joint | 1 |
| 1 | 715900784 | Hex Jam Nut | 1 |
| 1 | 709402442 | Boot Rack | 1 |
| 4 | 250001203 | Hex Flange Screw Din.6921 M12X1.75X6 | 4 |
| 1 | 709402622 | Power Steering Support Includes 290 to 290j | 1 |
| 2 | 233701400 | Hexagonal Nut | 2 |
| 1 | 232061404 | Hexagonal Nut M6 | 1 |
| 4 | 233281434 | Hex. Flange Elastic Nut M8 | 4 |
| 1 | 709403211 | Power Steering Ass'y | 1 |
| 1 | 709402651 | Gauge Support | 1 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 4 | 250001034 | Torx-Truss Screw K40 X 10 | 4 |
| 1 | 709402688 | Gauge Trim | 1 |
| 1 | 709402549 | Steering Wheel | 1 |
| 2 | 709402803 | Upper Steering Wheel Trim | 2 |
| 1 | 232511414 | Elastic Lock Nut M16 | 1 |
| 1 | 709402614 | Central Steering Wheel Trim | 1 |
| 1 | 709402711 | Steering Wheel Trim | 1 |
| 10 | 250001234 | Screw Plastite Torx K30 X 12 | 10 |
| 1 | 709402984 | Lock Plate | 1 |
| 6 | 709402983 | Lock Plate | 6 |
| 1 | 709403259 | Latch Lever | 1 |
| 1 | 709402639 | Locking Cam | 1 |
| 1 | 709402658 | Latch Stopper | 1 |
| 1 | 207267044 | Hex. Screw S.Grip M6 X 70 | 1 |
| 1 | 709403015 | Thrust Washer | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 1 | 709402676 | Socket Head Shoulder Screw | 1 |
| 1 | 709402660 | Washer | 1 |
| 1 | 709402709 | Lower Spacer | 1 |
| 1 | 709402643 | Upper Module Housing | 1 |
| 1 | 709402644 | Under Module Housing | 1 |
| 8 | 232862412 | Square Nut M6 | 8 |
| 4 | 250000534 | Tork Screw M6 X 16 | 4 |
| 4 | 233261494 | Hex. Flange Elastic Nut M6 | 4 |
| 4 | 250000758 | Torx Screw M6 X 25 | 4 |
| 4 | 250000984 | Hex. Torx Screw M6 X 20 | 4 |
