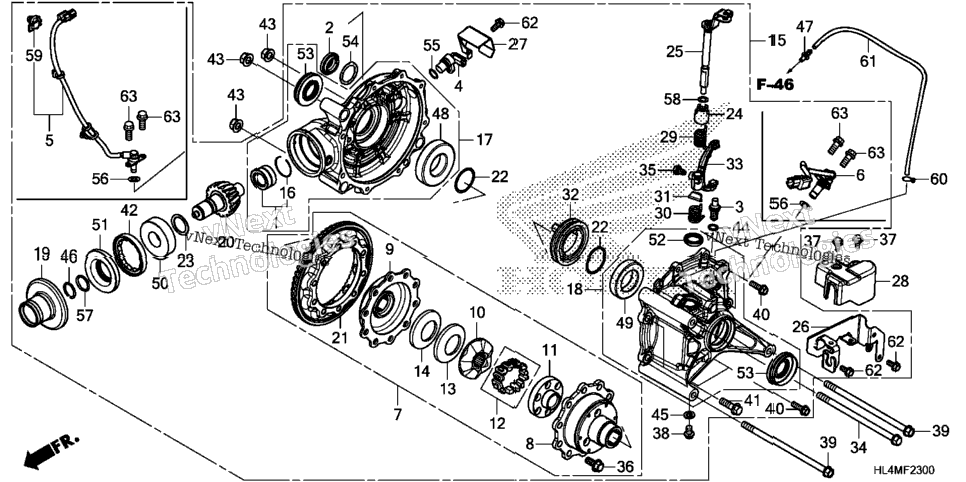

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 06911-HL4-A00 | BEARING SET, NEEDLE | 1 |
| 1 | 12361-035-000 | CAP, TAPPET ADJUSTING HOLE | 1 |
| 12361-300-000 | CAP, VALVE ADJ. | ||
| 12361-371-980 | CAP, VALVE ADJ. | ||
| 1 | 35600-HN7-003 | SWITCH ASSY., NEUTRAL | 1 |
| 1 | 37700-KZR-601 | SENSOR ASSY., SPEED (TDK-EPC) | 1 |
| 1 | 38510-HL4-F41 | SENSOR, R. RR. WHEEL SPEED | 1 |
| 1 | 38515-HL4-F41 | SENSOR, L. RR. WHEEL SPEED | 1 |
| 1 | 41100-HL4-A01 | DIFFERENTIAL ASSY., RR. | 1 |
| 1 | 41111-HL4-A01 | CASE, RR. DIFFERENTIAL | 1 |
| 1 | 41112-HL4-A01 | CAP, RR. DIFFERENTIAL CASE | 1 |
| 1 | 41131-HL4-A01 | CAM, FACE (68) (A) | 1 |
| 1 | 41132-HL4-A01 | CAM, FACE (68) (B) | 1 |
| 1 | 41140-HL4-A01 | FOLLOWER SET, CAM | 1 |
| 1 | 41151-HL4-A01 | SHIM A (1.3) | 1 |
| 1 | 41152-HL4-A01 | SHIM B (1.4) | 1 |
| 1 | 41153-HL4-A01 | SHIM C (1.5) | 1 |
| 1 | 41154-HL4-A01 | SHIM D (1.6) | 1 |
| 1 | 41155-HL4-A01 | SHIM E (1.7) | 1 |
| 1 | 41161-HL4-A01 | SPRING, DIFFERENTIAL SIDE CONED | 1 |
| 1 | 41300-HL4-F41 | GEAR ASSY., RR. FINAL | 1 |
| 1 | 41305-HL4-A00 | RING, STOPPER | 1 |
| 1 | 41311-HL4-F41 | CASE SUB-ASSY., RR. FINAL GEAR | 1 |
| 1 | 41312-HL4-F41 | COVER SUB-ASSY., RR. FINAL GEAR | 1 |
| 1 | 41330-HL4-A00 | JOINT, RR. PINION | 1 |
| 1 | 41421-HL4-A00 | GEAR, RR. PINION (16T) | 1 |
| 1 | 41431-HL4-A00 | GEAR, RR. RING (54T) | 1 |
| 2 | 41447-HL4-A00 | SHIM A, FINAL GEAR (0.64) | 2 |
| 2 | 41448-HL4-A00 | SHIM B, FINAL GEAR (0.70) | 2 |
| 2 | 41449-HL4-A00 | SHIM C, FINAL GEAR (0.76) | 2 |
| 2 | 41450-HL4-A00 | SHIM D, FINAL GEAR (0.82) | 2 |
| 2 | 41451-HL4-A00 | SHIM E, FINAL GEAR (0.88) | 2 |
| 2 | 41452-HL4-A00 | SHIM F, FINAL GEAR (0.94) | 2 |
| 2 | 41453-HL4-A00 | SHIM G, FINAL GEAR (1.00) | 2 |
| 2 | 41454-HL4-A00 | SHIM H, FINAL GEAR (1.06) | 2 |
| 2 | 41455-HL4-A00 | SHIM I, FINAL GEAR (1.12) | 2 |
| 2 | 41456-HL4-A00 | SHIM J, FINAL GEAR (1.18) | 2 |
| 2 | 41457-HL4-A00 | SHIM K, FINAL GEAR (1.24) | 2 |
| 2 | 41458-HL4-A00 | SHIM L, FINAL GEAR (1.30) | 2 |
| 2 | 41459-HL4-A00 | SHIM M, FINAL GEAR (1.36) | 2 |
| 2 | 41460-HL4-A00 | SHIM N, FINAL GEAR (1.42) | 2 |
| 2 | 41461-HL4-A00 | SHIM O, FINAL GEAR (1.48) | 2 |
| 2 | 41462-HL4-A00 | SHIM P, FINAL GEAR (1.54) | 2 |
| 2 | 41463-HL4-A00 | SHIM Q, FINAL GEAR (1.60) | 2 |
| 1 | 41450-MG9-000 | SHIM A, PINION GEAR (1.32) | 1 |
| 1 | 41451-MG9-000 | SHIM B, PINION GEAR (1.38) | 1 |
| 1 | 41452-MG9-000 | SHIM C, PINION GEAR (1.44) | 1 |
| 1 | 41453-MG9-000 | SHIM D, PINION GEAR (1.50) | 1 |
| 1 | 41454-MG9-000 | SHIM E, PINION GEAR (1.56) | 1 |
| 1 | 41455-MG9-000 | SHIM F, PINION GEAR (1.62) | 1 |
| 1 | 41456-MG9-000 | SHIM G, PINION GEAR (1.68) | 1 |
| 1 | 41607-HL4-A00 | COLLAR, RR. DIFFERENTIAL LOCK | 1 |
| 1 | 41630-HL4-A00 | SHAFT, RR. DIFFERENTIAL LOCK | 1 |
| 1 | 41710-HL4-A00 | STAY, RR. DIFFERENTIAL LOCK | 1 |
| 1 | 41721-HL4-A00 | COVER, RR. SPEED SENSOR | 1 |
| 1 | 41727-HL4-A00 | COVER, RR. DIFFERENTIAL LOCK ARM | 1 |
| 1 | 41803-HL4-A00 | SPRING A, RR. DIFFERENTIAL LOCK | 1 |
| 1 | 41804-HL4-A00 | SPRING B, RR. DIFFERENTIAL LOCK | 1 |
| 1 | 41805-HL4-A00 | STOPPER, RR. DIFFERENTIAL LOCK SHAFT | 1 |
| 1 | 41827-HL4-A00 | SLEEVE, RR. DIFFERENTIAL LOCK | 1 |
| 1 | 41850-HL4-A00 | SWINGARM, DIFFERENTIAL LOCK | 1 |
| 1 | 90101-KCW-850 | BOLT, ENGINE HANGER (10X188) | 1 |
| 1 | 90102-HL4-A00 | BOLT, SPECIAL (6MM) | 1 |
| 10 | 90104-HL4-A00 | BOLT, FLANGE (10X23) | 10 |
| 2 | 90106-MM9-000 | BOLT, FR. FENDER FIXING | 2 |
| 1 | 90109-371-000 | BOLT, SEALING (8MM) | 1 |
| 90117-166-600 | BOLT, FLANGE (10X200) | ||
| 95800-10200-00 | BOLT, FLANGE (10X200) | ||
| 6 | 90133-HP5-600 | BOLT, FLANGE (8X27) | 6 |
| 2 | 90134-HP5-600 | BOLT, FLANGE (10X35) | 2 |
| 1 | 90242-HL1-A00 | NUT, LOCK (72MM) | 1 |
| 3 | 90305-HC0-770 | NUT, SELF-LOCK (10MM) | 3 |
| 1 | 90443-KR0-000 | WASHER, NEUTRAL SWITCH | 1 |
| 1 | 90471-580-000 | WASHER (8MM) | 1 |
| 1 | 90601-ZG3-000 | CLIP, PISTON PIN | 1 |
| 1 | 90652-HF7-003 | JOINT, BREATHER TUBE | 1 |
| 1 | 91056-HL4-A01 | BEARING, RADIAL BALL (6208) | 1 |
| 1 | 91057-HL4-A01 | BEARING, RADIAL BALL (6008) | 1 |
| 1 | 91064-HL4-A01 | BEARING, RADIAL BALL (63/28) | 1 |
| 1 | 91251-HL3-A01 | OIL SEAL (36X75X8) | 1 |
| 1 | 91252-HL4-A01 | OIL SEAL (24X32X5) | 1 |
| 2 | 91254-HL4-F42 | OIL SEAL (53X70X7) | 2 |
| 1 | 91302-001-020 | O-RING (30.8MM) (Honda Code 0001065) | 1 |
| 1 | 91303-KF0-003 | O-RING (14.8X2.4) (ARAI) | 1 |
| 2 | 91306-MG3-000 | O-RING (1.5X9.5) | 2 |
| 2 | 91306-105-690 | O-RING (1.5X9.5) | 2 |
| 1 | 91312-KM9-003 | O-RING (24X3) | 1 |
| 1 | 91352-GAZ-930 | O-RING (8.5X1.5) (L. SIDE ONLY) | 1 |
| 1 | 91565-S3Y-003 | CLIP, CONNECTOR | 1 |
| 1 | 95002-35000 | CLIP, TUBE (C6.5) | 1 |
| 1 | 95005-35001-30M | BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M) | 1 |
| 3 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 3 |
| 4 | 96001-06014-00 | BOLT, FLANGE (6X14) | 4 |
