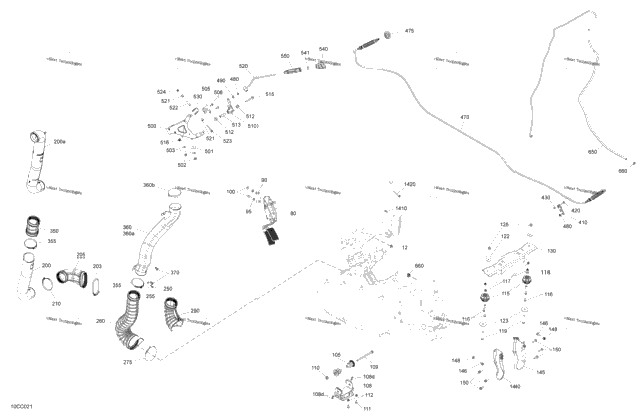

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 293650214 | Norma Spring Clamp | 1 |
| 1 | 707001599 | Accelerator Pedal | 1 |
| 2 | 707000848 | Bushing | 2 |
| 2 | 250100031 | Push Nut | 2 |
| 2 | 233081436 | Hex. Flange Nut | 2 |
| 2 | 707001169 | Vibration Damper | 2 |
| 1 | 707003061 | Vibration Damper Includes 108 to 108d | 1 |
| 4 | 390402200 | Pop Rivet 3/16" | 4 |
| 1 | 230603546 | Hex. Flange Screw M10 X 135 | 1 |
| 1 | 233201436 | Hex. Flange Elastic Nut M10 | 1 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 2 | 707002590 | Rubber Mount | 2 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 293300215 | O-Ring | 2 |
| 2 | 207686544 | Hex. Flange Screw, M8 X 65 | 2 |
| 2 | 250200158 | Flat Washer M8 | 2 |
| 2 | 250200180 | Flat Washer M8 | 2 |
| 1 | 707002290 | Rear Link Bracket | 1 |
| 1 | 707003338 | LH Rear Engine Support | 1 |
| 1 | 707003340 | RH Rear Engine Support | 1 |
| 6 | 207582046 | Hex Flange Screw M8 X 20 | 6 |
| 6 | 233281416 | Hex. Elastic Flange Nut M8 | 6 |
| 1 | 706600220 | Duct Includes 200 to 200a | 1 |
| 1 | 706600326 | Front CVT Cooling Duct | 1 |
| 1 | 514052924 | Norma Clamp | 1 |
| 1 | 706600249 | Flexible Adapter | 1 |
| 1 | 293650091 | Norma Clamp | 1 |
| 2 | 250000760 | Torx Screw Truss Head K50X20 T20 | 2 |
| 2 | 250200025 | Washer M5 | 2 |
| 1 | 706600198 | Flexible Adapter | 1 |
| 1 | 514052983 | Norma Gear Clamp | 1 |
| 1 | 706600199 | Air Baffle | 1 |
| 1 | 706600204 | Flexible Join | 1 |
| 4 | 293650091 | Norma Clamp | 4 |
| 3 | 706600279 | Pipe Ass'y Includes 360 to 360b | 3 |
| 1 | 706600279 | Pipe Ass'y | 1 |
| 1 | 293000123 | Cap | 1 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 1 | 707000911 | Lever | 1 |
| 1 | 207663544 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 707002725 | Shift Lever Cable | 1 |
| 1 | 293720109 | Grommet | 1 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 234001410 | Flat Washer 10 mm | 1 |
| 1 | 707002372 | Shifter Bracket | 1 |
| 1 | 250200158 | Flat Washer M8 | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 1 | 707002038 | Cable Support | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 1 | 707002268 | Lower Shifter Arm | 1 |
| 2 | 293900001 | Venturi Bushing | 2 |
| 1 | 707001863 | Internal Bushing | 1 |
| 1 | 207686044 | Hex. Flange Screw M8 x 60 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 707002374 | Shifter Arm | 1 |
| 2 | 707000869 | Flanged Bushing | 2 |
| 1 | 707001376 | Bushing | 1 |
| 1 | 207665044 | Hex. Flange Screw M6 X 50 | 1 |
| 1 | 707000750 | Lever Arm Spring | 1 |
| 1 | 707003211 | Lever Trim | 1 |
| 1 | 232180491 | Hex. Jam Nut M8 | 1 |
| 1 | 707001899 | Shifting Arm Cover | 1 |
| 1 | 219704439 | Hose 1/4 1000Mm Long - Call Your Local BRP Dealership | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 2 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 2 |
| 1 | 250000213 | Hex. Flange Screw M6 X 1.0 X 45 | 1 |
