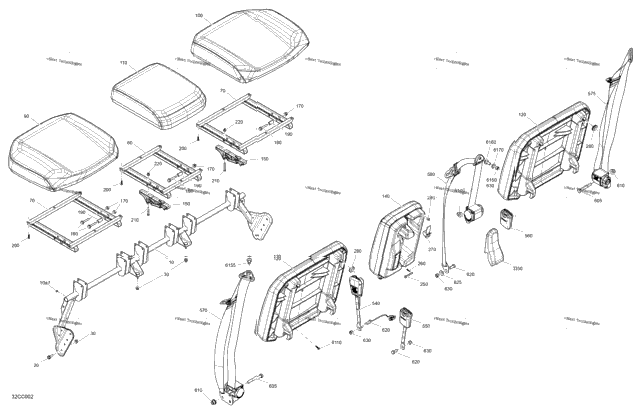

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708002817 | Seat Member Seat Member | 1 |
| 1 | 390402200 | Pop Rivet 3/16" Pop Rivet 3/16 | 1 |
| 1 | 207682544 | Hex. Flange Screw M8 X 25 Hex. Flanged Screw M8 X 25 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 Hex. Flanged Elastic Nut M8 | 1 |
| 1 | 708002815 | Mid Seat Member Mid Seat Member | 1 |
| 1 | 708002821 | Passenger Seat Member Passenger Seat Member | 1 |
| 1 | 708002544 | LH Cushion Ass'y LH Cushion Ass'y | 1 |
| 1 | 708001498 | RH Cushion Ass'y RH Cushion Ass'y | 1 |
| 1 | 708001629 | Central Cushion Ass'y Central Cushion Ass'y | 1 |
| 1 | 708001701 | Backrest Ass'y Backrest Ass'y | 1 |
| 1 | 708003155 | Backrest Ass'y Backrest Ass'y | 1 |
| 1 | 708002581 | Seat Base Pivot Seat Base Pivot | 1 |
| 1 | 207684544 | Hex. Flange Screw M8 X 45 Hex. Flanged Screw M8 X 45 | 1 |
| 1 | 708001903 | Bushing Bushing | 1 |
| 1 | 250000760 | Torx Screw Truss Head K50X20 T20 Torx Screw Truss Head K50X20 T20 | 1 |
| 1 | 207064544 | Hex. Screw M6 X 45 Hex. Screw M6 X 45 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Hex. Flanged Elastic Nut M6 x 1.0 | 1 |
| 1 | 250400069 | Pin Pin | 1 |
| 1 | 269800431 | Hairpin Cotter Hairpin | 1 |
| 1 | 269501487 | Latch Latch | 1 |
| 1 | 517303756 | Grommet Grommet | 1 |
| 1 | 293830005 | Rubber Bumper Rubber Bumper | 1 |
| 1 | 708002293 | Cover Cover | 1 |
| 1 | 708002331 | Driver Buckle Driver Buckle | 1 |
| 1 | 708003163 | Middle Buckle Middle Buckle | 1 |
| 1 | 708002329 | Passenger Buckle Passenger Buckle | 1 |
| 1 | 708003082 | LH Safety Belt LH Safety Belt | 1 |
| 1 | 708003200 | RH Safety Belt RH Safety Belt | 1 |
| 1 | 708003164 | Central Safety Belt Central Safety Belt | 1 |
| 1 | 207028046 | Hex. Screw M12 X 80 Hex. Screw M12 X 80 | 1 |
| 1 | 233221416 | Elastic Flange Nut M12 Elastic Flange Nut M12 | 1 |
| 1 | 250000521 | Hex. Cap Screw 7/16'' X 1'' Hex. Cap Screw 7/16'' X 1'' | 1 |
| 1 | 250200102 | Flat Washer M12 Flat Washer M12 | 1 |
| 1 | 250100183 | Lock Nut Nylon 7/16 Lock Nut Nylon 7/16 | 1 |
| 1 | 250000760 | Torx Screw Truss Head K50X20 T20 Torx<BR/> Screw Truss Head K50X20 T20 | 1 |
| 1 | 233221416 | Elastic Flange Nut M12 Elastic<BR/> Flange Nut M12 | 1 |
| 1 | 250100183 | Lock Nut Nylon 7/16 Lock<BR/> Nut Nylon 7/16 | 1 |
| 1 | 708002504 | Safety Belt screw Safety<BR/> Belt screw | 1 |
| 1 | 708000890 | Safety Belt Screw Safety<BR/> Belt Screw | 1 |
| 1 | 708000891 | Position Washer Position<BR/> Washer | 1 |
