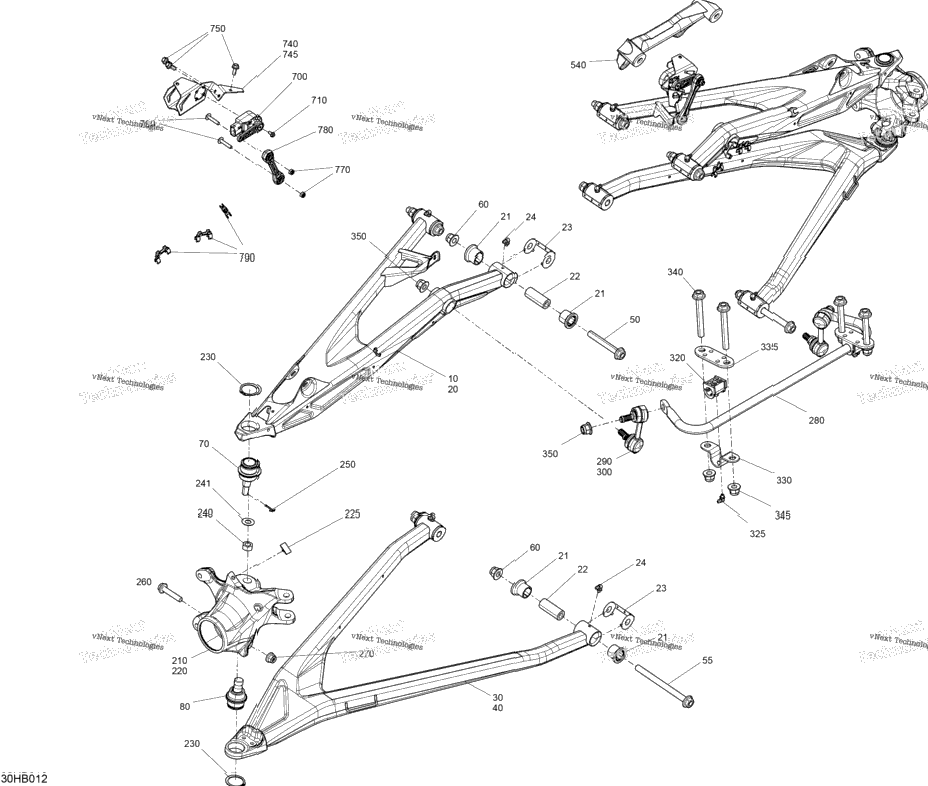

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 706203685 | Deep Black, LH Upper Suspension Arm Model Timeless Black Metallic | 1 |
| 1 | 706203938 | Dazzling Blue, LH Upper Suspension Arm Model Dazzling Blue | 1 |
| 1 | 706204405 | Can-Am Red, LH Upper Suspension Arm Model Macchiato Satin | 1 |
| 1 | 703501163 | Can-Am Red, RH Upper Suspension Arm Model Macchiato Satin | 1 |
| 1 | 706203686 | Deep Black, RH Upper Suspension Arm Model Timeless Black Metallic | 1 |
| 1 | 706203939 | Dazzling Blue, RH Upper Suspension Arm Model Dazzling Blue | 1 |
| 16 | 706204409 | Suspension Arm Bushing | 16 |
| 8 | 706202257 | Interior Bushing | 8 |
| 8 | 706202300 | Wear Plate | 8 |
| 8 | 293550056 | Grease Fitting 90° | 8 |
| 1 | 706204659 | Dazzling Blue, LH Lower Suspension Arm Model Dazzling Blue | 1 |
| 1 | 706204733 | Deep Black, LH Lower Suspension Arm Model Timeless Black Metallic / Model Macchiato Satin | 1 |
| 1 | 706204660 | Dazzling Blue, RH Lower Suspension Arm Model Dazzling Blue | 1 |
| 1 | 706204734 | Deep Black, RH Lower Suspension Arm Model Timeless Black Metallic / Model Macchiato Satin | 1 |
| 4 | 250000859 | Flange Screw M12 X 85 | 4 |
| 4 | 250000861 | Flange Screw M12 X 145 | 4 |
| 8 | 250001195 | Elastic Flange Nut M12 | 8 |
| 2 | 706203084 | Ball Joint | 2 |
| 2 | 706202045 | Ball Joint | 2 |
| 1 | 706204785 | LH Front Knuckle | 1 |
| 1 | 706204786 | RH Front Knuckle Order The Circlip 293370169 When Replacing Past Configuration 706202760 | 1 |
| 2 | 706202502 | Wear Plate | 2 |
| 4 | 293370035 | Circlip | 4 |
| 2 | 250100099 | Nut M12 | 2 |
| 2 | 706200281 | Hardened Washer | 2 |
| 2 | 211400017 | Cotter Pin | 2 |
| 1 | 207605046 | Hex.Flange Screw Din.6921 | 1 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 706203953 | Stabilizer Bar Ass'y | 1 |
| 1 | 706203611 | LH Stabilizer Bar Link | 1 |
| 1 | 706203612 | RH Stabilizer Bar Link | 1 |
| 2 | 706204564 | Stabilizer Bar Bushing | 2 |
| 2 | 293550056 | Grease Fitting 90° | 2 |
| 2 | 706202460 | Clamp | 2 |
| 2 | 706202551 | Support Plate | 2 |
| 4 | 250000876 | Hex. Flange Screw M12 X 95 | 4 |
| 4 | 250001195 | Elastic Flange Nut M12 | 4 |
| 1 | 706202708 | Black, Link Model Timeless Black Metallic | 1 |
| 1 | 706204350 | Macchiato, Front Shock Reinforcement Model Dazzling Blue | 1 |
| 1 | 706204492 | Macchiatio, Front Shock Reinforcement Model Macchiato Satin | 1 |
| 2 | 710005235 | Suspension Position Sensor Model With Smart-Shox Technology | 2 |
| 4 | 207551056 | Hex. Flange Screw M5x10 Model With Smart-Shox Technology | 4 |
| 1 | 705207578 | LH Front Sensor Support Model With Smart-Shox Technology | 1 |
| 1 | 705207579 | RH Front Sensor Support Model With Smart-Shox Technology | 1 |
| 6 | 207661654 | Hex. Flange Screw M6 X 16 Model With Smart-Shox Technology | 6 |
| 4 | 250000842 | Stainless, Torx Screw M6 X 30 Model With Smart-Shox Technology | 4 |
| 4 | 232561494 | Elastic Stop Nut M6 Model With Smart-Shox Technology | 4 |
| 2 | 706203429 | Link Model With Smart-Shox Technology | 2 |
| 6 | 706203549 | Hose Support Model With Smart-Shox Technology | 6 |
