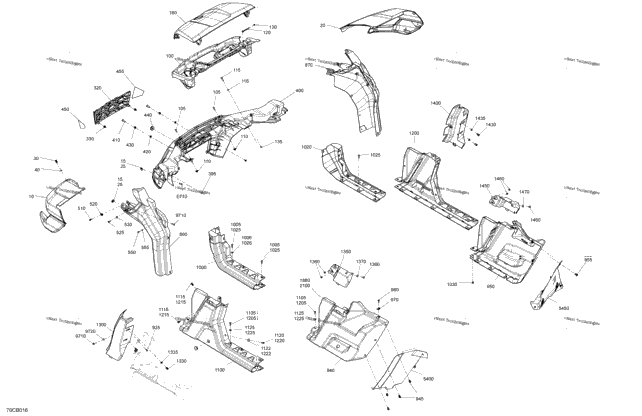

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705016419 | Night Black, LH Front Fender Includes 10 to 10a | 1 |
| 2 | 250100198 | Panel Nut M6 X 1.0 | 2 |
| 1 | 705016422 | Night Black, RH Front Fender Includes 20 to 20a | 1 |
| 4 | 293150230 | Tuflok Plastic Rivet | 4 |
| 4 | 503192494 | Washer | 4 |
| 1 | 705013766 | Multi Purpose Support | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 210263050 | Hex. Flange Screw M6 X 30 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 4 | 207667554 | Hex. Flange Screw M6 X 75 | 4 |
| 4 | 732610072 | Push Nut | 4 |
| 2 | 293900125 | Bushing | 2 |
| 1 | 705016425 | Night Black, Front Hood Includes 160 to 160a | 1 |
| 1 | 705013590 | Grille | 1 |
| 2 | 517306478 | Clip | 2 |
| 2 | 250000725 | Screw M4 X 16 | 2 |
| 1 | 705013591 | Deep Black, Front Fascia | 1 |
| 2 | 250000886 | Torx Screw M8 X 30 | 2 |
| 2 | 503192494 | Washer | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 705010718 | Grommet | 2 |
| 1 | 704905072 | LH Front Reflector | 1 |
| 1 | 704905073 | RH Front Reflector | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 2 | 234051670 | Flat Washer M5 | 2 |
| 1 | 705008152 | LH Front Lateral Panel | 1 |
| 1 | 705008153 | RH Front Lateral Panel | 1 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 1 | 715007134 | LH Body Panel Kit Includes 940 to 940 | 1 |
| 1 | 715007136 | RH Body Panel Kit | 1 |
| 5 | 293150230 | Tuflok Plastic Rivet | 5 |
| 1 | 705008699 | LH Central Lateral Panel | 1 |
| 3 | 250000807 | Torx Truss Screw M6 X 25 | 3 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 1 | 705008700 | RH Central Lateral Panel | 1 |
| 6 | 293150108 | Pop Rivet 3/16” | 6 |
| 1 | 705015817 | LH Central Body Panel Includes 1100 to 1100a | 1 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 1 | 250000807 | Torx Truss Screw M6 X 25 | 1 |
| 1 | 250200162 | Flat Washer M6.6 X 22 | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer Includes 1125 to 1125 | 1 |
| 1 | 705015818 | RH Central Body Panel Includes 1200 to 1200a | 1 |
| 2 | 234062670 | Stainless Steel Flat Washer Includes 1225 to 1225 | 2 |
| 1 | 715003564 | LH Rear Cage Cover Kit | 1 |
| 1 | 705014748 | Deep Black, LH Rear Body Panel | 1 |
| 3 | 293150104 | Pop Rivet 3/16" | 3 |
| 1 | 250200025 | Washer M5 | 1 |
| 1 | 715003565 | RH Rear Cage Cover Kit | 1 |
| 1 | 705014749 | Deep Black, RH Rear Body Panel | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 705016336 | LH Rear Deflector | 1 |
| 1 | 705016337 | RH Rear Deflector Includes 5450 to 5450b | 1 |
| 6 | 250000807 | Torx Truss Screw M6 X 25 | 6 |
