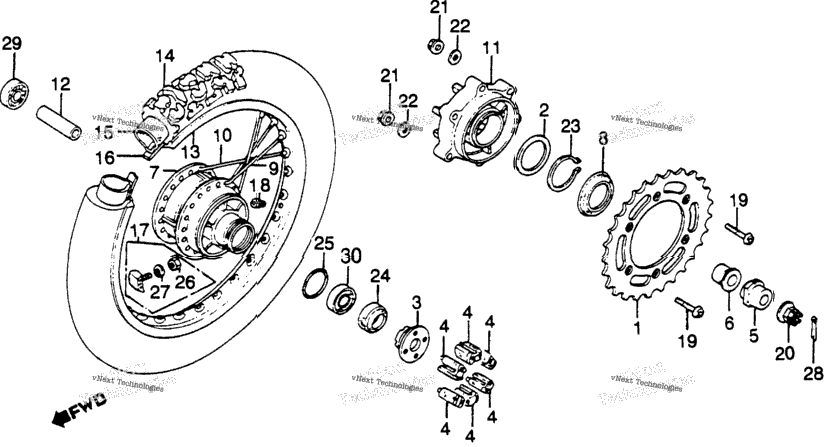

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 41201-KFK-000 | SPROCKET, FINAL DRIVEN (41T) | ||
| 41201-MG2-000 | SPROCKET, FINAL DRIVEN (41T) | ||
| 41201-435-671 | SPROCKET, FINAL DRIVEN (41T) | ||
| 1 | 41204-413-780 | WASHER (80X65) | 1 |
| 41231-428-000 | RETAINER, BEARING | ||
| 41241-435-000 | RUBBER, RR. WHEEL DAMPER | ||
| 42304-429-000 | COLLAR, RR. AXLE | ||
| 42312-428-000 | COLLAR, RR. WHEEL | ||
| 42601-435-860 | HUB, RR. WHEEL | ||
| 42604-413-780 | COVER, SPROCKET SIDE DUST | ||
| 42605-429-305 | SPOKE A, RR. | ||
| 42606-429-305 | SPOKE B, RR. | ||
| 42612-435-010 | FLANGE, FINAL DRIVEN | ||
| 42620-435-860 | COLLAR, RR. AXLE DISTANCE | ||
| 42701-429-003 | RIM, RR. WHEEL (2.15X18) | ||
| 42711-428-731 | TIRE, RR. (4.60-18) (YOKOHAMA) | ||
| 1 | 08400-30000 | TUBE, TIRE (5.10-18) (BS) | 1 |
| 1 | 08400-34001 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-KA3-711 | TUBE, TIRE (BS) | 1 |
| 1 | 42712-KA5-681 | TUBE, TIRE (5.10-18) (BS) | 1 |
| 1 | 42712-KS7-003 | TUBE, TIRE | 1 |
| 1 | 42712-KT1-671 | TUBE, TIRE (120/80-18) (IRC) | 1 |
| 1 | 42712-400-003 | TUBE, TIRE (4.10-18) (BS) | 1 |
| 1 | 42712-425-003 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-430-701 | TUBE, TIRE (5.10-18) (BS) | 1 |
| 1 | 42712-435-003 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-446-003 | TUBE, TIRE (3.50/4.10-18) (BS) | 1 |
| 1 | 44712-300-004 | TUBE, TIRE (100/100-19) (DUNLOP) | 1 |
| 1 | 42712-300-000 | TUBE, TIRE (4.00-18) | 1 |
| 42712-300-003 | TUBE, TIRE (4.00-18) (BS) | ||
| 1 | 42712-310-004 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-312-003 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-340-006 | TUBE, TIRE (4.00-18) (NITTO) | 1 |
| 1 | 42712-374-003 | TUBE, TIRE (3.75-18) (BS) | 1 |
| 1 | 42712-401-681 | TUBE, TIRE (3.25/3.50-18) (4.10-18) (DUNLOP) | 1 |
| 1 | 42712-428-009 | TUBE, TIRE (4.60-18) (BS) | 1 |
| 42713-428-009 | FLAP, TIRE (2.15X18) (YOKOHAMA) | ||
| 1 | 42715-MA0-770 | STOPPER, BEAD (2.15) | 1 |
| 1 | 42715-428-000 | STOPPER, BEAD | 1 |
| 1 | 42717-329-000 | CAP, RIM HOLE | 1 |
| 6 | 90128-428-020 | BOLT, DRIVEN SPROCKET FIXING | 6 |
| 1 | 90305-HA7-670 | NUT, AXLE (16MM) | 1 |
| 1 | 90305-HM5-A80 | NUT, CASTLE (16MM) | 1 |
| 1 | 90305-369-000 | NUT, AXLE (16MM) | 1 |
| 6 | 90309-428-731 | NUT, FLANGE (M8X1.25) (SELF-LOCK) | 6 |
| 90465-428-000 | WASHER, THRUST (8MM) | ||
| 90665-329-000 | CIRCLIP (OUTER) (65MM) | ||
| 1 | 91216-729-921 | OIL SEAL (25X40X7) | 1 |
| 1 | 91252-428-000 | OIL SEAL (25X40X7) | 1 |
| 91262-329-010 | O-RING (62X2) | ||
| 1 | 94001-08000-0S | NUT, HEX. (8MM) | 1 |
| 1 | 94111-08000 | WASHER, SPRING (8MM) | 1 |
| 1 | 94201-40300 | PIN, SPLIT (4.0X30) | 1 |
| 1 | 96140-62030-10 | BEARING, RADIAL BALL (6203U) | 1 |
| 1 | 96140-63030-10 | BEARING, RADIAL BALL (6303U) | 1 |
