Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

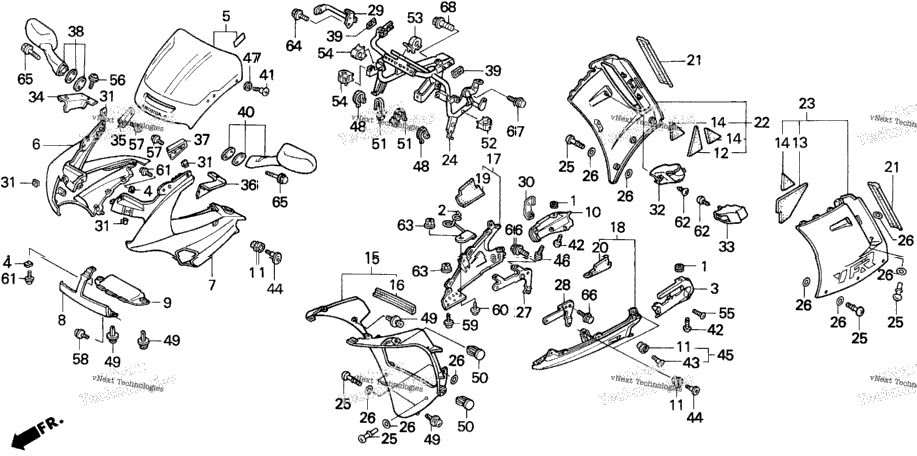

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 11344-MB0-000 | GROMMET A, RR. COVER (8X16X6.6) | 2 |
| 17416-MT4-710 | GUIDE, CANISTER DRAIN TUBE | ||
| 50536-MT4-000ZA | COVER, L. (LOWER) *R157* (ITALIAN RED) | ||
| 50536-MY7-000ZC | COVER, L. (LOWER) *R157* (ITALIAN RED) | ||
| 2 | 61306-167-000 | NUT, SPEEDOMETER BODY SETTING | 2 |
| 64180-MT4-670ZA | WINDSCREEN SET *R157* (TYPE1) (WL) (ITALIAN RED) | ||
| 64180-MT4-670ZB | WINDSCREEN SET *R157* (ITALIAN RED) | ||
| 64211-MT4-000ZA | COWL, R. (UPPER) *R157* (ITALIAN RED) | ||
| 64211-MY7-000ZC | COWL, R. (UPPER) *R157* (WOL) (ITALIAN RED) | ||
| 64212-MT4-670ZA | COWL, L. (UPPER) *R157* (ITALIAN RED) | ||
| 64213-MT4-000ZA | COWL, FR. CENTER *R157* (ITALIAN RED) | ||
| 64216-MT4-880 | GUIDE, OIL COOLER AIR | ||
| 64221-MY7-650ZC | COVER, R. (LOWER) *R157* (ITALIAN RED) | ||
| 64221-MT4-730ZA | COVER, R. (LOWER) *R157* (ITALIAN RED) | ||
| 8 | 64246-MJ4-670 | RUBBER, FAIRING MOUNTING | 8 |
| 64251-MR8-300 | MAT, COWL (LOWER) (A) | ||
| 64251-MT4-300 | MAT, MIDDLE COWL | ||
| 64252-MR8-300 | MAT, COWL (LOWER) (B) | ||
| 64270-MT4-730ZA | COWL, HALF (INNER) *R157* (ITALIAN RED) | ||
| 64276-MT4-730 | RUBBER, HALF HEAT (INNER) | ||
| 64311-MT4-710ZA | COWL, R. (LOWER) *R157* (ITALIAN RED) | ||
| 64312-MT4-730ZA | COWL, L. (LOWER) *R157* (ITALIAN RED) | ||
| 64315-MT4-730 | MAT, R. COWL (LOWER) | ||
| 64316-MT4-730 | MAT, L. COWL (LOWER) | ||
| 64415-MT4-000 | RUBBER, MIDDLE COWL | ||
| 64430-MT4-730ZA | COWL SET, R. MIDDLE *R157* (TYPE1) (WL) (ITALIAN RED) | ||
| 64430-MT4-730ZH | COWL SET, R. MIDDLE *R157* (TYPE1) (ITALIAN RED) | ||
| 64470-MT4-730ZA | COWL SET, L. MIDDLE *R157* (TYPE1) (WL) (ITALIAN RED) | ||
| 64470-MT4-730ZG | COWL SET, L. MIDDLE *R157* (ITALIAN RED) | ||
| 64500-MT4-020 | STAY, COWL MAIN (UPPER) | ||
| 12 | 64507-MN4-000 | STUD (6X14) | 12 |
| 22 | 64509-KE8-700 | RETAINER (6MM) | 22 |
| 64511-MT4-711 | STAY, R. FR. COWL (LOWER) | ||
| 64512-MT4-010 | STAY, L. FR. COWL (LOWER) | ||
| 64515-MT4-000 | STAY, COWL SUB (UPPER) | ||
| 64516-MT4-000 | STAY, R. RR. COWL (LOWER) | ||
| 4 | 64527-ML7-000 | NUT, CLIP (4MM) | 4 |
| 64570-MT4-000ZA | DUCT, R. AIR *NH280R* (ARMOR BLACK) | ||
| 64580-MT4-000ZA | DUCT, L. AIR *NH280R* (ARMOR BLACK) | ||
| 64590-MT4-000ZA | PANEL, R. (INNER) *NH280R* (ARMOR BLACK) | ||
| 64590-MT4-000ZB | PANEL, R. (INNER) *NH280* (ARMOR BLACK) | ||
| 64591-MT4-000ZA | COVER, R. COWL (UPPER) *NH280R* (ARMOR BLACK) | ||
| 64591-MT4-000ZB | COVER, R. COWL (UPPER) *NH280* (ARMOR BLACK) | ||
| 64595-MT4-000ZA | PANEL, L. (INNER) *NH280R* (ARMOR BLACK) | ||
| 64595-MT4-000ZB | PANEL, L. (INNER) *NH280* (ARMOR BLACK) | ||
| 64596-MT4-000ZA | COVER, L. COWL (UPPER) *NH280R* (ARMOR BLACK) | ||
| 64596-MT4-000ZB | COVER, L. COWL (UPPER) *NH280* (ARMOR BLACK) | ||
| 88110-MT4-003ZA | MIRROR, R. BACK *NH1* (BLACK) | ||
| 88110-MV9-003ZA | MIRROR, R. BACK *NH1* (BLACK) | ||
| 88111-MT4-000 | RUBBER, MIRROR MOUNTING | ||
| 88120-MT4-003ZA | MIRROR, L. BACK *NH1* (BLACK) | ||
| 88120-MV9-003ZA | MIRROR, L. BACK *NH1* (BLACK) | ||
| 4 | 90101-MT4-000 | SCREW, SCREEN SETTING | 4 |
| 2 | 90105-MM4-000 | SCREW, PAN (6X10) | 2 |
| 90112-ML7-920 | SCREW, FAIRING SETTING | ||
| 6 | 90112-MT4-000 | BOLT, COWL SETTING | 6 |
| 90113-ML7-920 | SCREW ASSY., FAIRING SETTING | ||
| 1 | 90118-MR1-000 | SCREW, PAN (6X14) | 1 |
| 90501-MT4-700 | RUBBER, WINDSCREEN | ||
| 2 | 90650-MA6-720 | BAND, WIRE HARNESS | 2 |
| 8 | 90683-GR1-003 | CLIP, BODY COVER | 8 |
| 4 | 90685-SA5-003 | CLIP, COVER (LOWER) | 4 |
| 2 | 90690-GHB-601 | CLIP, HARNESS BAND (15) | 2 |
| 1 | 90690-GHB-631 | CLIP, CABLE (8MM) | 1 |
| 1 | 90690-GHB-661 | CLIP, CABLE (20MM) | 1 |
| 2 | 90690-GHB-671 | CLIP, CABLE (25MM) | 2 |
| 1 | 93500-06016-0A | SCREW, PAN (6X16) | 1 |
| 1 | 93500-06016-1A | SCREW, PAN (6X16) | 1 |
| 2 | 93891-04012-07 | SCREW-WASHER (4X12) | 2 |
| 4 | 93891-05010-07 | SCREW-WASHER (5X10) | 4 |
| 2 | 93894-05010-08 | SCREW-WASHER (5X10) | 2 |
| 1 | 93894-05012-00 | SCREW-WASHER (5X12) | 1 |
| 1 | 93894-05012-10 | SCREW-WASHER (5X12) | 1 |
| 1 | 93894-05016-00 | SCREW-WASHER (5X16) | 1 |
| 1 | 93894-05016-10 | SCREW-WASHER (5X16) | 1 |
| 2 | 93894-05018-08 | SCREW-WASHER (5X18) | 2 |
| 2 | 93903-34280 | SCREW, TAPPING (4X10) | 2 |
| 2 | 94050-05000 | NUT, FLANGE (5MM) | 2 |
| 1 | 95701-06012-08 | BOLT, FLANGE (6X12) | 1 |
| 4 | 95701-06020-08 | BOLT, FLANGE (6X20) | 4 |
| 2 | 95701-10022-08 | BOLT, FLANGE (10X22) | 2 |
| 2 | 95701-08020-08 | BOLT, FLANGE (8X20) | 2 |
| 2 | 95801-08030-08 | BOLT, FLANGE (8X30) | 2 |
