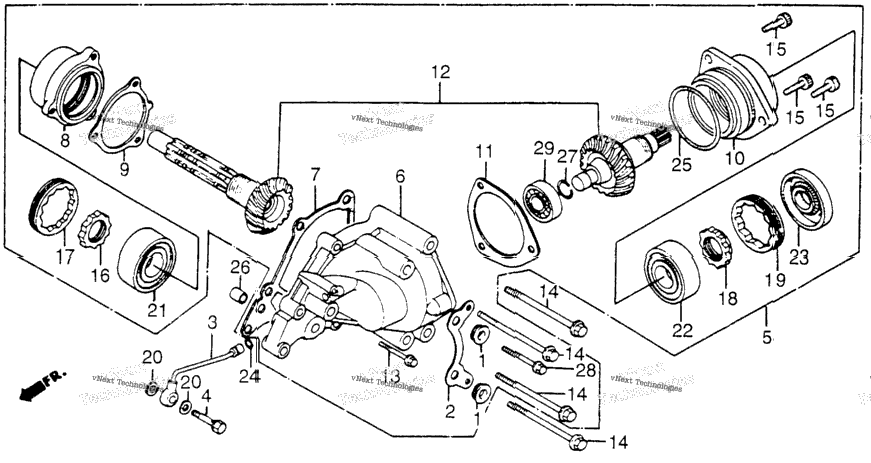

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 11345-MB0-000 | GROMMET B, RR. COVER | 1 |
| 11363-ME5-000 | STAY, L. SIDE COVER (A) | ||
| 15560-ME5-000 | PIPE, TRANSMISSION OIL | ||
| 15566-ME5-000 | BOLT, OIL CONTROL (8X41) | ||
| 21100-ME5-000 | CASE ASSY., SIDE GEAR Use up to Engine SN 2015829 | ||
| 21100-ME5-010 | CASE ASSY., SIDE GEAR Use up to Engine SN 2015829 | ||
| 21100-ME5-010 | CASE ASSY., SIDE GEAR | ||
| 21200-ME5-000 | CASE, SIDE GEAR | ||
| 21291-ME5-000 | GASKET, SIDE GEAR CASE | ||
| 21291-ME5-306 | GASKET, SIDE GEAR CASE | ||
| 21301-ME5-000 | HOLDER, COUNTERSHAFT BEARING | ||
| 21321-ME5-000 | SHIM, COUNTERSHAFT (0.4) | ||
| 21322-ME5-000 | SHIM, COUNTERSHAFT (0.45) | ||
| 21323-ME5-000 | SHIM, COUNTERSHAFT (0.5) | ||
| 21324-ME5-000 | SHIM, COUNTERSHAFT (0.55) | ||
| 21325-ME5-000 | SHIM, COUNTERSHAFT (0.6) | ||
| 21371-ME5-000 | HOLDER, CROSS SHAFT BEARING Use up to Engine SN 2015829 | ||
| 21371-ME5-010 | HOLDER, CROSS SHAFT BEARING Use up to Engine SN 2015829 | ||
| 21371-ME5-010 | HOLDER, CROSS SHAFT BEARING | ||
| 21371-MF5-000 | HOLDER, CROSS SHAFT BEARING Use up to Engine SN 2015829 | ||
| 21381-ME5-000 | SHIM, CROSS SHAFT (0.2) | ||
| 21382-ME5-000 | SHIM, CROSS SHAFT (0.25) | ||
| 21383-ME5-000 | SHIM, CROSS SHAFT (0.3) | ||
| 21384-ME5-000 | SHIM, CROSS SHAFT (0.35) | ||
| 21385-ME5-000 | SHIM, CROSS SHAFT (0.4) | ||
| 21386-ME5-000 | SHIM, CROSS SHAFT (0.45) | ||
| 21387-ME5-000 | SHIM, CROSS SHAFT (0.50) | ||
| 23200-ME5-000 | SHAFT SET, CROSS | ||
| 1 | 90045-ME5-000 | BOLT, UBS (8X55) | 1 |
| 90046-ME5-000 | BOLT, UBS (8X87) | ||
| 1 | 90061-MB0-000 | BOLT, SOCKET (8X22) | 1 |
| 1 | 90241-MB0-000 | NUT, LOCK (30MM) | 1 |
| 1 | 90242-MB0-000 | NUT, LOCK (64MM) | 1 |
| 90243-ME5-000 | NUT, LOCK (28MM) | ||
| 1 | 90244-HA0-000 | NUT, LOCK (60MM) | 1 |
| 1 | 90244-ME5-000 | NUT, LOCK (60MM) | 1 |
| 1 | 90475-703-000 | WASHER C (8MM) | 1 |
| 1 | 91012-MB0-003 | BEARING, RADIAL BALL (5206) | 1 |
| 1 | 91012-MG7-003 | BEARING, RADIAL BALL (5206) | 1 |
| 91006-KBA-901 | BEARING, RADIAL BALL (62/28) | ||
| 91006-KR1-761 | BEARING, RADIAL BALL (6228) (TMB) | ||
| 91014-ME5-008 | BEARING, BALL (62/28) (TOYO) | ||
| 91205-ME5-003 | OIL SEAL (25X61X8.5) (ARAI) | ||
| 91205-ME5-005 | OIL SEAL (25X61X8.5) (NIPPON) Use up to Engine SN 2008477 | ||
| 1 | 91304-ME5-003 | O-RING (5.1X2.2) (ARAI) | 1 |
| 1 | 91362-461-000 | O-RING (70X3.0) | 1 |
| 1 | 94301-10160 | PIN A, DOWEL (10X16) | 1 |
| 1 | 94601-13000 | CLIP, PISTON PIN (13MM) | 1 |
| 1 | 95700-06032-00 | BOLT, FLANGE (6X32) | 1 |
| 1 | 95701-06032-00 | BOLT, FLANGE (6X32) | 1 |
| 1 | 96100-63020-00 | BEARING, RADIAL BALL (6302) | 1 |
