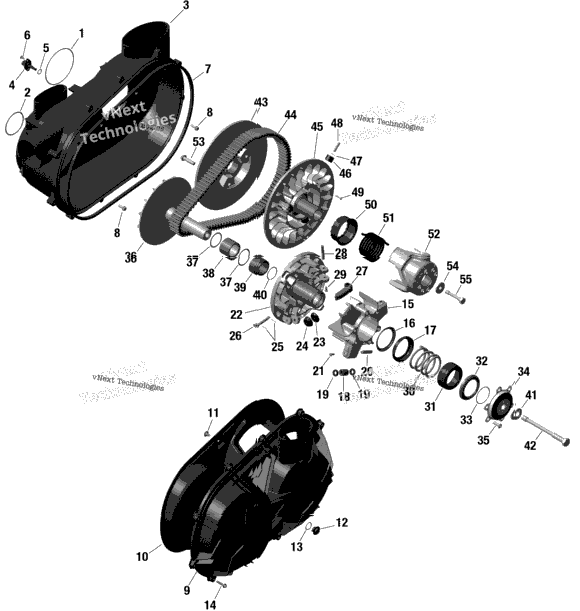

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420450431 | O-Ring Included in gasket kit | 1 |
| 1 | 420450520 | O-Ring Included in gasket kit | 1 |
| 1 | 420212609 | CVT Air Guide | 1 |
| 1 | 515176366 | Air Temperature Sensor | 1 |
| 1 | 420950815 | O-Ring | 1 |
| 2 | 420640086 | Torx Screw M5 X 12 | 2 |
| 1 | 420450405 | Gasket | 1 |
| 8 | 420441311 | Hex.Screw M6 X 20 | 8 |
| 1 | 420212508 | Variator Cover | 1 |
| 1 | 420897385 | Insulating Mat | 1 |
| 2 | 420651816 | Trim Button | 2 |
| 1 | 420441820 | Cap Includes 12 to 13 | 1 |
| 1 | 420250052 | O-Ring Included in gasket kit | 1 |
| 11 | 420441575 | Torx Screw 6X30 | 11 |
| 1 | 420280716 | Governor Cup Ass'y Includes 15 to 21 | 1 |
| 420427352 | Stopper Spring | ||
| 1 | 420427803 | Spring Support | 1 |
| 1 | 420629231 | Thrust Roller Set Includes 18 to 21 | 1 |
| 3 | 417224861 | Roller Pulley Ass'y | 3 |
| 6 | 420626235 | Thrust Washer | 6 |
| 3 | 417224204 | Axle - 10mm | 3 |
| 3 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip | 3 |
| 1 | 420280813 | Outer Half Ass'y Includes 22 to 26 | 1 |
| 1 | 420629224 | Roller Set Includes 23 to 26 | 1 |
| 3 | 417224153 | Back Torque Roller | 3 |
| XXXX | Not Available As Spare Part - Roller Pulley Ext | ||
| 6 | 250400074 | Spring Pin 3/32" X 3/4" | 6 |
| 420233899 | Pin | ||
| 3 | 420248720 | Roller Lever Ass'y | 3 |
| 420233904 | Pin Ramp | ||
| 1 | 420638133 | Compression Spring, Drive Pulley | 1 |
| 1 | 420427808 | Spring Support | 1 |
| 1 | 420427354 | Seat Spring | 1 |
| 420645027 | Circlip | ||
| 1 | 420280275 | Governor Cup Torque Flange | 1 |
| 6 | 420841083 | Torx Flange Screw M8 X 25 T40 | 6 |
| 1 | 420280811 | Flasque Fixe Ass. | 1 |
| 2 | 420427220 | Washer | 2 |
| 1 | 420832351 | Needle Roller Bearing With Sleeves | 1 |
| 1 | 420660284 | Stop Sleeve | 1 |
| 1 | 420845741 | Retaining Ring 35 x 1.5 | 1 |
| 1 | 420245690 | Washer | 1 |
| 1 | 420841161 | Hexagonal Screw M14X 165 | 1 |
| 1 | 420686738 | Driven Pulley includes parts 44-53 | 1 |
| 1 | 420280652 | V Belt | 1 |
| 1 | 420280626 | Outer Half Pulley Ass'y Includes 45 to 49 | 1 |
| 3 | 417127016 | Pulley Roller | 3 |
| 1 | 420227946 | Thrust Washer | 1 |
| 1 | 420629192 | Bearing Pin | 1 |
| 1 | 420841531 | Torx Screw M4 X 20 | 1 |
| 1 | 420427805 | Spring Support | 1 |
| 1 | 420638126 | Spring | 1 |
| 1 | 420280846 | Cam 48/52 Ass'y | 1 |
| 3 | 420841711 | Torx Flange Screw M10 X 40 | 3 |
| 1 | 420427243 | Collar Washer | 1 |
| 1 | 420441990 | Hexagonal Screw M10X 61 | 1 |
