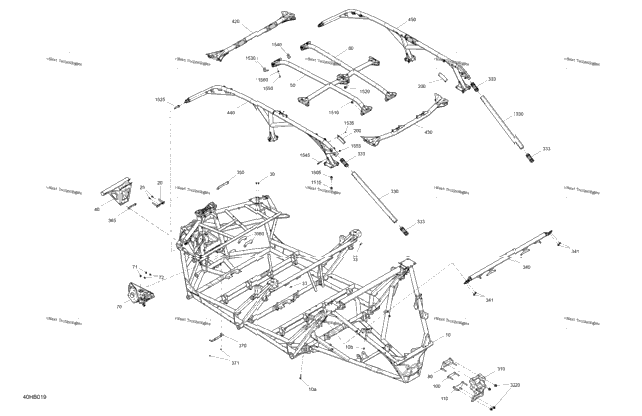

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715008481 | Black, Frame Kit Model Timeless Black Metallic | 1 |
| 715008485 | Chalk, Frame Kit Model Dazzling Blue | ||
| 1 | 715008791 | Northern Lichen, Max Chassis KIt Model Macchiato Satin | 1 |
| 1 | 715009112 | Macchiato Satin, Frame Kit Model Macchiato Satin | 1 |
| 1 | 250000913 | Weld Pin 8mm X 40mm | 1 |
| 1 | 250100059 | Nut M6 | 1 |
| 1 | 705207424 | Front Plate | 1 |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 2 |
| 17 | 250100199 | Insert Half Hex Body M6 x 1.0 | 17 |
| 2 | 250100199 | Insert Half Hex Body M6 x 1.0 | 2 |
| 1 | 705209863 | Chalk, Front Bumper Model Dazzling Blue | 1 |
| 1 | 705210400 | Deep Black, Front Bumper Model Timeless Black Metallic - Model Macchiato Satin | 1 |
| 1 | 705209879 | Chalk, LH Reinforcement Cage Model Dazzling Blue | 1 |
| 1 | 705210077 | Deep Black, LH Reinforcement Cage Model Timeless Black Metallic - Model Macchiato Satin | 1 |
| 1 | 705209881 | Chalk, RH Reinforcement Cage Model Dazzling Blue | 1 |
| 1 | 705210079 | Deep Black, RH Reinforcement Cage Model Timeless Black Metallic - Model Macchiato Satin | 1 |
| 1 | 705206924 | DPS Support | 1 |
| 2 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip | 2 |
| 2 | 233281416 | Hex. Elastic Flange Nut M8 | 2 |
| 1 | 705210278 | Rear Upper Plate | 1 |
| 1 | 705210281 | Rear Central Plate | 1 |
| 1 | 705210275 | Rear Lower Plate | 1 |
| 2 | 705205926 | Black, LH Link Plate Model Timeless Black Metallic - Model Macchiato Satin | 2 |
| 2 | 705209867 | Chalk, Connecting Plate Model Dazzling Blue | 2 |
| 1 | 705210271 | Connecting Plate | 1 |
| 4 | 250001195 | Elastic Flange Nut M12 | 4 |
| 2 | 705209862 | Chalk, Rear Pillar Model Dazzling Blue | 2 |
| 2 | 705210066 | Deep Black, Rear Pillar Model Timeless Black Metallic - Model Macchiato Satin | 2 |
| 4 | 705210648 | Sleeve | 4 |
| 1 | 705210001 | Safety Belt Anchorage | 1 |
| 4 | 232521416 | Elastic Stop Nut M12 | 4 |
| 1 | 705207425 | Upper Arm Link | 1 |
| 1 | 705210249 | Retaining Plate | 1 |
| 1 | 705207438 | Front Plate | 1 |
| 1 | 706203122 | Support | 1 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 705209869 | Chalk, Front Cross Member Model Dazzling Blue | 1 |
| 1 | 705210068 | Deep Black, Front Cross Member Model Timeless Black Metallic - Model Macchiato Satin | 1 |
| 1 | 705209871 | Chalk, Rear Cross Member Model Dazzling Blue | 1 |
| 1 | 705210070 | Deep Black, Rear Cross Member Model Timeless Black Metallic - Model Macchiato Satin | 1 |
| 1 | 715008450 | Black, LH Cage Kit Model Timeless Black Metallic - Model Macchiato Satin | 1 |
| 1 | 715008454 | Chalk, LH Cage Kit Model Dazzling Blue | 1 |
| 1 | 715008464 | Black, RH Cage Kit Model Timeless Black Metallic - Model Macchiato Satin | 1 |
| 1 | 715008468 | Chalk, RH Cage Kit Model Dazzling Blue | 1 |
| 20 | 207523056 | Hex. Flange Screw M12 X 30, Scotch Grip | 20 |
| 14 | 250001195 | Elastic Flange Nut M12 | 14 |
| 12 | 250001195 | Elastic Flange Nut M12 | 12 |
| 2 | 250000856 | Hex. Flange Screw DIN.6921 M12X25 | 2 |
| 4 | 250000857 | Flange Screw M12 X 60 | 4 |
| 2 | 705206806 | Stiffner | 2 |
| 4 | 293150102 | Rivet 3/16" | 4 |
| 2 | 705206807 | Stiffner | 2 |
| 4 | 250000901 | Torx Truss M8 X 65 | 4 |
| 4 | 250000717 | Torx Head Screw M6 X 16 | 4 |
| 4 | 250100025 | Elastic Flange Nut M8 | 4 |
| 4 | 233261466 | Hex. Flange Elastic Nut M6 | 4 |
