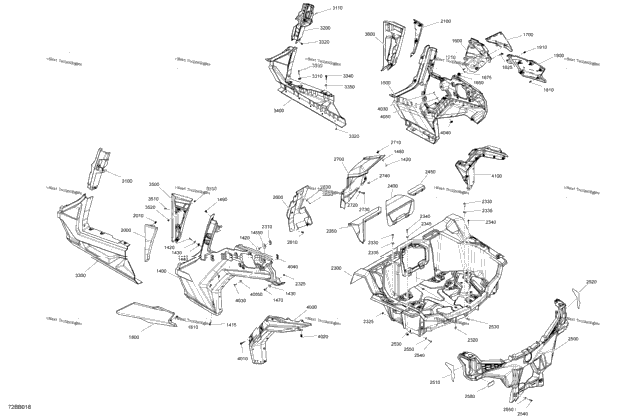

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705011335 | LH Rear Panel | 1 |
| 4 | 207662554 | Hex. Flange Screw M6 X 25 | 4 |
| 11 | 250000722 | Torx Screw M6 X 20 | 11 |
| 6 | 250200162 | Flat Washer M6.6 X 22 | 6 |
| 4 | 250100198 | Panel Nut M6 X 1.0 | 4 |
| 4 | 705003841 | Support Plate | 4 |
| 2 | 250000807 | Torx Truss Screw M6 X 25 | 2 |
| 3 | 234062670 | Stainless Steel Flat Washer | 3 |
| 2 | 414644300 | Black, Dart | 2 |
| 1 | 705011336 | RH Rear Panel | 1 |
| 1 | 705011338 | Air Filter Acces Door | 1 |
| 2 | 708400278 | Quarter Turn | 2 |
| 2 | 708400285 | Clip | 2 |
| 2 | 708400286 | Washer | 2 |
| 1 | 705015587 | Timeless Black, Acces Panel Trim | 1 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 705015592 | Timeless Black, LH Open Carrier Trim | 1 |
| 12 | 517306478 | Clip | 12 |
| 1 | 705015597 | Timeless Black, RH Open Carrier Trim | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 705015602 | Timeless Black, LH Rear Panel Trim | 1 |
| 6 | 517306478 | Clip | 6 |
| 1 | 705015603 | Timeless Black, RH Rear Panel Trim | 1 |
| 1 | 705016885 | Rear Box | 1 |
| 2 | 250100224 | Panel Nut M6 X 1.0 | 2 |
| 8 | 250100207 | Hex. Coupling Nut M6 | 8 |
| 4 | 233261466 | Hex. Flange Elastic Nut M6 | 4 |
| 5 | 250000745 | Hex Torx Truss M8 X30 | 5 |
| 5 | 234082670 | Stainless Steel Flat Washer | 5 |
| 3 | 250000807 | Torx Truss Screw M6 X 25 | 3 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 705011339 | CVT Air Inlet Cover | 1 |
| 1 | 715006766 | Access Cover Kit | 1 |
| 1 | 705011340 | Air Intake Cover | 1 |
| 1 | 705011426 | Rear Fascia | 1 |
| 1 | 704906815 | LH Rear Reflector | 1 |
| 1 | 704906816 | RH Rear Reflector | 1 |
| 3 | 250100198 | Panel Nut M6 X 1.0 | 3 |
| 4 | 250000807 | Torx Truss Screw M6 X 25 | 4 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 2 | 520001820 | Red Reflector | 2 |
| 1 | 705015886 | LH Rear Wheel Arch Protector | 1 |
| 3 | 293150230 | Tuflok Plastic Rivet | 3 |
| 1 | 250200025 | Washer M5 | 1 |
| 1 | 705016135 | RH Rear Wheel Arch Protector | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 1 | 705011430 | LH Median Side Panel | 1 |
| 1 | 705011431 | RH Median Side Panel | 1 |
| 1 | 705013190 | LH Rear Rocker Panel | 1 |
| 16 | 293150108 | Pop Rivet 3/16” | 16 |
| 4 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch | 4 |
| 2 | 250000840 | Torx Truss Screw Head PT.K50 X 40 | 2 |
| 2 | 250200162 | Flat Washer M6.6 X 22 | 2 |
| 1 | 705013191 | RH Rear Rocker Panel | 1 |
| 1 | 705013140 | LH Rear Fixed Panel | 1 |
| 6 | 293150108 | Pop Rivet 3/16” | 6 |
| 2 | 250200025 | Washer M5 | 2 |
| 1 | 705013141 | RH Rear Fixed Panel | 1 |
| 1 | 705012097 | LH Rear Mud Guard | 1 |
| 6 | 250000840 | Torx Truss Screw Head PT.K50 X 40 | 6 |
| 14 | 293150230 | Tuflok Plastic Rivet | 14 |
| 6 | 250000722 | Torx Screw M6 X 20 | 6 |
| 6 | 250100198 | Panel Nut M6 X 1.0 | 6 |
| 6 | 234062670 | Stainless Steel Flat Washer | 6 |
| 1 | 705012098 | RH Rear 60" Mud Guard Extension | 1 |
