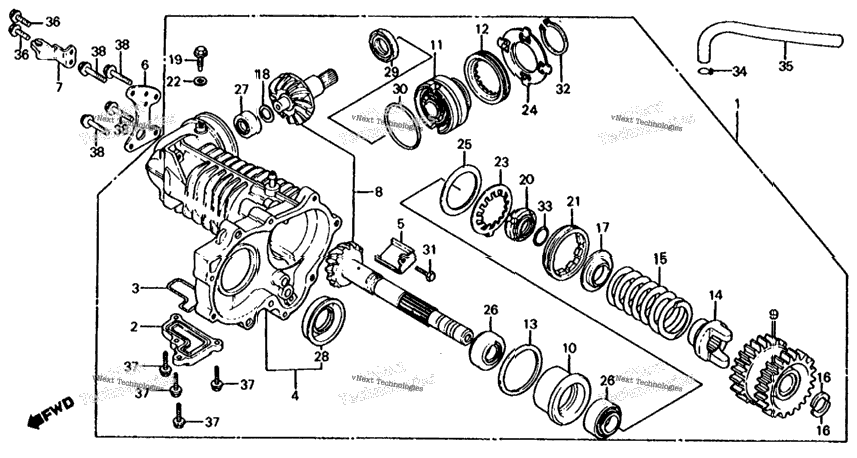

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 11340-461-750 | CASE ASSY., FINAL GEAR | ||
| 11366-461-750 | COVER, FINAL GEAR CASE (LOWER) | ||
| 11367-461-000 | O-RING, FINAL GEAR CASE COVER (LOWER) | ||
| 11370-461-750 | CASE, FINAL GEAR | ||
| 11373-461-000 | PLATE, BAFFLE | ||
| 11380-461-000 | PLATE, FINAL GEAR CASE HANGER | ||
| 11381-461-000 | RECEIVER, CLUTCH CABLE | ||
| 23500-461-010 | GEAR SET, FINAL | ||
| 23521-461-750 | GEAR, REDUCTION DRIVEN (31T/28T) | ||
| 23535-461-000 | RETAINER A, BEARING | ||
| 23550-461-000 | BEARING SET (30206C) | ||
| 23551-461-000 | NUT, LOCK (78MM) | ||
| 23560-461-000 | SHIM A, DRIVE GEAR (1.10) | ||
| 23561-461-000 | SHIM B, DRIVE GEAR (1.14) | ||
| 23562-461-000 | SHIM C, DRIVE GEAR (1.18) | ||
| 23563-461-000 | SHIM D, DRIVE GEAR (1.22) | ||
| 23564-461-000 | SHIM E, DRIVE GEAR (1.26) | ||
| 23565-461-000 | SHIM F, DRIVE GEAR (1.30) | ||
| 23566-461-000 | SHIM G, DRIVE GEAR (1.34) | ||
| 23567-461-000 | SHIM H, DRIVE GEAR (1.38) | ||
| 23568-461-000 | SHIM I, DRIVE GEAR (1.42) | ||
| 23569-461-000 | SHIM J, DRIVE GEAR (1.46) | ||
| 23570-461-000 | SHIM K, DRIVE GEAR (1.50) | ||
| 23571-461-000 | SHIM L, DRIVE GEAR (1.54) | ||
| 23572-461-000 | SHIM M, DRIVE GEAR (1.58) | ||
| 23573-461-000 | SHIM N, DRIVE GEAR (1.62) | ||
| 23574-461-000 | SHIM O, DRIVE GEAR (1.66) | ||
| 23575-461-000 | SHIM P, DRIVE GEAR (1.70) | ||
| 23576-461-000 | SHIM Q, DRIVE GEAR (1.74) | ||
| 23577-461-000 | SHIM R, DRIVE GEAR (1.78) | ||
| 23578-461-000 | SHIM S, DRIVE GEAR (1.82) | ||
| 23579-461-000 | SHIM T, DRIVE GEAR (1.86) | ||
| 23580-461-000 | SHIM U, DRIVE GEAR (1.90) | ||
| 23721-461-000 | LIFTER, DAMPER | ||
| 23732-461-000 | SPRING, DAMPER | ||
| 23733-371-000 | WASHER, SPRING STOPPER | ||
| 23733-461-000 | SEAT, DAMPER SPRING | ||
| 41450-415-000 | SHIM A, PINION GEAR (1.10) | ||
| 41451-415-000 | SHIM B, PINION GEAR (1.14) | ||
| 41452-415-000 | SHIM C, PINION GEAR (1.18) | ||
| 41453-415-000 | SHIM D, PINION GEAR (1.22) | ||
| 41454-415-000 | SHIM E, PINION GEAR (1.26) | ||
| 41455-415-000 | SHIM F, PINION GEAR (1.30) | ||
| 41456-415-000 | SHIM G, PINION GEAR (1.34) | ||
| 41457-415-000 | SHIM H, PINION GEAR (1.38) | ||
| 41458-415-000 | SHIM I, PINION GEAR (1.42) | ||
| 41459-415-000 | SHIM J, PINION GEAR (1.46) | ||
| 41460-415-000 | SHIM K, PINION GEAR (1.50) | ||
| 41461-415-000 | SHIM L, PINION GEAR (1.54) | ||
| 41462-415-000 | SHIM M, PINION GEAR (1.58) | ||
| 41463-415-000 | SHIM N, PINION GEAR (1.62) | ||
| 41464-415-000 | SHIM O, PINION GEAR (1.66) | ||
| 41465-415-000 | SHIM P, PINION GEAR (1.70) | ||
| 41466-415-000 | SHIM Q, PINION GEAR (1.74) | ||
| 41467-415-000 | SHIM R, PINION GEAR (1.78) | ||
| 41468-415-000 | SHIM S, PINION GEAR (1.82) | ||
| 41469-415-000 | SHIM T, PINION GEAR (1.86) | ||
| 41470-415-000 | SHIM U, PINION GEAR (1.90) | ||
| 1 | 90147-634-003 | BOLT, FENDER (6X18) | 1 |
| 90241-461-000 | NUT, LOCK (30MM) | ||
| 90242-461-000 | NUT, LOCK (75MM) | ||
| 1 | 90442-397-000 | WASHER, SEALING (6MM) | 1 |
| 90463-461-010 | WASHER, LOCK (75MM) | ||
| 90464-461-000 | WASHER, RETAINER LOCK | ||
| 90467-461-000 | WASHER, SPRING (58MM) | ||
| 1 | 91011-461-003 | BEARING (32006) | 1 |
| 1 | 91011-461-008 | BEARING (32006) | 1 |
| 1 | 91016-371-000 | BEARING, HEAD PIPE (LOWER) | 1 |
| 91062-415-013 | BEARING (30203C) | ||
| 91121-PH8-961 | BEARING, TAPER (30203) | ||
| 91206-461-003 | OIL SEAL (40X62X16) | ||
| 91206-461-005 | OIL SEAL (40X62X16) | ||
| 91221-461-003 | OIL SEAL (30X45X8) | ||
| 91221-461-005 | OIL SEAL (30X45X8) | ||
| 1 | 91362-461-000 | O-RING (70X3.0) | 1 |
| 1 | 92000-06012 | BOLT, HEX. (6X12) | 1 |
| 1 | 92101-06012 | BOLT, HEX. (6X12) | 1 |
| 1 | 92101-06012-0A | BOLT, HEX. (6X12) | 1 |
| 94510-50150 | CIRCLIP (OUTER) (50MM) | ||
| 94570-27000 | RING A, SNAP (27MM) | ||
| 1 | 95002-02120 | CLIP, TUBE (B12) | 1 |
| 1 | 95005-750012-0M | BULK TUBE,TB75-1M | 1 |
| 1 | 95700-06012-00 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95701-06012-00 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95700-06022-00 | BOLT, FLANGE (6X22) | 1 |
| 1 | 95701-06022-00 | BOLT, FLANGE (6X22) | 1 |
| 1 | 95700-08022-00 | BOLT, FLANGE (8X22) | 1 |
| 1 | 95701-08022-00 | BOLT, FLANGE (8X22) | 1 |
