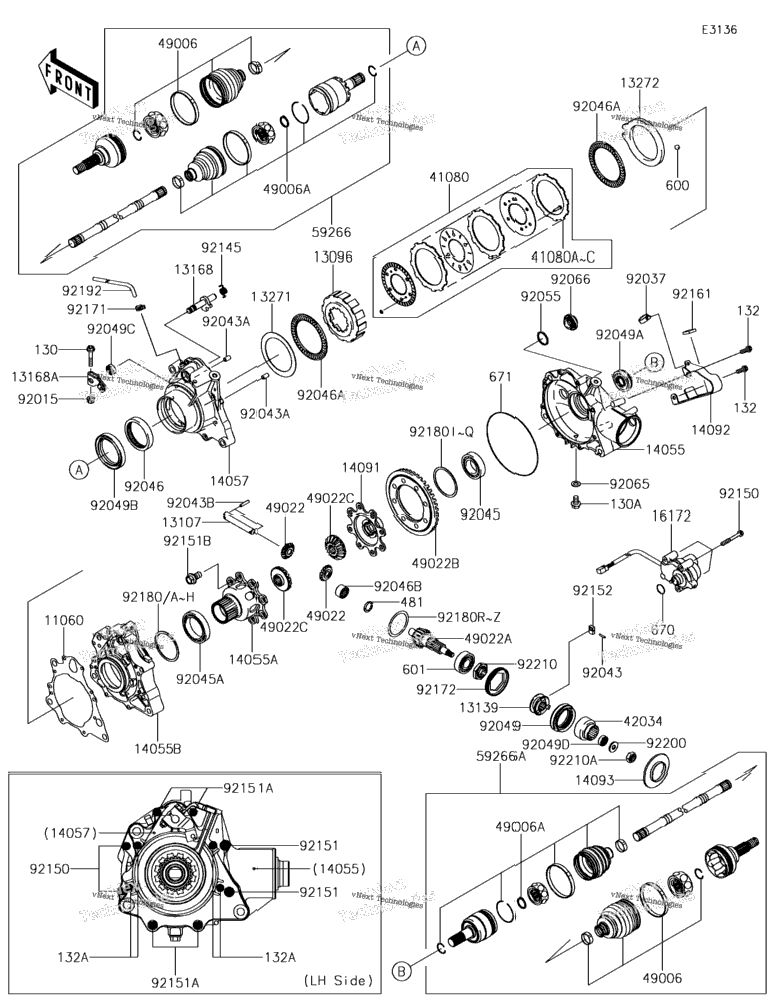

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 11060-1982 | GASKET,DIFF CASE | 1 |
| 1 | 13096-1163 | HOUSING-CLUTCH,DISC | 1 |
| 1 | 13107-0123 | SHAFT,CROSS | 1 |
| 1 | 13139-1097 | SHIFTER,DIFFERENTIAL | 1 |
| 1 | 13168-1724 | LEVER,DIFF | 1 |
| 1 | 13168-1725 | LEVER,DIFFERENTIAL | 1 |
| 1 | 13271-1503 | PLATE,DISC | 1 |
| 1 | 13272-0848 | PLATE,CAM | 1 |
| 1 | 14055-0046 | CASE-GEAR | 1 |
| 1 | 14055-0601 | CASE-GEAR,BEVEL,LH | 1 |
| 1 | 14055-1155 | CASE-GEAR,CENTER | 1 |
| 1 | 14057-0014 | CASE-COMP-GEAR,DIFF,LH | 1 |
| 1 | 14091-1197 | COVER,BEVEL,RH | 1 |
| 1 | 14092-0202 | COVER | 1 |
| 1 | 14093-0020 | COVER,COUPLING | 1 |
| 1 | 16172-0039 | ACTUATOR | 1 |
| 1 | 41080-0609 | DISC ASSY,DIFFERENTIAL LOCK | 1 |
| 1 | 41080-1499 | DISC,T=1.20 | 1 |
| 1 | 41080-1500 | DISC,T=1.80 | 1 |
| 1 | 41080-1501 | DISC,T=2.40 | 1 |
| 1 | 42034-0721 | COUPLING | 1 |
| 2 | 49006-0073 | BOOT,UJ | 2 |
| 2 | 49006-0074 | BOOT,DOJ | 2 |
| 2 | 49022-0575 | GEAR-BEVEL,10T | 2 |
| 1 | 49022-0590 | GEAR-BEVEL,8T | 1 |
| 1 | 49022-0591 | GEAR-BEVEL,35T | 1 |
| 2 | 49022-1178 | GEAR-BEVEL,16T | 2 |
| 1 | 59266-0024 | JOINT-BALL | 1 |
| 1 | 59266-0025 | JOINT-BALL | 1 |
| 1 | 92015-1339 | NUT,LOCK,FLANGED,6MM | 1 |
| 1 | 92037-1827 | CLAMP,HOSE | 1 |
| 1 | 92043-0083 | PIN,2X10.5 | 1 |
| 2 | 92043-1263 | PIN,6.2X8X14 | 2 |
| 2 | 92043-1575 | PIN | 2 |
| 1 | 92045-1393 | BEARING-BALL,60/32 | 1 |
| 1 | 92045-1394 | BEARING-BALL,6910 | 1 |
| 1 | 92046-0028 | BEARING-NEEDLE | 1 |
| 2 | 92046-1286 | BEARING-NEEDLE,AK1116 | 2 |
| 1 | 92046-1297 | BEARING-NEEDLE,AJ501515W | 1 |
| 1 | 92049-0754 | SEAL-OIL,TC9Y 48X65X9X15.3 | 1 |
| 1 | 92049-1534 | SEAL-OIL,SDD7 22X48X7HS | 1 |
| 1 | 92049-1536 | SEAL-OIL,HTCY 62X81X10.5 | 1 |
| 1 | 92049-1550 | SEAL-OIL,TC 12X22X7 | 1 |
| 1 | 92049-1572 | SEAL-OIL,KB 13X19X13 | 1 |
| 1 | 92055-0122 | RING-O | 1 |
| 1 | 92065-023 | GASKET,8.5X16X1 | 1 |
| 1 | 92066-1303 | PLUG | 1 |
| 1 | 92145-1344 | SPRING,DIFF RETURN | 1 |
| 5 | 92150-1884 | BOLT,6X45 | 5 |
| 2 | 92151-1794 | BOLT,8X50 | 2 |
| 4 | 92151-1795 | BOLT,6X60 | 4 |
| 8 | 92151-1910 | BOLT,10X19.5 | 8 |
| 1 | 92152-1349 | COLLAR | 1 |
| 1 | 92161-1387 | DAMPER,20X20X5 | 1 |
| 1 | 92171-0515 | CLAMP | 1 |
| 1 | 92172-0719 | SCREW,SET,64X10 | 1 |
| 1 | 92180-1390 | SHIM,62X71X0.15 | 1 |
| 1 | 92180-1391 | SHIM,62X71X0.20 | 1 |
| 1 | 92180-1392 | SHIM,62X71X0.50 | 1 |
| 1 | 92180-1393 | SHIM,62X71X0.70 | 1 |
| 1 | 92180-1394 | SHIM,62X71X0.80 | 1 |
| 1 | 92180-1395 | SHIM,62X71X0.90 | 1 |
| 1 | 92180-1396 | SHIM,62X71X1.00 | 1 |
| 1 | 92180-1397 | SHIM,62X71X1.10 | 1 |
| 1 | 92180-1398 | SHIM,62X71X1.20 | 1 |
| 1 | 92180-1399 | SHIM,32X42X0.15 | 1 |
| 1 | 92180-1400 | SHIM,32X42X0.20 | 1 |
| 1 | 92180-1401 | SHIM,32X42X0.50 | 1 |
| 1 | 92180-1402 | SHIM,32X42X0.70 | 1 |
| 1 | 92180-1403 | SHIM,32X42X0.80 | 1 |
| 1 | 92180-1404 | SHIM,32X42X0.90 | 1 |
| 1 | 92180-1405 | SHIM,32X42X1.00 | 1 |
| 1 | 92180-1406 | SHIM,32X42X1.10 | 1 |
| 1 | 92180-1407 | SHIM,32X42X1.20 | 1 |
| 1 | 92180-1408 | SHIM,50X61X0.15 | 1 |
| 1 | 92180-1409 | SHIM,50X61X0.20 | 1 |
| 1 | 92180-1410 | SHIM,50X61X0.50 | 1 |
| 1 | 92180-1411 | SHIM,50X61X0.70 | 1 |
| 1 | 92180-1412 | SHIM,50X61X0.80 | 1 |
| 1 | 92180-1413 | SHIM,50X61X0.90 | 1 |
| 1 | 130BA0635 | BOLT-FLANGED,6X35 | 1 |
| 1 | 130BA0814 | BOLT-FLANGED,8X14 | 1 |
| 2 | 132BA0616 | BOLT-FLANGED-SMALL,6X16 | 2 |
| 4 | 132BA0630 | BOLT-FLANGED-SMALL,6X30 | 4 |
| 1 | 481J2500 | CIRCLIP-TYPE-C,25MM | 1 |
| 6 | 600A1100 | BALL-STEEL,11/32 | 6 |
| 1 | 601A6305 | BEARING-BALL,#6305 | 1 |
| 1 | 670D3022 | O RING | 1 |
| 1 | 671D25145 | O RING | 1 |
| 1 | 92180-1414 | SHIM,50X61X1.00 | 1 |
| 1 | 92180-1415 | SHIM,50X61X1.10 | 1 |
| 1 | 92180-1416 | SHIM,50X61X1.20 | 1 |
| 1 | 92192-0716 | TUBE,7X12X760 | 1 |
| 1 | 92200-1635 | WASHER,10X24X2.5 | 1 |
| 1 | 92210-1225 | NUT,25MM | 1 |
| 1 | 92210-1351 | NUT,LOCK,10MM | 1 |
