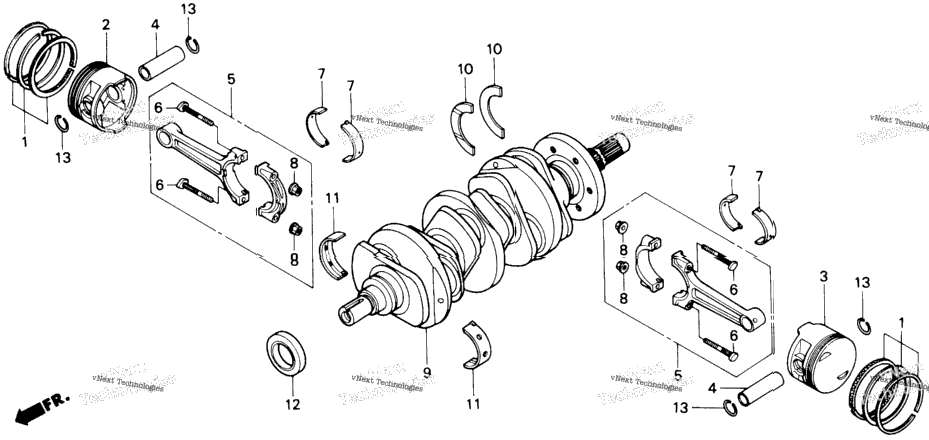

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 6 | 13011-MN5-305 | RING SET, PISTON (STD) (TEIKOKU) | 6 |
| 6 | 13011-MN5-306 | RING SET, PISTON (STD) (RIKEN) | 6 |
| 13021-MN5-305 | RING SET, PISTON (OVER SIZE) (0.25) (TEIKOKU) (Optional). | ||
| 13021-MN5-306 | RING SET, PISTON (OVER SIZE) (0.25) (RIKEN) (Optional). | ||
| 13031-MN5-305 | RING SET, PISTON (OVER SIZE) (0.50) (TEIKOKU) (Optional). | ||
| 13031-MN5-306 | RING SET, PISTON (OVER SIZE) (0.50) (RIKEN) (Optional). | ||
| 13041-MN5-305 | RING SET, PISTON (OVER SIZE) (0.75) (TEIKOKU) (Optional). | ||
| 13041-MN5-306 | RING SET, PISTON (OVER SIZE) (0.75) (RIKEN) (Optional). | ||
| 13051-MN5-305 | RING SET, PISTON (1.00) (TEIKOKU) (Optional). | ||
| 13051-MN5-306 | RING SET, PISTON (OS 1.00) (RIKEN) (Optional). | ||
| 13101-MN5-000 | PISTON, R. (STD) | ||
| 13103-MN5-305 | PISTON, R. (OVER SIZE) (0.25) (Optional). | ||
| 13103-MN5-306 | PISTON, R. (OVER SIZE) (0.25) (Optional). | ||
| 13103-MN5-316 | PISTON, R. (OVER SIZE) (0.25) (Optional). | ||
| 13104-MN5-305 | PISTON, R. (OVER SIZE) (0.50) (Optional). | ||
| 13104-MN5-306 | PISTON, R. (OVER SIZE) (0.50) (Optional). | ||
| 13104-MN5-316 | PISTON, R. (OVER SIZE) (0.50) (Optional). | ||
| 13105-MN5-305 | PISTON, R. (OVER SIZE) (0.75) (Optional). | ||
| 13105-MN5-306 | PISTON, R. (OVER SIZE) (0.75) (Optional). | ||
| 13106-MN5-305 | PISTON, R. (1.00) (Optional). | ||
| 13106-MN5-306 | PISTON, R. (1.00) (Optional). | ||
| 13106-MN5-316 | PISTON, R. (1.00) (Optional). | ||
| 13102-MN5-000 | PISTON, L. (STD) | ||
| 13107-MN5-305 | PISTON, L. (OVER SIZE) (0.25) (Optional). | ||
| 13107-MN5-306 | PISTON, L. (OVER SIZE) (0.25) (Optional). | ||
| 13108-MN5-305 | PISTON, L. (OVER SIZE) (0.50) (Optional). | ||
| 13109-MN5-305 | PISTON, L. (OVER SIZE) (0.75) (Optional). | ||
| 13109-MN5-306 | PISTON, L. (OVER SIZE) (0.75) (Optional). | ||
| 13111-MN5-305 | PISTON, L. (1.00) (Optional). | ||
| 13111-MN5-306 | PISTON, L. (1.00) (Optional). | ||
| 13111-MN5-316 | PISTON, L. (1.00) (Optional). | ||
| 13111-MN5-000 | PIN, PISTON | ||
| 13201-MN5-000 | ROD ASSY. A, CONNECTING | ||
| 13201-MN5-010 | ROD ASSY. A, CONNECTING | ||
| 13202-MN5-000 | ROD ASSY. B, CONNECTING | ||
| 13202-MN5-010 | ROD ASSY. B, CONNECTING | ||
| 13203-MN5-000 | ROD ASSY. C, CONNECTING | ||
| 13203-MN5-010 | ROD ASSY. C, CONNECTING | ||
| 13204-MN5-000 | ROD ASSY. D, CONNECTING | ||
| 13204-MN5-010 | ROD ASSY. D, CONNECTING | ||
| 13205-MN5-000 | ROD ASSY. E, CONNECTING | ||
| 13205-MN5-010 | ROD ASSY. E, CONNECTING | ||
| 12 | 13213-MC7-004 | BOLT, CONNECTING ROD | 12 |
| 12 | 13213-MS2-610 | BOLT, CONNECTING ROD | 12 |
| 12 | 13214-MN5-003 | BEARING A, CONNECTING ROD (BLUE) (DAIDO) | 12 |
| 12 | 13215-MN5-003 | BEARING B, CONNECTING ROD (BLACK) (DAIDO) | 12 |
| 12 | 13216-MN5-003 | BEARING C, CONNECTING ROD (BROWN) (DAIDO) | 12 |
| 12 | 13217-MN5-003 | BEARING D, CONNECTING ROD (GREEN) (DAIDO) | 12 |
| 12 | 13218-MN5-003 | BEARING E, CONNECTING ROD (YELLOW) (DAIDO) | 12 |
| 12 | 13215-ML7-000 | NUT, CONNECTING ROD | 12 |
| 13310-MN5-010 | CRANKSHAFT | ||
| 2 | 13312-MN5-003 | BEARING, THRUST | 2 |
| 13314-MN5-003 | BEARING A, MAIN (BLUE) (DAIDO) | ||
| 8 | 13315-MN5-003 | BEARING B, MAIN (BLACK) (DAIDO) | 8 |
| 13316-MN5-003 | BEARING C, MAIN (BROWN) (DAIDO) | ||
| 13316-MZ0-003 | BEARING C, MAIN (BROWN) | ||
| 8 | 13317-MN5-003 | BEARING D, MAIN (GREEN) (DAIDO) | 8 |
| 13318-MN5-003 | BEARING E, MAIN (YELLOW) (DAIDO) | ||
| 1 | 91201-MN5-003 | OIL SEAL (35X59X8) (ARAI) | 1 |
| 12 | 94601-18000 | CLIP, PISTON PIN (18MM) | 12 |
