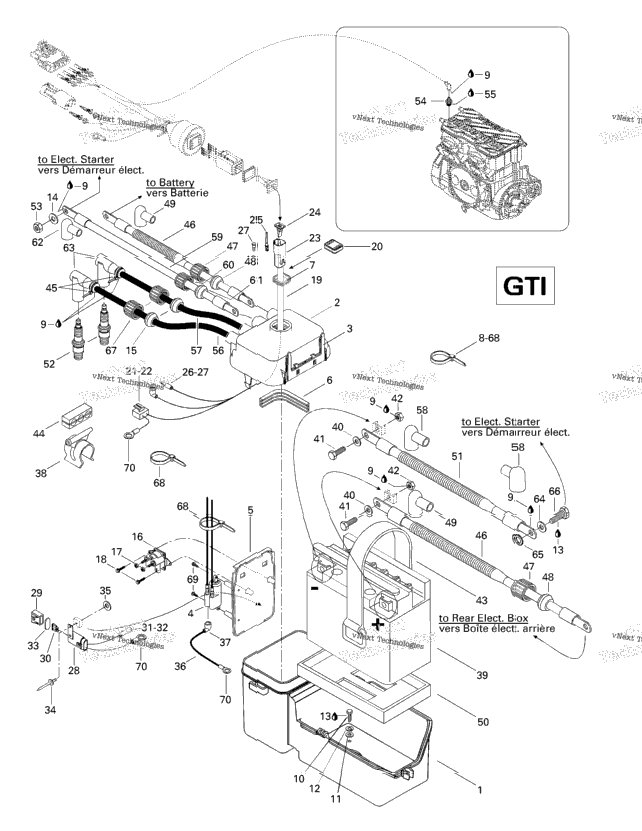

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278000901 | Base GTI 5641. | ||
| 278000825 | Cover GTI 5641. | ||
| 278000732 | Ground Plate GTI 5641. | ||
| 278001130 | IGNITION COIL GTI 5641. | ||
| 278000826 | Mounting Plate GTI 5641. | ||
| 278000440 | GASKET GTI 5641. | ||
| 293200030 | Gasket GTI 5641. | ||
| 1 | 293750002 | Tie Wrap 142 mm GTI 5641. | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g GTI 5641. | 1 |
| 4 | 211000074 | Screw Plastite GTI 5641. | 4 |
| 4 | 213200015 | Washer 5 mm GTI 5641. | 4 |
| 4 | 217351500 | Lock Washer 5 mm GTI 5641. | 4 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml GTI 5641. | 1 |
| 1 | 213200001 | Flat Washer 6 mm GTI 5641. | 1 |
| 278000682 | Grommet GTI 5641. | ||
| 1 | 278000513 | Starter Relay GTI 5641. | 1 |
| 2 | 212000001 | Elastic Stop Nut M6 GTI 5641. | 2 |
| 2 | 211000035 | Self Tapping Screw M6 x 10 GTI 5641. | 2 |
| 278000861 | Rear Electric Box Harness Includes 19 - 27. GTI 5641. | ||
| 2 | 293000052 | Sealing Cap GTI 5641. | 2 |
| 1 | 278001113 | Male Connector, 2 Circuits GTI 5641. | 1 |
| 1 | 278001114 | Female Terminal GTI 5641. | 1 |
| 1 | 270000137 | Female Connector, 6 Circuits GTI 5641. | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits GTI 5641. | 1 |
| 4 | 278000631 | Male Terminal GTI 5641. | 4 |
| 1 | 278000230 | Male Terminal GTI 5641. | 1 |
| 1 | 290964077 | Insulating Sheath (Male Terminal) GTI 5641. | 1 |
| 278000665 | Fuse Harness 15 Amp Includes 28 - 33. GTI 5641. | ||
| 1 | 278000345 | Fuse Cap GTI 5641. | 1 |
| 1 | 278000343 | Fuse, 15 Amperes GTI 5641. | 1 |
| 1 | 278001009 | Female Terminal GTI 5641. | 1 |
| 1 | 278001007 | Insulated Sheath GTI 5641. | 1 |
| 1 | 278000805 | Cushion GTI 5641. | 1 |
| 1 | 293150005 | Pop Rivet 3/16" GTI 5641. | 1 |
| 1 | 213200016 | Flat Washer, Emhart GTI 5641. | 1 |
| 278000664 | Ground Harness Includes 36 - 37. GTI 5641. | ||
| 1 | 278000228 | FEMALE TERMINAL GTI 5641. | 1 |
| 2 | 278000559 | COLLAR SUPPORT GTI 5641. | 2 |
| 1 | 278000712 | Battery GTI 5641. | 1 |
| 2 | 211200018 | FLAT WASHER 6 MM GTI 5641. | 2 |
| 2 | 211000045 | Battery Screw GTI 5641. | 2 |
| 2 | 211100022 | Battery Nut M6 GTI 5641. | 2 |
| 293850031 | STRAP GTI 5641. | ||
| 2 | 278000245 | 3 WIRE SUPPORT GTI 5641. | 2 |
| 2 | 293750002 | Tie Wrap 142 mm GTI 5641. | 2 |
| 278000511 | Engine Harness Includes 46 - 49. GTI 5641. | ||
| 278000100 | Electric Wire Cap GTI 5641. | ||
| 278000098 | GROMMET GTI 5641. | ||
| 1 | 278000020 | PROTECTION CAP GTI 5641. | 1 |
| 278000776 | Battery Lower Pad GTI 5641. | ||
| 278001117 | Battery Ground Cable GTI 5641. | ||
| 2 | 278000609 | Spark Plug, NGK BR8-ES GTI 5641. | 2 |
| 1 | 212000001 | Elastic Stop Nut M6 GTI 5641. | 1 |
| 1 | 278000965 | Temperature Sensor GTI 5641. | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml GTI 5641. | 1 |
| 1 | 278002198 | SPARK PLUG WIRE GTI 5641. | 1 |
| 278000322 | Spark Plug Wire 530 (MAG) GTI 5641. | ||
| 2 | 278000020 | PROTECTION CAP GTI 5641. | 2 |
| 278000975 | Starter Cable (Red) Includes 59 - 62. GTI 5641. | ||
| 2 | 278000237 | Spark Plug Cap GTI 5641. | 2 |
| 1 | 211200020 | Flat Washer 8 mm GTI 5641. | 1 |
| 213400001 | WASHER-LOCK TOOTHED DIN.6797A-A2 GTI 5641. | ||
| 210000001 | SCREW-HEX.CAP DIN.933A2 GTI 5641. | ||
| 2 | 293750001 | Tie Wrap 94 mm GTI 5641. | 2 |
| 250000005 | Hex. Tapping Screw GTI 5641. | ||
| 278000300 | Ring Terminal GTI 5641. |
