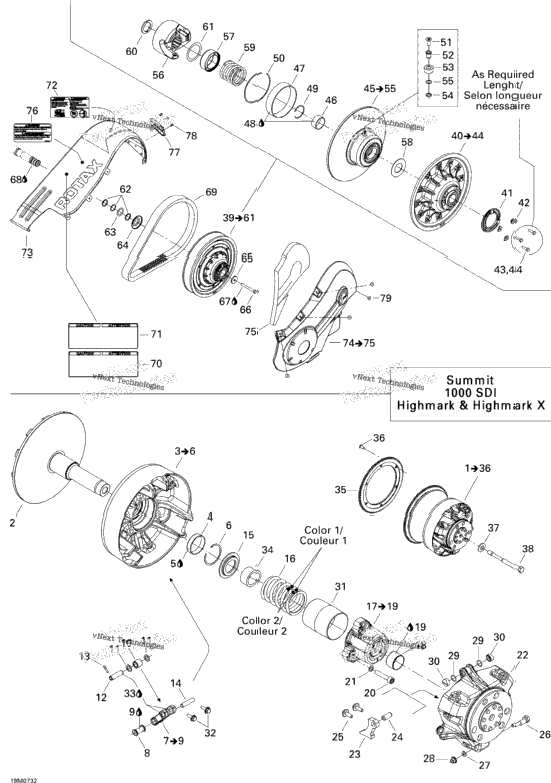

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley Ass'y Includes 1 to 36 | ||
| 1 | 417222913 | Fixed Flange Ass'y | 1 |
| 1 | 417222646 | Sliding Flange Ass'y Includes 3 to 6 | 1 |
| 1 | 417222758 | Bushing | 1 |
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| 1 | 293370037 | Circlip | 1 |
| 417222812 | LEVER ASS'Y Includes 7 to 9 | ||
| 3 | 417222762 | Roller | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417004309 | Pin | 3 |
| 3 | 417222813 | Pin Screw | 3 |
| 3 | 417009202 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 414991400 | SPRING, ROSE/WHITE North America | ||
| 417222371 | SPRING, GREEN/WHITE Europe | ||
| 1 | 417222759 | Spring Cover Ass'y Includes 17 to 19 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 417222634 | GOVERNOR CUP | ||
| 417222799 | RAMP 433 North America | ||
| 3 | 417222444 | Ramp 600 Europe | 3 |
| 3 | 250400009 | Rolled Pin 10 X 22 | 3 |
| 6 | 250000059 | Hex. Flange Screw M6 X 18 | 6 |
| 3 | 417222955 | CALIBRATION SCREW | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233061414 | Hex. Flange Nut M6 | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417222362 | Slider Shoe | 6 |
| 1 | 417009205 | Guard | 1 |
| 6 | 250000182 | Serrated Hex. Flange Screw M6 X 16 | 6 |
| 417222826 | BUSHING | ||
| 1 | 417222951 | Ring Gear | 1 |
| 6 | 250000243 | Torx Screw M8 X 16, Scotch Grip | 6 |
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 1 | 417300296 | DRIVE PULLEY BOLT | 1 |
| XXXX | Not Available As Spare Part - Driven Pulley Ass'y Includes 39 to 61 | ||
| 1 | 417126807 | FIXED FLANGE ASS'Y Includes 40 to 44 | 1 |
| 415005800 | Adjustment Ring | ||
| 415005900 | Adjustment Shim | ||
| 3 | 207162544 | Hex. Screw M6 X 25 | 3 |
| 3 | 207162244 | HEX. SCREW M6 X 22 | 3 |
| 1 | 417127040 | SLIDDING FLANGE ASS'Y Includes 45 to 55 | 1 |
| 1 | 417127042 | BUSHING | 1 |
| 1 | 417127043 | BUSHING | 1 |
| 1 | 413408300 | Loctite, Black Max, 3 ml | 1 |
| 371911200 | CIRCLIP | ||
| 1 | 417126878 | CIRCLIP | 1 |
| 3 | 250000279 | Torx Screw M8, Scotch Grip | 3 |
| 3 | 417127015 | Stud | 3 |
| 3 | 417126892 | Roller | 3 |
| 417126823 | V-CIRCLIP | ||
| 3 | 417126797 | WASHER | 3 |
| 417126937 | Cam Ass'y | ||
| 1 | 417126381 | GUARD | 1 |
| 1 | 504099600 | STOPPER WASHER | 1 |
| 1 | 414978300 | Release Spring, Purple | 1 |
| 417126734 | HALF KEY | ||
| 1 | 417126322 | SWIVEL ABUTMENT | 1 |
| 1 | 417300252 | Spacer | 1 |
| 1 | 417300265 | Spacer | 1 |
| 1 | 504112000 | Shim | 1 |
| 417300238 | PROTECTOR | ||
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207087544 | HEX. SCREW M8 X 75 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 417300189 | Drive Belt | 1 |
| 1 | 516003278 | LABEL North America | 1 |
| 516003279 | Label Europe | ||
| 1 | 516002674 | EMERGENCY STARTING LABEL | 1 |
| 1 | 417300329 | BELT GUARD | 1 |
| 1 | 417300301 | SIDE PROTECTOR ASS'Y Includes 74 to 75 | 1 |
| 417300246 | Foam | ||
| 1 | 516002670 | WARNING DECAL, SECURITY BELT GUARD | 1 |
| 417300216 | BELT GUARD BRACKET | ||
| 3 | 390909200 | Avex Rivet | 3 |
| 4 | 293150103 | Pop Rivet 3/16" | 4 |
