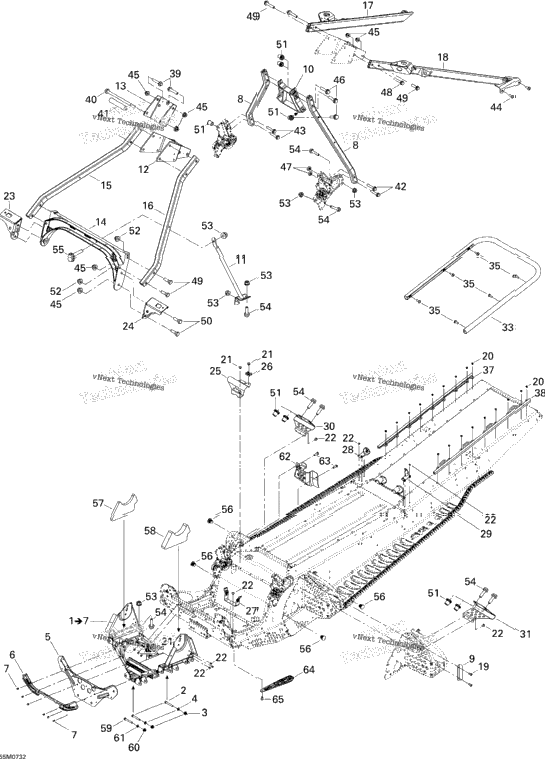

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 518325433 | FRONT MEMBER ASS'Y Includes 1 to 7 | 1 |
| 2 | 207085544 | Hex. Screw M8 X 55 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 1 | 518325422 | FRONT PLATE | 1 |
| 518324727 | Front Plate Reinforcement | ||
| 6 | 390909100 | Avex Rivet | 6 |
| 518324228 | HANDLE SUPPORT | ||
| 1 | 518317504 | CABLE PROTECTOR | 1 |
| 1 | 518323811 | HANDLE SUPPORT REINFORCEMENT | 1 |
| 518324080 | Brace, Black | ||
| 1 | 518323676 | ATTACHMENT BRACKET | 1 |
| 1 | 518324046 | STEERING COLUMN SUPPORT | 1 |
| 518324265 | Upper Cross Member | ||
| 518324285 | RH FRONT BRACE | ||
| 1 | 518324286 | LH FRONT BRACE | 1 |
| 1 | 518324182 | RH MEMBER | 1 |
| 518324183 | LH Member | ||
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
| 20 | 390402400 | Pop Rivet 3/16" 162" Track | 20 |
| 18 | 390402400 | Pop Rivet 3/16" 151" Track | 18 |
| 14 | 390909100 | Avex Rivet | 14 |
| 18 | 390909200 | Avex Rivet | 18 |
| 1 | 518324148 | RH SHOCK BRACKET | 1 |
| 518324150 | LH Shock Bracket | ||
| 1 | 518323584 | HOSE SUPPORT | 1 |
| 1 | 293750031 | Tie Rap Mount | 1 |
| 1 | 518202100 | Belt Guard Bracket | 1 |
| 518323769 | RH BRACKET, BLACK | ||
| 1 | 518323770 | LH BRACKET, BLACK | 1 |
| 1 | 518323948 | RH TOE HOLD | 1 |
| 1 | 518324392 | LH TOE HOLD | 1 |
| 518324833 | REAR BUMPER 151" Track | ||
| 1 | 518324853 | REAR BUMPER 162" Track | 1 |
| 6 | 236282084 | Hex. Screw M8 X 20 | 6 |
| 1 | 518324940 | RH WIRE PROTECTOR 151" Track | 1 |
| 1 | 518324941 | RH WIRE PROTECTOR 162" Track | 1 |
| 1 | 518324942 | LH WIRE PROTECTOR 151" Track | 1 |
| 1 | 518324943 | LH WIRE PROTECTOR 162" Track | 1 |
| 2 | 207684044 | Hex. Flange Screw M8 X 40 | 2 |
| 1 | 230684044 | HEX. FLANGED SCREW M8 X 140 | 1 |
| 1 | 518324048 | SPACER | 1 |
| 2 | 250000253 | Hex. Flange Screw M6 X 1.0 X 30 | 2 |
| 2 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 4 | 250000154 | Torx Screw M8 X 13 | 4 |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 | 11 |
| 6 | 250000253 | Hex. Flange Screw M6 X 1.0 X 30 | 6 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 1 | 207685044 | Hex. Flange Screw M8 X 50 | 1 |
| 7 | 207683544 | Hex. Flange Screw M8 X 35 | 7 |
| 4 | 207182544 | Hex. Screw M8 X 25 | 4 |
| 11 | 415107300 | Insert | 11 |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 7 |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 | 9 |
| 1 | 207663544 | Hex. Flange Screw M6 X 35 | 1 |
| 4 | 518321954 | Panel Fastener | 4 |
| 1 | 518324372 | RH FRONT FOAM | 1 |
| 1 | 518323007 | LH FRONT FOAM | 1 |
| 1 | 207085544 | Hex. Screw M8 X 55 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 234081410 | Flat Washer 8 mm | 1 |
| 518324609 | Footrest Extension | ||
| 2 | 207661644 | Hex. Flange Screw M6 X 16 | 2 |
| 2 | 518324438 | FRONT PROTECTOR | 2 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
