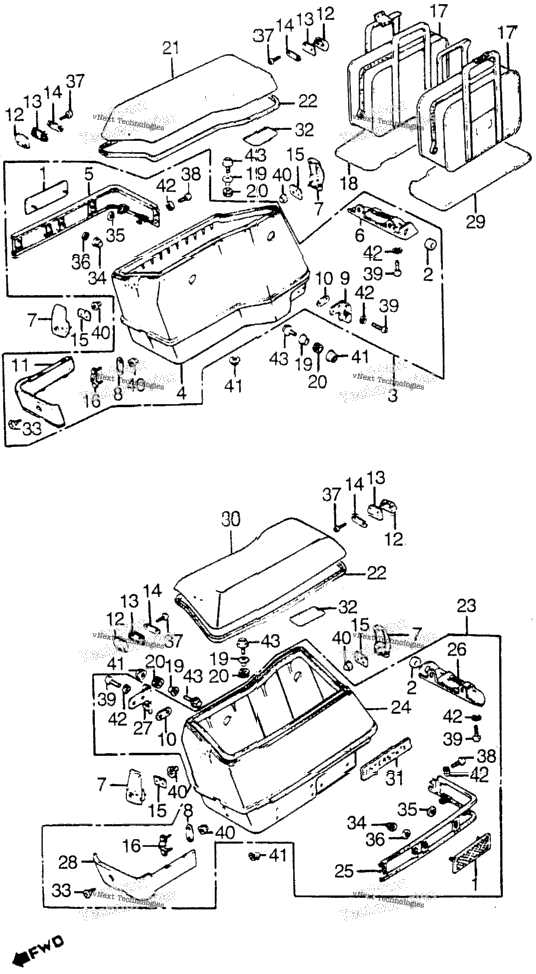

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 33742-MG9-771 | REFLECTOR, RR. REFLEX | 2 |
| 80102-425-770 | GROMMET, TAILLIGHT CABLE | ||
| 81200-MG9-680ZA | SADDLEBAG ASSY., R. (LOWER) *R114CU* (CANDY WINE BERRY RED-U) (N/A: SEE COMPONENTS) | ||
| 81200-MG9-680ZB | SADDLEBAG ASSY., R. (LOWER) *NH144M* (STARSHINE SILVER METALLIC) (N/A: SEE COMPONENTS) | ||
| 81200-MG9-680ZC | SADDLEBAG ASSY., R. (LOWER) *PB142M* (TELSTAR BLUE METALLIC) (N/A: SEE COMPONENTS) | ||
| 81210-MG9-680ZA | SADDLEBAG ASSY., R. (LOWER) *R114CU* (CANDY WINE BERRY RED-U) (N/A: SEE COMPONENTS) | ||
| 81210-MG9-680ZB | SADDLEBAG ASSY., R. (LOWER) *NH144M* (STARSHINE SILVER METALLIC) | ||
| 81210-MG9-680ZC | SADDLEBAG ASSY., R. (LOWER) *PB142M* (TELSTAR BLUE METALLIC) | ||
| 81213-MG9-770 | MOLDING, R. SADDLEBAG | ||
| 81214-MG9-770 | COVER, R. SADDLEBAG (LOWER) | ||
| 81215-MG9-771 | LOCK ASSY., SADDLEBAG | ||
| 81216-MG9-680 | PLATE, PROTECTOR SETTING | ||
| 81217-MG9-770 | PLATE, R. FENDER SETTING | ||
| 81218-MG9-770 | PLATE, NUT | ||
| 81219-MG9-770 | PROTECTOR, R. SADDLEBAG | ||
| 81220-MG9-770 | HOOK, LOCK | ||
| 81221-MG9-770 | RUBBER, HOOK | ||
| 81222-MG9-770 | PLATE, HOOK SETTING | ||
| 81223-MG9-770 | PLATE, LOCK SETTING | ||
| 81224-MG9-680 | BRACKET, PROTECTOR SETTING | ||
| 81228-MG9-770 | BAG, SADDLEBAG (INNER) | ||
| 81244-MG9-680 | FLOOR MAT, R. SADDLEBAG | ||
| 81245-463-770 | COLLAR, SADDLEBAG SETTING | ||
| 81246-463-770 | RUBBER A, SADDLEBAG SETTING | ||
| 81250-MG9-770ZA | SADDLEBAG, R. (UPPER) *R114CU* (CANDY WINE BERRY RED-U) | ||
| 81260-MG9-770ZA | SADDLEBAG ASSY., R. (UPPER) *R114CU* (CANDY WINE BERRY RED-U) (N/A: SEE COMPONENTS) | ||
| 81250-MG9-770ZF | SADDLEBAG ASSY., R. (UPPER) *NH144M* (STARSHINE SILVER METALLIC) | ||
| 81250-MG9-770ZG | SADDLEBAG ASSY., R. (UPPER) *PB142M* (TELSTAR BLUE METALLIC) | ||
| 81260-MG9-770ZF | SADDLEBAG ASSY., R. (UPPER) *NH144M* (STARSHINE SILVER METALLIC) | ||
| 81260-MG9-770ZG | SADDLEBAG ASSY., R. (UPPER) *PB142M* (TELSTAR BLUE METALLIC) | ||
| 81325-MG9-770 | RUBBER, SADDLEBAG SEAL | ||
| 4 | 95700-06028-00 | BOLT, FLANGE (6X28) | 4 |
| 4 | 95701-06028-00 | BOLT, FLANGE (6X28) | 4 |
| 4 | 96000-06028-00 | BOLT, FLANGE (6X28) | 4 |
| 4 | 96001-06028-00 | BOLT, FLANGE (6X28) | 4 |
| 81400-MG9-680ZA | SADDLEBAG ASSY., L. (LOWER) *R114CU* (CANDY WINE BERRY RED-U) (N/A: SEE COMPONENTS) | ||
| 81400-MG9-680ZB | SADDLEBAG ASSY., L. (LOWER) *NH144M* (STARSHINE SILVER METALLIC) (N/A: SEE COMPONENTS) | ||
| 81400-MG9-680ZC | SADDLEBAG ASSY., L. (LOWER) *PB142M* (TELSTAR BLUE METALLIC) (N/A: SEE COMPONENTS) | ||
| 81410-MG9-680ZA | SADDLEBAG ASSY., L. (LOWER) *R114CU* (CANDY WINE BERRY RED-U) | ||
| 81410-MG9-680ZB | SADDLEBAG ASSY., L. (LOWER) *NH144M* (STARSHINE SILVER METALLIC) | ||
| 81410-MG9-680ZC | SADDLEBAG ASSY., L. (LOWER) *PB142M* (TELSTAR BLUE METALLIC) | ||
| 81413-MG9-770 | MOLDING, L. SADDLEBAG | ||
| 81414-MG9-770 | COVER, L. SADDLEBAG (LOWER) | ||
| 81417-MG9-770 | PLATE, L. FENDER SETTING | ||
| 81419-MG9-770 | PROTECTOR, L. SADDLEBAG | ||
| 81444-MG9-680 | FLOOR MAT, L. SADDLEBAG | ||
| 81450-MG9-770ZA | SADDLEBAG, L. (UPPER) *R114CU* (CANDY WINE BERRY RED-U) | ||
| 81450-MG9-770ZF | SADDLEBAG ASSY., L. (UPPER) *NH144M* (STARSHINE SILVER METALLIC) | ||
| 81450-MG9-770ZG | SADDLEBAG ASSY., L. (UPPER) *PB142M* (TELSTAR BLUE METALLIC) | ||
| 87111-MG9-770 | EMBLEM, SADDLEBAG | ||
| 87520-MG9-770 | LABEL, TRUNK SADDLEBAG CAUTION | ||
| 2 | 90114-MG9-770 | SCREW, PROTECTOR SETTING | 2 |
| 4 | 90201-428-900 | NUT, CAP (6MM) | 4 |
| 90505-MG9-770 | WASHER, SPECIAL (6MM) | ||
| 2 | 90525-428-900 | WASHER, PLAIN (6MM) | 2 |
| 8 | 93500-04006-0G | SCREW, PAN (4X6) | 8 |
| 4 | 93500-04008-0G | SCREW, PAN (4X8) | 4 |
| 12 | 93500-04010-0A | SCREW, PAN (4X10) | 12 |
| 24 | 94021-04070-0S | NUT, CAP (4MM) | 24 |
| 8 | 94050-06000 | NUT, FLANGE (6MM) | 8 |
| 94111-04700 | WASHER, SPRING (4MM) | ||
| 8 | 95701-06028-00 | BOLT, FLANGE (6X28) | 8 |
