Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

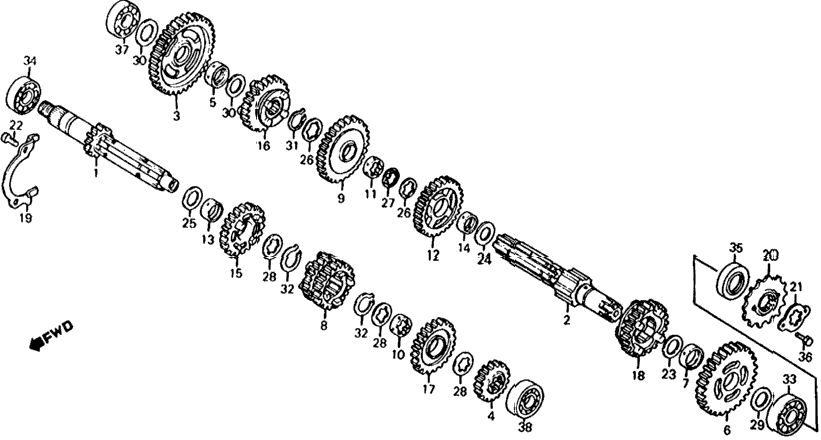

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 23211-HA5-000 | MAINSHAFT, TRANSMISSION | ||
| 23220-HA5-000 | COUNTERSHAFT, TRANSMISSION | ||
| 23411-HA5-000 | GEAR, COUNTERSHAFT LOW (44T) | ||
| 23421-HA5-000 | GEAR, MAINSHAFT SECOND (20T) | ||
| 23422-HA5-000 | BUSH | ||
| 1 | 23431-HA5-000 | GEAR, COUNTERSHAFT SECOND (41T) | 1 |
| 1 | 23431-HA5-670 | GEAR, COUNTERSHAFT SECOND (41T) | 1 |
| 23432-HA5-000 | BUSH (24MM) | ||
| 23441-HA5-000 | GEAR, MAINSHAFT THIRD & FOURTH (23T & 26T) | ||
| 23441-HA5-670 | GEAR, MAINSHAFT THIRD & FOURTH (23T/26T) | ||
| 23451-HA5-000 | GEAR, COUNTERSHAFT THIRD (37T) | ||
| 23452-HA5-000 | BUSH, SPLINE | ||
| 23452-HA5-670 | BUSH, SPLINE MAINSHAFT SIXTH | ||
| 23453-HA5-000 | BUSH, SPLINE | ||
| 23471-HA5-000 | GEAR, COUNTERSHAFT FOURTH (34T) | ||
| 23472-HA5-000 | BUSH | ||
| 23473-HA5-000 | BUSH | ||
| 23481-HA5-000 | GEAR, MAINSHAFT FIFTH (29T) | ||
| 23491-HA5-000 | GEAR, COUNTERSHAFT FIFTH (32T) | ||
| 23491-HA5-670 | GEAR, COUNTERSHAFT FIFTH (32T) | ||
| 23501-HA5-000 | GEAR, MAINSHAFT SIXTH (31T) | ||
| 23501-HA5-670 | GEAR, MAINSHAFT SIXTH | ||
| 23501-HA5-671 | GEAR, MAINSHAFT SIXTH (31T) | ||
| 23511-HA5-000 | GEAR, COUNTERSHAFT SIXTH (29T) | ||
| 23511-HA5-670 | GEAR, COUNTERSHAFT SIXTH (29T) | ||
| 1 | 23521-HA0-000 | PLATE, BEARING SETTING | 1 |
| 23801-HA5-000 | SPROCKET, DRIVE (13T) | ||
| 1 | 23811-430-000 | PLATE, DRIVE SPROCKET FIXING | 1 |
| 1 | 23811-HA5-670 | PLATE, FIXING | 1 |
| 2 | 90001-KF0-000 | BOLT, SOCKET (6X16) | 2 |
| 2 | 96600-06016-00 | BOLT, SOCKET (6X16) | 2 |
| 1 | 90402-HA5-000 | WASHER, THRUST (24MM) | 1 |
| 1 | 90456-MA6-000 | WASHER, THRUST (25MM) | 1 |
| 90456-323-000 | WASHER, THRUST (22MM) | ||
| 90461-286-000 | WASHER B, THRUST (25MM) | ||
| 1 | 90462-323-000 | WASHER, LOCK (25MM) | 1 |
| 3 | 90464-KE8-000 | WASHER, SPLINE (22MM) | 3 |
| 1 | 90455-ML7-000 | WASHER B, THRUST (22MM) (BLUE) | 1 |
| 1 | 90502-360-000 | WASHER, THRUST (22MM) | 1 |
| 2 | 90454-428-000 | WASHER, THRUST (20MM) | 2 |
| 2 | 90554-700-000 | WASHER, THRUST | 2 |
| 1 | 90601-107-000 | CIRCLIP (25MM) | 1 |
| 2 | 90601-329-000 | CIRCLIP (22MM) | 2 |
| 91002-HA5-003 | BEARING, SPECIAL (22) (KOYO) | ||
| 1 | 91005-KF0-008 | BEARING, RADIAL BALL (62/22) | 1 |
| 1 | 91005-KS4-003 | BEARING, RADIAL BALL (62/22) | 1 |
| 91205-HA5-000 | OIL SEAL (22X35X8) | ||
| 2 | 92000-06010 | BOLT, HEX. (6X10) | 2 |
| 2 | 92101-06010-0A | BOLT, HEX. (6X10) | 2 |
| 1 | 96100-62040-00 | BEARING, RADIAL BALL (6204) | 1 |
| 1 | 96140-62030-00 | BEARING, RADIAL BALL (6203U) | 1 |
