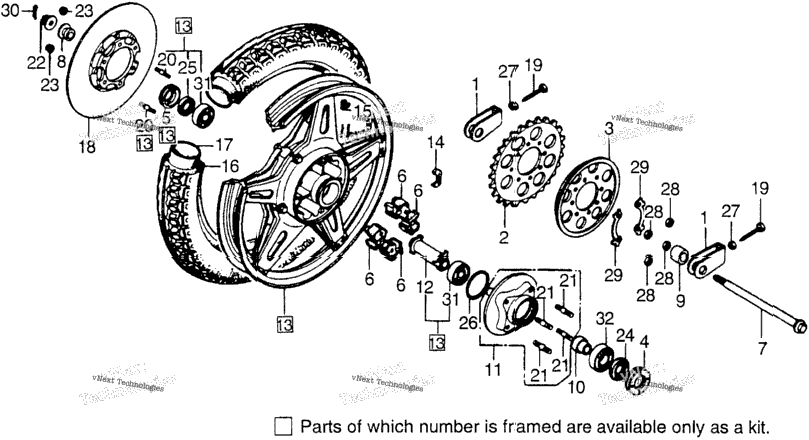

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 40543-392-000 | ADJUSTER, DRIVE CHAIN | ||
| 40543-405-000 | ADJUSTER, DRIVE CHAIN | ||
| 41201-410-000 | SPROCKET, FINAL DRIVEN (43T) | ||
| 41211-405-000 | PLATE, SPROCKET SIDE | ||
| 41231-283-000 | RETAINER, RR. WHEEL BEARING | ||
| 1 | 41231-286-000 | RETAINER, RR. WHEEL BEARING | 1 |
| 4 | 41241-300-050 | DAMPER, RR. WHEEL | 4 |
| 42301-393-000 | AXLE, RR. WHEEL | ||
| 42301-425-870 | AXLE, RR. WHEEL | ||
| 42311-357-010 | COLLAR, RR. WHEEL SIDE | ||
| 42311-392-000 | COLLAR, RR. WHEEL SIDE | ||
| 42311-425-870 | COLLAR, RR. WHEEL SIDE | ||
| 42605-393-000 | SLEEVE, RR. AXLE | ||
| 42610-405-000 | FLANGE, FINAL DRIVEN | ||
| 42620-392-000 | COLLAR, RR. AXLE DISTANCE | ||
| 42660-410-670 | WHEEL SUB-ASSY., RR. | ||
| 42703-410-003 | MARK, RR. SPOKE PLATE | ||
| 42705-410-000 | WEIGHT, BALANCE (20G) | ||
| 1 | 42706-410-000 | WEIGHT, BALANCE (30G) | 1 |
| 42711-341-003 | TIRE, RR. (4.00H-18) (BS) | ||
| 1 | 08400-34001 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-KS7-641 | TUBE, TIRE (110/100-18) (DUNLOP) | 1 |
| 1 | 42712-KT1-671 | TUBE, TIRE (100/100-18) (INOUE) | 1 |
| 1 | 42712-KV6-009 | TUBE, TIRE (4.60-18) (YOKOHAMA) | 1 |
| 1 | 42712-300-000 | TUBE, TIRE (4.00-18) | 1 |
| 42712-300-003 | TUBE, TIRE (4.00-18) (BS) | ||
| 1 | 42712-300-004 | TUBE, TIRE (3.75/4.00-18) (DUNLOP) | 1 |
| 1 | 42712-310-004 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-312-003 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-340-006 | TUBE, TIRE (4.00-18) (NITTO) | 1 |
| 1 | 42712-374-003 | TUBE, TIRE (3.75-18) (BS) | 1 |
| 1 | 42712-400-003 | TUBE, TIRE (4.10-18) (BS) | 1 |
| 1 | 42712-425-003 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-435-003 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 44712-300-004 | TUBE, TIRE (DUNLOP) | 1 |
| 43120-371-000 | DISK, RR. BRAKE | ||
| 2 | 90119-300-000 | BOLT, CHAIN ADJUSTING | 2 |
| 90125-329-010 | BOLT, STUD (8X45) | ||
| 90128-341-000 | BOLT, STUD (12X54) | ||
| 90305-393-000 | NUT, AXLE (18MM) | ||
| 6 | 90309-357-000 | NUT, HEX. (8MM) | 6 |
| 90753-283-000 | OIL SEAL (34X55X9) | ||
| 1 | 91253-286-013 | DUST SEAL (30X45X9.5) | 1 |
| 1 | 91258-300-013 | O-RING (68X2.6) | 1 |
| 2 | 94002-080000S | NUT,HEX 8MM | 2 |
| 4 | 94030-12000 | NUT, HEX. (12MM) | 4 |
| 94108-17000 | WASHER A7, TONGUED (SOURCE: VINTAGE PARTS INC.) | ||
| 1 | 94201-40300 | PIN, COTTER (4.0X30) | 1 |
| 2 | 96140-63040-10 | BEARING, RADIAL BALL (6304U) | 2 |
| 96140-63050-10 | BEARING, RADIAL BALL (6305U) |
