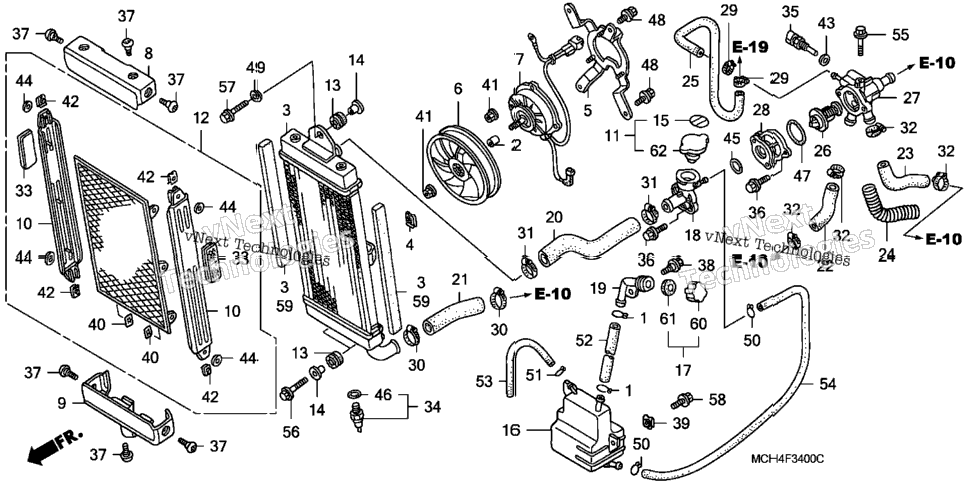

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 17316-MN1-670 | CLIP A, BREATHER TUBE | 2 |
| 1 | 19010-MCH-C20 | RADIATOR | 1 |
| 1 | 19010-MCH-003 | RADIATOR | 1 |
| 2 | 19014-KEA-003 | NUT, SETTING | 2 |
| 19015-MCH-003 | SHROUD | ||
| 1 | 19020-MCF-013 | FAN, COOLING | 1 |
| 1 | 19030-MCH-003 | MOTOR ASSY., FAN | 1 |
| 1 | 19041-MCH-000 | COVER, RADIATOR (UPPER) | 1 |
| 1 | 19042-MCH-000 | COVER, RADIATOR (LOWER) | 1 |
| 19043-MCH-010 | COVER, RADIATOR SIDE | ||
| 1 | 19045-GBF-770 | CAP, RADIATOR Use up to Frame SN 4A200290 | 1 |
| 1 | 19045-MZ1-621 | CAP, RADIATOR Use up to Frame SN 4A200290 | 1 |
| 1 | 19037-GEE-710 | CAP, RADIATOR Use from Frame SN 4A200291 | 1 |
| 1 | 19037-HN2-003 | CAP, RADIATOR Use from Frame SN 4A200291 | 1 |
| 19045-MCH-671 | GRILLE ASSY., RADIATOR | ||
| 3 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 3 |
| 3 | 19052-MN8-000 | COLLAR, RADIATOR MOUNTING | 3 |
| 1 | 19055-MV9-881 | SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) | 1 |
| 1 | 19055-MV9-921 | SEAL, RADIATOR CAP (ENGLISH) Use up to Frame SN 4A200290 | 1 |
| 1 | 19055-HN2-003 | SEAL, RADIATOR CAP (ENGLISH) Use from Frame SN 4A200291 | 1 |
| 1 | 19101-MCH-000 | TANK, RADIATOR RESERVE | 1 |
| 1 | 19105-MG8-000 | CAP ASSY., RESERVE TANK | 1 |
| 1 | 19106-MCH-003 | NECK ASSY., FILLER | 1 |
| 19111-MR1-000 | NECK, RESERVE TANK FILLER | ||
| 1 | 19116-MCH-010 | HOSE, RADIATOR (UPPER) | 1 |
| 1 | 19117-MCH-010 | HOSE, RADIATOR (LOWER) | 1 |
| 1 | 19118-MCH-000 | HOSE, FR. OUTLET WATER | 1 |
| 1 | 19119-MCH-010 | HOSE, RR. OUTLET WATER | 1 |
| 19120-MCH-000 | GUARD, WIRE | ||
| 1 | 19121-MCH-000 | HOSE, THERMOBODY | 1 |
| 1 | 19300-MBT-003 | THERMOSTAT Use up to Frame SN 4A200060 | 1 |
| 1 | 19300-MCH-A00 | THERMOSTAT ASSY. Use from Frame SN 4A200061 | 1 |
| 19311-MCH-305 | CASE, THERMOSTAT Use up to Frame SN 4A200060 | ||
| 19311-MCH-315 | CASE, THERMOSTAT Use from Frame SN 4A200061 | ||
| 19313-MCH-305 | COVER, THERMOSTAT Use up to Frame SN 4A200060 | ||
| 1 | 19313-MCH-315 | COVER, THERMOSTAT Use from Frame SN 4A200061 | 1 |
| 2 | 19507-MAT-000 | CLAMP, RADIATOR HOSE | 2 |
| 2 | 19509-MM5-003 | CLAMP, RADIATOR HOSE | 2 |
| 2 | 19516-GAG-003 | CLAMP, HOSE (30-37MM) | 2 |
| 4 | 19516-ML7-691 | CLAMP, HOSE (24-32MM) | 4 |
| 2 | 33745-MBA-670 | REFLECTOR SET, FR. REFLEX | 2 |
| 1 | 37760-MT2-003 | SWITCH ASSY., THERMO | 1 |
| 1 | 37870-MBG-003 | SENSOR ASSY., WATER TEMPERATURE | 1 |
| 4 | 90029-888-000 | BOLT, FLANGE (6X16) (CT200) | 4 |
| 7 | 90106-KY2-701 | SCREW, PAN (6X11) | 7 |
| 1 | 90116-ME9-000 | BOLT, FLANGE (6MM) | 1 |
| 2 | 90305-GK8-000 | NUT, CLIP (6MM) | 2 |
| 6 | 90310-MY9-000 | NUT, SPEED (5MM) | 6 |
| 4 | 90315-MK3-003 | NUT, SERRATE (5MM) | 4 |
| 4 | 90320-MM5-000 | NUT, SPRING (6MM) | 4 |
| 1 | 90454-MC7-000 | WASHER, SPECIAL (12MM) | 1 |
| 4 | 90546-KA4-004 | WASHER, PLAIN (6MM) | 4 |
| 1 | 91302-PF0-003 | O-RING (26.9X2.4) (NOK) | 1 |
| 1 | 91304-KG8-000 | O-RING (27X2.4) | 1 |
| 1 | 91304-KG8-003 | O-RING (27X2.4) | 1 |
| 1 | 91307-PH7-660 | O-RING (13.5X1.4) | 1 |
| 1 | 91307-611-000 | O-RING (13.5X1.4) | 1 |
| 1 | 91311-KE8-000 | O-RING (47.5X2) Use up to Frame SN 4A200060 | 1 |
| 1 | 19305-KV3-010 | RUBBER, THERMOSTAT Use from Frame SN 4A200061 | 1 |
| 4 | 93401-06012-08 | BOLT-WASHER (6X12) | 4 |
| 1 | 94103-06700 | WASHER, PLAIN (6MM) | 1 |
| 2 | 95002-02120 | CLIP, TUBE (B12) | 2 |
| 1 | 95002-70000 | CLIP, TUBE (C11) | 1 |
| 95005-14001-30M | BULK HOSE, VACUUM (14X1000) (14X230) | ||
| 1 | 95005-70003-30M | BULK HOSE, VACUUM (7X3000) (7X240) | 1 |
| 1 | 95005-750012-0M | BULK TUBE,TB75-1M | 1 |
| 1 | 95701-06012-08 | BOLT, FLANGE (6X12) | 1 |
| 2 | 95701-06025-07 | BOLT, FLANGE (6X25) | 2 |
| 1 | 95701-06028-07 | BOLT, FLANGE (6X28) | 1 |
| 2 | 95701-06016-08 | BOLT, FLANGE (6X16) | 2 |
| 2 | 95801-06016-08 | BOLT, FLANGE (6X16) | 2 |
| 2 | 19011-MCH-300 | SEAL, RADIATOR SIDE | 2 |
| 1 | 19104-ME9-000 | CAP, RESERVE TANK | 1 |
| 1 | 19107-MG8-000 | GASKET, RESERVE TANK | 1 |
| 1 | 19037-KA4-701 | CAP | 1 |
