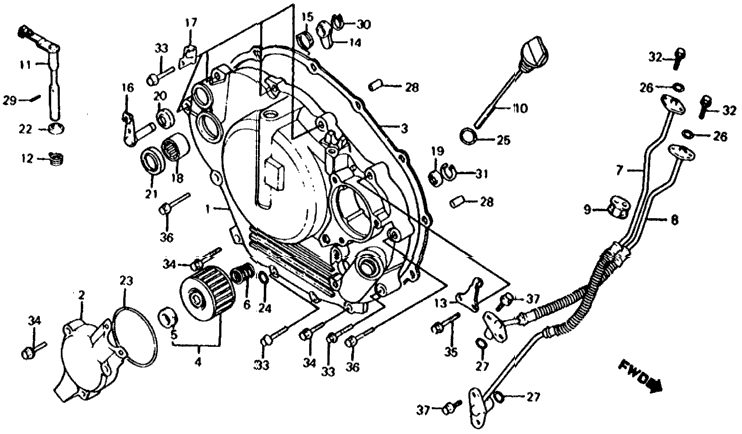

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 11330-HA5-000 | COVER, R. CRANKCASE | ||
| 11330-HA5-670 | COVER, R. CRANKCASE | ||
| 11333-HA5-000 | COVER, OIL FILTER | ||
| 11333-HA5-670 | COVER, OIL FILTER | ||
| 1 | 11394-HA0-000 | GASKET, R. CRANKCASE COVER | 1 |
| 1 | 11394-HA0-306 | GASKET, R. CRANKCASE COVER | 1 |
| 1 | 15410-KF0-305 | ELEMENT, OIL FILTER | 1 |
| 1 | 15410-KF0-315 | ELEMENT, OIL FILTER | 1 |
| 1 | 15412-KF0-010 | ELEMENT, OIL FILTER | 1 |
| 1 | 15413-MC8-000 | RUBBER, FILTER | 1 |
| 1 | 15414-KF0-000 | SPRING, OIL FILTER ELEMENT SETTING | 1 |
| 15515-HA5-000 | HOSE A, OIL | ||
| 15515-HA5-003 | HOSE A, OIL | ||
| 15515-HA5-671 | HOSE A, OIL | ||
| 15517-HA5-003 | HOSE B, OIL | ||
| 15517-HA5-671 | HOSE B, OIL | ||
| 15519-HA5-000 | RUBBER, OIL HOSE MOUNTING | ||
| 15650-HA5-000 | DIPSTICK, OIL | ||
| 22810-HA5-000 | LEVER, CLUTCH | ||
| 1 | 22815-HA5-000 | SPRING, CLUTCH LEVER | 1 |
| 22838-HA5-000 | HOLDER, CLUTCH WIRE | ||
| 28271-427-000 | FOLLOWER, CAM | ||
| 28274-HA5-000 | SPRING, FOLLOWER | ||
| 28280-HA5-000 | SHAFT, FOLLOWER | ||
| 28287-HA5-000 | RECEIVER B, DECOMPRESSION | ||
| 1 | 91106-KF0-008 | BEARING, NEEDLE (20X26X12) | 1 |
| 1 | 91201-HM3-A61 | OIL SEAL (14X22X5) (ARAI) | 1 |
| 1 | 91201-KF0-003 | OIL SEAL (14X22X5) (ARAI) | 1 |
| 1 | 91201-KF0-004 | OIL SEAL (14X22X5) (NOK) | 1 |
| 1 | 91201-KF0-005 | OIL SEAL (14X22X5) | 1 |
| 1 | 91203-MC8-003 | OIL SEAL (12X22X5) (ARAI) | 1 |
| 1 | 91201-965-000 | OIL SEAL (12X22X5) | 1 |
| 1 | 91204-KF0-003 | OIL SEAL (20X28X5) | 1 |
| 1 | 91204-KK0-003 | OIL SEAL (12X18X5) (ARAI) | 1 |
| 1 | 91302-KF0-003 | O-RING (54X2.4) (ARAI) | 1 |
| 1 | 91301-671-671 | O-RING (1.9X11) | 1 |
| 91303-HA0-000 | O-RING (11X1.9) (ARAI) | ||
| 1 | 91303-HA0-003 | O-RING (11X1.9) (ARAI) | 1 |
| 1 | 91303-HA0-004 | O-RING (11X1.9) (NOK) | 1 |
| 1 | 91307-KF0-003 | O-RING (18X3) (ARAI) | 1 |
| 91308-HA5-003 | O-RING (9.6X2.4) | ||
| 2 | 91320-HA5-000 | O-RING (11.8X2.4) | 2 |
| 2 | 91320-HA5-003 | O-RING (11.8X2.4) | 2 |
| 2 | 91302-ZE9-000 | O-RING (11.8X2.4) | 2 |
| 2 | 91302-ZE9-003 | O-RING (11.8X2.4) | 2 |
| 2 | 91320-MJ6-003 | O-RING (11.8X2.4) | 2 |
| 2 | 94301-08140 | PIN, DOWEL (8X14) | 2 |
| 1 | 94305-30102 | PIN, SPRING (3X10) | 1 |
| 1 | 94510-10000 | CIRCLIP, OUTER (10MM) | 1 |
| 1 | 94520-24000 | CIRCLIP (INNER) (24MM) | 1 |
| 4 | 95700-06028-00 | BOLT, FLANGE (6X28) | 4 |
| 4 | 95701-06028-00 | BOLT, FLANGE (6X28) | 4 |
| 7 | 96000-06028-00 | BOLT, FLANGE (6X28) | 7 |
| 7 | 96001-06028-00 | BOLT, FLANGE (6X28) | 7 |
| 5 | 96000-06032-00 | BOLT, FLANGE (6X32) | 5 |
| 5 | 96001-06032-00 | BOLT, FLANGE (6X32) | 5 |
| 1 | 96000-06035-00 | BOLT, FLANGE (6X35) | 1 |
| 1 | 96001-06035-00 | BOLT, FLANGE (6X35) | 1 |
| 2 | 96000-06040-00 | BOLT, FLANGE (6X40) | 2 |
| 2 | 96001-06040-00 | BOLT, FLANGE (6X40) | 2 |
| 4 | 96300-06016-00 | BOLT, FLANGE (6X16) | 4 |
