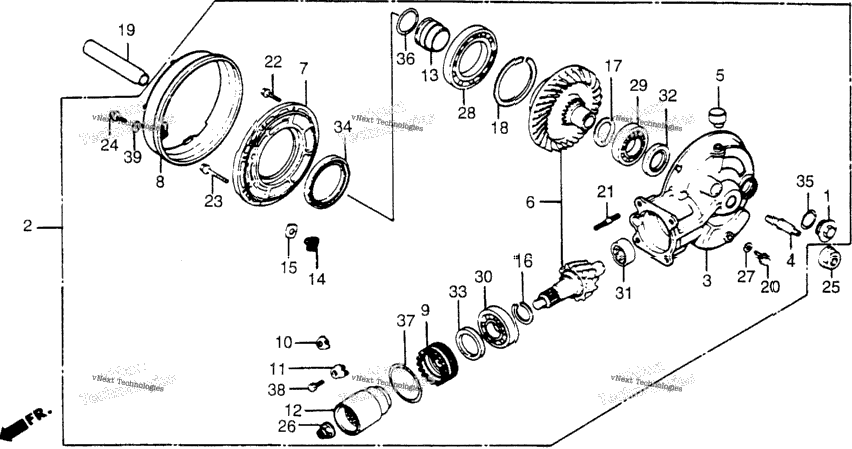

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 12361-035-000 | CAP, TAPPET ADJUSTING HOLE | 1 |
| 12361-300-000 | CAP, VALVE ADJ. | ||
| 12361-371-980 | CAP, VALVE ADJ. | ||
| 41300-MF5-010 | GEAR ASSY., FINAL | ||
| 41301-MF5-010 | CASE, FINAL GEAR | ||
| 41303-ME4-300 | STAY, RUBBER (LOWER) | ||
| 1 | 41306-MB0-010 | CAP, BREATHER | 1 |
| 1 | 41306-MB0-020 | CAP, BREATHER | 1 |
| 41306-ME5-305 | BREATHER ASSY. | ||
| 41310-MF5-305 | GEAR SET, FINAL DRIVEN | ||
| 41321-ME4-000 | COVER, GEAR CASE | ||
| 41324-MF5-000 | PLATE, DUST GUARD | ||
| 41331-MF5-010 | RETAINER, BEARING | ||
| 1 | 41332-415-000 | LOCK A, BEARING ADJUSTING (SINGLE TAB) | 1 |
| 1 | 41333-415-000 | LOCK B, BEARING ADJUSTING (DOUBLE TABS) | 1 |
| 41410-MF5-010 | JOINT, PINION | ||
| 41433-ME4-000 | HOLDER, O-RING | ||
| 1 | 41436-MB0-310 | PIN, RING GEAR STOPPER | 1 |
| 1 | 41437-MB0-310 | SHIM A, STOPPER PIN (0.10) | 1 |
| 1 | 41438-MB0-310 | SHIM B, STOPPER PIN (0.15) | 1 |
| 41450-ME4-000 | SHIM A, PINION GEAR (1.32) | ||
| 41451-ME4-000 | SHIM B, PINION GEAR (1.38) | ||
| 41452-ME4-000 | SHIM C, PINION GEAR (1.44) | ||
| 41453-ME4-000 | SHIM D, PINION GEAR (1.50) | ||
| 41454-ME4-000 | SHIM E, PINION GEAR (1.56) | ||
| 41455-ME4-000 | SHIM F, PINION GEAR (1.62) | ||
| 41456-ME4-000 | SHIM G, PINION GEAR (1.68) | ||
| 41510-ME4-003 | WASHER, SPECIAL (31X40) | ||
| 41530-ME4-000 | SPACER A, RING GEAR (1.32) | ||
| 41531-ME4-000 | SPACER B, RING GEAR (1.38) | ||
| 41532-ME4-000 | SPACER C, RING GEAR (1.44) | ||
| 1 | 41533-ME4-000 | SPACER D, RING GEAR (1.50) | 1 |
| 41534-ME4-000 | SPACER E, RING GEAR (1.56) | ||
| 41535-ME4-000 | SPACER F, RING GEAR (1.62) | ||
| 41536-ME4-000 | SPACER G, RING GEAR (1.68) | ||
| 41537-ME4-000 | SPACER H, RING GEAR (1.74) | ||
| 41538-ME4-000 | SPACER I, RING GEAR (1.80) | ||
| 42625-MF5-000 | COLLAR B, RR. DISTANCE | ||
| 1 | 90109-371-000 | BOLT, SEALING (8MM) | 1 |
| 90125-MF5-000 | BOLT, STUD (8X40) | ||
| 90125-MG7-000 | BOLT, STUD (8X40) | ||
| 6 | 90133-MB0-000 | BOLT, FLANGE (8X27) | 6 |
| 90134-371-000 | BOLT, FLANGE (10X38) | ||
| 4 | 90170-MB0-000 | BOLT, HEX. (6X16) | 4 |
| 90305-MC0-003 | NUT, RR. AXLE U (16MM) | ||
| 1 | 90381-MB0-010 | NUT, HEX. (16MM) | 1 |
| 1 | 90471-580-000 | GASKET (8MM) | 1 |
| 91051-ME4-003 | BEARING, RADIAL BALL (55X90X11) | ||
| 91051-ME4-004 | BEARING, RADIAL BALL (55X90X11) | ||
| 91052-ME4-003 | BEARING, RADIAL BALL (30X52X13) | ||
| 91061-ME4-003 | BEARING, RADIAL BALL | ||
| 91061-ME4-004 | BEARING, RADIAL BALL (22X56X16) | ||
| 91062-ME4-003 | BEARING, NEEDLE (16X15) | ||
| 91261-ME4-003 | OIL SEAL (30X45X7) | ||
| 91261-ME4-004 | OIL SEAL (30X45X7) | ||
| 91262-MF5-000 | OIL SEAL (36X46X6) | ||
| 91265-ME4-003 | OIL SEAL (55X80X7) | ||
| 91265-ME4-004 | OIL SEAL (55X80X7) | ||
| 1 | 91302-001-020 | O-RING (30.8MM) | 1 |
| 91307-MC8-005 | O-RING (32.5X2.5) | ||
| 91356-ME4-003 | O-RING (32.5X2.4) | ||
| 91356-ME4-004 | O-RING (32.5X2.4) | ||
| 1 | 91359-ME4-003 | O-RING (53.5X3.5) | 1 |
| 1 | 91359-ME4-004 | O-RING (53.5X3.5) | 1 |
| 1 | 92000-06012 | BOLT, HEX. (6X12) | 1 |
| 1 | 92101-06012 | BOLT, HEX. (6X12) | 1 |
| 1 | 92101-06012-0A | BOLT, HEX. (6X12) | 1 |
| 1 | 94101-06800 | WASHER, PLAIN (6MM) | 1 |
