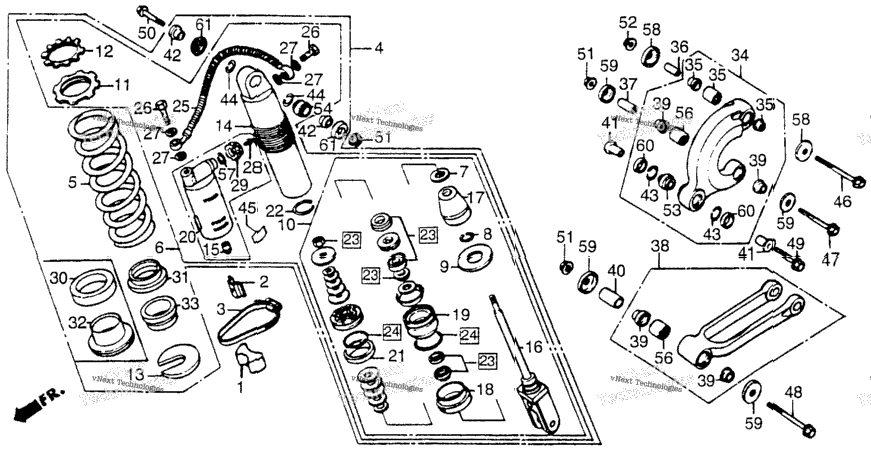

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 50250-KA3-830 | RUBBER, SUB-TANK MOUNTING | ||
| 50251-KA3-830 | RUBBER, SUB-TANK | ||
| 50252-KA4-730 | BAND, SUB-TANK | ||
| 52400-KA4-842 | SHOCK ABSORBER ASSY., RR. (SHOWA) Use up to Frame SN FC702503 | ||
| 52400-KA4-843 | SHOCK ABSORBER ASSY., RR. Use from Frame SN FC702504 | ||
| 52401-KA4-841 | SPRING, RR. SHOCK ABSORBER (4.8KGMM) (PINK) (SHOWA) | ||
| 52401-KA4-861 | SPRING, RR. SHOCK ABSORBER (4.4KGMM) (BROWN) (SHOWA) (Optional). | ||
| 52401-KA5-841 | SPRING, RR. SHOCK ABSORBER (5.2KGMM) (BLACK) (SHOWA) (Optional). | ||
| 52410-KA4-842 | DAMPER, RR. (SHOWA) Use up to Frame SN FC702503 | ||
| 52410-KA4-843 | DAMPER, RR. (SHOWA) | ||
| 52417-KA4-831 | SEAT, RUBBER (SHOWA) | ||
| 52418-KA4-831 | RING C, STOPPER (SHOWA) | ||
| 52419-KA4-831 | WASHER (SHOWA) | ||
| 52421-KA4-831 | ROD, PISTON (SHOWA) Use up to Frame SN FC702503 | ||
| 52421-KA4-832 | ROD, PISTON (SHOWA) Use from Frame SN FC702504 | ||
| 52422-KA4-831 | ADJUSTER, SPRING (SHOWA) | ||
| 52423-KA4-831 | NUT, ADJUSTER (SHOWA) | ||
| 52424-KA4-831 | STOPPER, SPRING SEAT | ||
| 52425-KA4-831 | CASE, RR. SHOCK ABSORBER | ||
| 1 | 52425-381-771 | CAP, AIR VALVE | 1 |
| 52426-KA4-831 | ROD (SHOWA) | ||
| 1 | 52427-KA4-741 | RUBBER, STOPPER | 1 |
| 52428-KA4-832 | PLATE, END (SHOWA) | ||
| 52429-KA4-831 | CASE, ROD GUIDE (SHOWA) | ||
| 52430-KA4-832 | SUB-TANK ASSY. (SHOWA) | ||
| 1 | 52431-KA4-831 | RING, PISTON (SHOWA) | 1 |
| 52435-KA4-831 | RING, STOPPER (SHOWA) | ||
| 52436-KA4-841 | OIL SEAL SET (SHOWA) | ||
| 1 | 52437-KA4-841 | O-RING SET (SHOWA) | 1 |
| 52440-KA4-831 | HOSE, JOINT (SHOWA) | ||
| 52441-KA3-711 | BOLT, OIL (10X22) | ||
| 4 | 52442-KA3-711 | WASHER, SPECIAL (10MM) | 4 |
| 1 | 52448-KF0-003 | SCREW | 1 |
| 52449-KA4-831 | PLATE, ADJUSTING | ||
| 52458-KA4-831 | SEAT, SPRING (LOWER) (SHOWA) | ||
| 52459-KA4-831 | SEAT C, SPRING (SHOWA) | ||
| 52460-KA3-831 | ARM ASSY., SHOCK ABSORBER | ||
| 52462-KA3-831 | BUSH, DAMPER ARM | ||
| 52463-KA3-830 | COLLAR, CUSHION ARM PIVOT | ||
| 52464-KA3-830 | COLLAR, CUSHION ARM | ||
| 52470-KA3-830 | ROD ASSY., DAMPER CONNECTING | ||
| 52472-KA3-831 | BUSH, SHOCK CONNECTING ROD THRUST | ||
| 52473-KA3-830 | COLLAR, CONNECTING ROD PIVOT | ||
| 52486-KA3-731 | COLLAR, SHOCK ABSORBER (UPPER) | ||
| 52486-KA4-831 | COLLAR, SHOCK ABSORBER (UPPER) (SHOWA) | ||
| 52487-KA3-731 | RING, STOPPER | ||
| 2 | 52487-KA4-831 | RING, STOPPER (SHOWA) | 2 |
| 87516-KF0-003 | LABEL, RR. DAMPER CAUTION | ||
| 90128-KA3-831 | BOLT, FLANGE (12X105) | ||
| 90128-KA4-003 | BOLT, FLANGE (12X105) | ||
| 1 | 90129-KF0-000 | BOLT, FLANGE (10X77) | 1 |
| 90130-KA3-830 | BOLT, FLANGE (10X83) | ||
| 90130-KS6-000 | BOLT, FLANGE (10X83) | ||
| 90153-KA3-730 | BOLT, FLANGE (10X48) | ||
| 90154-KA3-830 | BOLT, FLANGE (10X52) | ||
| 3 | 90304-GA6-003 | NUT, AXLE (10MM) | 3 |
| 1 | 90306-KA4-003 | NUT, FLANGE (12MM) | 1 |
| 1 | 90306-181-761 | NUT, FLANGE (12MM) | 1 |
| 1 | 91077-KA3-731 | BEARING, SPHERICAL (14MM) | 1 |
| 1 | 91077-KN5-004 | BEARING, SPHERICAL (14MM) | 1 |
| 1 | 91077-KA4-831 | BEARING, SPHERICAL (14MM) | 1 |
| 91078-KA3-831 | BEARING, NEEDLE (19.1X26.1X27) (TOYO) | ||
| 2 | 91079-KA3-831 | BEARING, NEEDLE (17.5X24.5X22) | 2 |
| 1 | 91256-GC5-003 | O-RING (15.5X1.5) | 1 |
| 2 | 91261-KA3-831 | SEAL, RUBBER ARM PIVOT (ARAI) | 2 |
| 2 | 91261-KS6-701 | SEAL, CUSHION ARM PIVOT | 2 |
| 91262-KA3-831 | SEAL, RUBBER CONNECTING ROD PIVOT | ||
| 2 | 91351-KA3-731 | DUST SEAL, RR. SHOCK (UPPER) | 2 |
