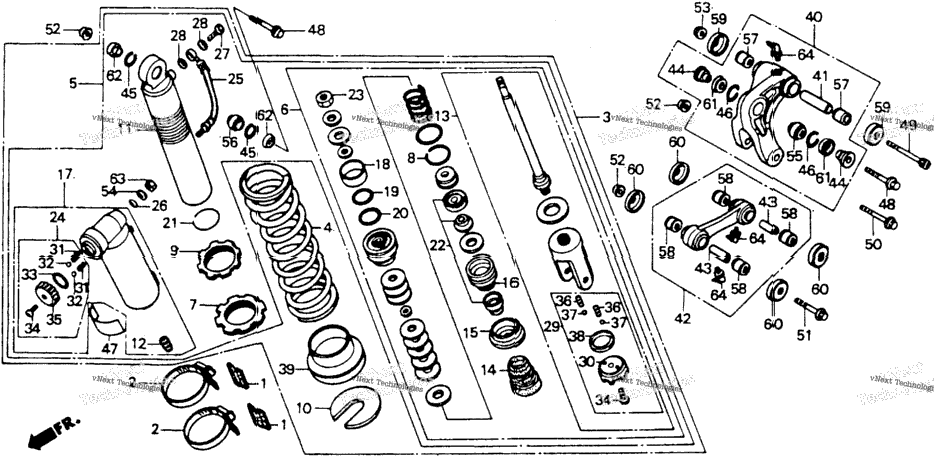

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 50251-KS7-000 | RUBBER, SUB-TANK | ||
| 50252-MN1-670 | BAND, SUB-TANK | ||
| 52400-MN1-671 | SHOCK ABSORBER ASSY., RR. | ||
| 52400-MN1-671ZA | CUSHION ASSY., RR. *R119* (SHOWA) (FLASH RED) | ||
| 52401-MN1-671 | SPRING, RR. SHOCK ABSORBER | ||
| 52401-MN1-671ZA | SPRING, RR. SHOCK ABSORBER *R119* (FLASH RED) | ||
| 52410-MN1-671 | DAMPER, RR. | ||
| 52421-MN1-671 | ROD, PISTON | ||
| 52422-KF0-003 | ADJUSTER, SPRING | ||
| 52423-MK2-771 | RING D, STOPPER | ||
| 52423-MN1-671 | NUT, ADJUSTER | ||
| 52424-KF0-003 | STOPPER, SPRING SEAT | ||
| 52425-MN1-671 | CASE, SHOCK ABSORBER | ||
| 1 | 52425-169-003 | CAP, AIR VALVE (SHOWA) | 1 |
| 52426-MN1-671 | ROD | ||
| 1 | 52427-MN1-671 | RUBBER, STOPPER | 1 |
| 52428-MN1-671 | PLATE, END | ||
| 52429-MN1-671 | CASE, ROD GUIDE | ||
| 52430-MN1-671 | TANK ASSY., RESERVOIR | ||
| 52431-KF0-003 | RING, PISTON | ||
| 52432-KF0-003 | O-RING C (2.0X29.5) | ||
| 52434-KF0-003 | O-RING D (3.5X29.7) | ||
| 52435-KF0-003 | RING, STOPPER | ||
| 52436-MK2-771 | OIL SEAL SET | ||
| 1 | 52438-KA4-741 | NUT, HEX. (12MM) | 1 |
| 52438-MN1-671 | PLATE SET, COMPRESSION ADJUSTING | ||
| 52440-MN1-671 | HOSE, JOINT | ||
| 52441-MA0-003 | O-RING (9.8X1.9) | ||
| 52441-MN1-671 | BOLT, OIL | ||
| 2 | 52442-KA3-711 | WASHER, SPECIAL (10MM) | 2 |
| 1 | 52442-MN1-671 | PLATE SET, TENSION ADJUSTING | 1 |
| 1 | 52443-MN1-671 | PLATE, TENSION ADJUSTING | 1 |
| 52445-KN5-003 | SPRING, CLICK | ||
| 52446-KF0-003 | BALL | ||
| 52447-KF0-003 | O-RING (2X23.5) | ||
| 2 | 52448-KF0-003 | SCREW | 2 |
| 52449-MN1-671 | PLATE, COMPRESSION ADJUSTING | ||
| 2 | 52455-KF0-003 | SPRING, CLICK | 2 |
| 2 | 52456-KF0-003 | BALL | 2 |
| 1 | 52457-KN5-003 | SEAL, RING | 1 |
| 1 | 52459-KE1-003 | SEAT C, SPRING (SHOWA) | 1 |
| 52460-KN5-000 | ARM ASSY., SHOCK ABSORBER | ||
| 1 | 52463-KN5-000 | COLLAR, CUSHION ARM PIVOT | 1 |
| 52470-MN1-670 | ROD ASSY., SHOCK CONNECTING | ||
| 2 | 52473-KN5-000 | COLLAR, CUSHION CONNECTING ROD | 2 |
| 2 | 52486-KN5-000 | COLLAR, DAMPER | 2 |
| 2 | 52487-KA4-831 | RING, STOPPER | 2 |
| 2 | 52487-KN5-000 | RING, STOPPER | 2 |
| 87516-MK2-681 | LABEL, RR. DAMPER WARNING | ||
| 2 | 90103-KE8-003 | BOLT, FLANGE (10X46) | 2 |
| 1 | 90128-MN1-670 | BOLT, SOCKET (12X102) | 1 |
| 1 | 90129-KF0-000 | BOLT, FLANGE (10X77) | 1 |
| 1 | 90151-MG3-000 | BOLT, FLANGE (10X65) | 1 |
| 3 | 90304-GE8-003 | NUT, U (10MM) | 3 |
| 1 | 90306-KF0-003 | NUT, FLANGE (12MM) | 1 |
| 1 | 90401-KF0-003 | WASHER | 1 |
| 1 | 90501-MT2-000 | WASHER | 1 |
| 1 | 91077-KN5-004 | BEARING, SPHERICAL (14MM) | 1 |
| 1 | 91077-KS7-013 | BEARING, SPHERICAL (10.1MM) | 1 |
| 2 | 91078-KN5-003 | BEARING, CUSHION ARM (NTN) | 2 |
| 4 | 91079-KN5-003 | BEARING, CONNECTING ROD | 4 |
| 2 | 91261-KN5-003 | SEAL, CUSHION ARM | 2 |
| 4 | 91262-KN5-003 | SEAL, CUSHION CONNECTING ROD PIVOT | 4 |
| 2 | 91351-KN5-004 | DUST SEAL B | 2 |
| 2 | 91351-KS7-003 | DUST SEAL, RR. CUSHION (UPPER) | 2 |
| 1 | 94002-12000-0S | NUT, HEX. (12MM) | 1 |
| 3 | 96201-80000 | NIPPLE, GREASE (B.T6S) | 3 |
