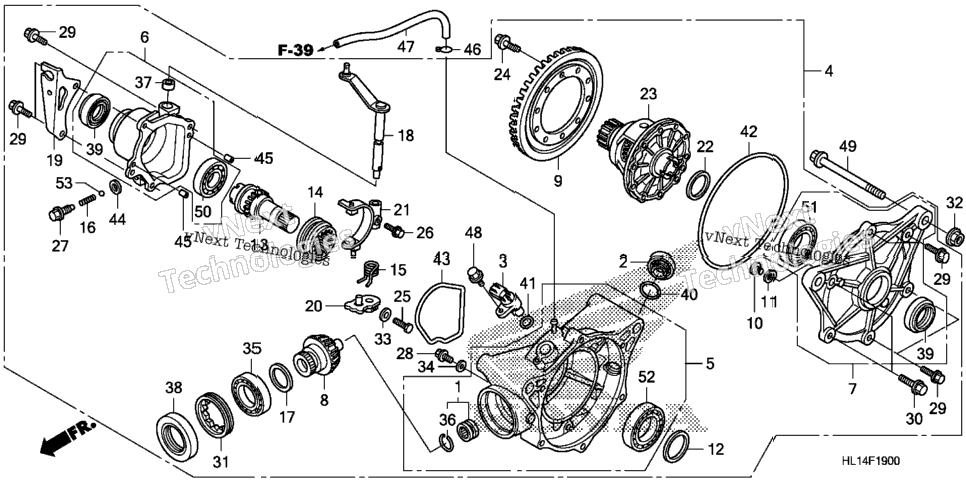

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 06911-HN8-000 | BEARING SET, NEEDLE | 1 |
| 1 | 12361-035-000 | CAP, TAPPET ADJUSTING HOLE | 1 |
| 12361-300-000 | CAP, VALVE ADJ. | ||
| 12361-371-980 | CAP, VALVE ADJ. | ||
| 1 | 37700-HP5-601 | SENSOR ASSY., SPEED (TDK-EPC) | 1 |
| 1 | 41300-HL1-A00 | GEAR ASSY., RR. FINAL | 1 |
| 1 | 41311-HL1-A00 | CASE SUB-ASSY., RR. FINAL GEAR | 1 |
| 1 | 41312-HL1-A00 | COVER SUB-ASSY., R. RR. FINAL GEAR | 1 |
| 1 | 41332-HL1-A00 | COVER SUB-ASSY., RR. FINAL GEAR | 1 |
| 1 | 41421-HL1-A00 | GEAR, RR. PINION (13T/24T) | 1 |
| 1 | 41431-HL1-A00 | GEAR, RR. RING (45T) | 1 |
| 1 | 41436-MB0-310 | PIN, RING GEAR STOPPER | 1 |
| 1 | 41437-MB0-310 | SHIM A, STOPPER PIN (0.10) | 1 |
| 1 | 41438-MB0-310 | SHIM B, STOPPER PIN (0.15) | 1 |
| 1 | 41450-HL1-A00 | SHIM A, RING GEAR (0.64) | 1 |
| 1 | 41451-HL1-A00 | SHIM B, RING GEAR (0.70) | 1 |
| 1 | 41452-HL1-A00 | SHIM C, RING GEAR (0.76) | 1 |
| 1 | 41453-HL1-A00 | SHIM D, RING GEAR (0.82) | 1 |
| 1 | 41454-HL1-A00 | SHIM E, RING GEAR (0.88) | 1 |
| 1 | 41455-HL1-A00 | SHIM F, RING GEAR (0.94) | 1 |
| 1 | 41456-HL1-A00 | SHIM G, RING GEAR (1.00) | 1 |
| 1 | 41457-HL1-A00 | SHIM H, RING GEAR (1.06) | 1 |
| 1 | 41458-HL1-A00 | SHIM I, RING GEAR (1.12) | 1 |
| 1 | 41459-HL1-A00 | SHIM J, RING GEAR (1.18) | 1 |
| 1 | 41460-HL1-A00 | SHIM K, RING GEAR (1.24) | 1 |
| 1 | 41461-HL1-A00 | SHIM L, RING GEAR (1.30) | 1 |
| 1 | 41462-HL1-A00 | SHIM M, RING GEAR (1.36) | 1 |
| 1 | 41463-HL1-A00 | SHIM N, RING GEAR (1.42) | 1 |
| 1 | 41464-HL1-A00 | SHIM O, RING GEAR (1.48) | 1 |
| 1 | 41465-HL1-A00 | SHIM P, RING GEAR (1.54) | 1 |
| 1 | 41466-HL1-A00 | SHIM Q, RING GEAR (1.60) | 1 |
| 1 | 41511-HL1-A00 | SHAFT, R. SIDE HALF | 1 |
| 1 | 41521-PL9-000 | SLEEVE, DIFFERENTIAL LOCK | 1 |
| 1 | 41534-HL1-A00 | SPRING, DIFFERENTIAL LOCK FORK | 1 |
| 1 | 41535-HL1-A00 | SPRING, SELECTOR STOPPER | 1 |
| 1 | 41540-HC4-000 | SPACER A, RING GEAR (1.26) | 1 |
| 1 | 41541-HC4-000 | SPACER B, RING GEAR (1.32) | 1 |
| 1 | 41542-HC4-000 | SPACER C, RING GEAR (1.38) | 1 |
| 1 | 41543-HC4-000 | SPACER D, RING GEAR (1.44) | 1 |
| 1 | 41544-HC4-000 | SPACER E, RING GEAR (1.50) | 1 |
| 1 | 41545-HC4-000 | SPACER F, RING GEAR (1.56) | 1 |
| 1 | 41546-HC4-000 | SPACER G, RING GEAR (1.62) | 1 |
| 1 | 41547-HC4-000 | SPACER H, RING GEAR (1.68) | 1 |
| 1 | 41548-HC4-000 | SPACER I, RING GEAR (1.74) | 1 |
| 1 | 41549-HC4-000 | SPACER J, RING GEAR (1.80) | 1 |
| 1 | 41550-HC4-000 | SPACER K, RING GEAR (1.86) | 1 |
| 1 | 41540-HL1-A00 | SHAFT, DIFFERENTIAL LOCK | 1 |
| 1 | 41553-HL1-A00 | STAY, DIFFERENTIAL LOCK CABLE | 1 |
| 1 | 41560-HL1-A00 | STOPPER, DIFFERENTIAL LOCK SHAFT | 1 |
| 1 | 41570-HL1-A00 | FORK, DIFFERENTIAL LOCK | 1 |
| 1 | 41580-HL1-A00 | SHIM A, RING GEAR (0.64) | 1 |
| 1 | 41581-HL1-A00 | SHIM B, RING GEAR (0.70) | 1 |
| 1 | 41582-HL1-A00 | SHIM C, RING GEAR (0.76) | 1 |
| 1 | 41583-HL1-A00 | SHIM D, RING GEAR (0.82) | 1 |
| 1 | 41584-HL1-A00 | SHIM E, RING GEAR (0.88) | 1 |
| 1 | 41585-HL1-A00 | SHIM F, RING GEAR (0.94) | 1 |
| 1 | 41586-HL1-A00 | SHIM G, RING GEAR (1.00) | 1 |
| 1 | 41587-HL1-A00 | SHIM H, RING GEAR (1.06) | 1 |
| 1 | 41588-HL1-A00 | SHIM I, RING GEAR (1.12) | 1 |
| 1 | 41589-HL1-A00 | SHIM J, RING GEAR (1.18) | 1 |
| 1 | 41590-HL1-A00 | SHIM K, RING GEAR (1.24) | 1 |
| 1 | 41591-HL1-A00 | SHIM L, RING GEAR (1.30) | 1 |
| 1 | 41592-HL1-A00 | SHIM M, RING GEAR (1.36) | 1 |
| 1 | 41593-HL1-A00 | SHIM N, RING GEAR (1.42) | 1 |
| 1 | 41594-HL1-A00 | SHIM O, RING GEAR (1.48) | 1 |
| 1 | 42320-HL1-A00 | CASE, RR. DIFFERENTIAL | 1 |
| 10 | 90015-634-010 | BOLT, FLANGE (10MM) | 10 |
| 1 | 90029-PH8-000 | BOLT, SPECIAL (6X16) | 1 |
| 1 | 90101-HP5-600 | BOLT, SPECIAL (6MM) | 1 |
| 1 | 90102-HL1-A00 | SCREW, FIFTH & REVERSE SET BALL | 1 |
| 1 | 90109-371-000 | BOLT, SEALING (8MM) | 1 |
| 8 | 90133-HP5-600 | BOLT, FLANGE (8X27) | 8 |
| 2 | 90134-HP5-600 | BOLT, FLANGE (10X35) | 2 |
| 1 | 90242-HL1-A00 | NUT, LOCK (72MM) | 1 |
| 2 | 90305-HC4-000 | NUT, SELF-LOCK (12MM) | 2 |
| 1 | 90442-GF6-010 | WASHER, SEALING (7MM) | 1 |
| 1 | 90471-580-000 | GASKET (8MM) | 1 |
| 1 | 91001-PR9-003 | BEARING, BALL (42X70X11) (NTN) | 1 |
| 1 | 91012-KF0-000 | CLIP, NEEDLE THRUST BEARING (12MM) | 1 |
| 1 | 91206-KV3-003 | OIL SEAL (12X19X5) (ARAI) | 1 |
| 1 | 91251-HL1-A01 | OIL SEAL (45X77X11) | 1 |
| 2 | 91252-HL1-A01 | OIL SEAL (35X56X8) | 2 |
| 1 | 91302-001-020 | O-RING (30.8MM) | 1 |
| 1 | 91303-KF0-003 | O-RING (14.8X2.4) (ARAI) | 1 |
| 1 | 91352-HL1-A01 | O-RING (182X1.9) | 1 |
| 1 | 91355-HL1-A01 | GASKET, R. SIDE COVER | 1 |
| 1 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 1 |
| 2 | 94301-06100 | PIN, DOWEL (6X10) | 2 |
| 1 | 95002-35000 | CLIP, TUBE (C6.5) | 1 |
| 1 | 95005-35001-30M | BULK HOSE, VACUUM (3.5X1000) (3.5X530) | 1 |
| 1 | 95701-06016-00 | BOLT, FLANGE (6X16) | 1 |
| 95801-12140-00 | BOLT, FLANGE (12X140) | ||
| 1 | 96100-60073-00 | BEARING, RADIAL BALL (6007) | 1 |
| 1 | 96100-60083-00 | BEARING, RADIAL BALL (6008) | 1 |
| 1 | 96100-60093-00 | BEARING, RADIAL BALL (6009) | 1 |
| 1 | 96211-10000 | BALL, STEEL (#10) (5/16) | 1 |
