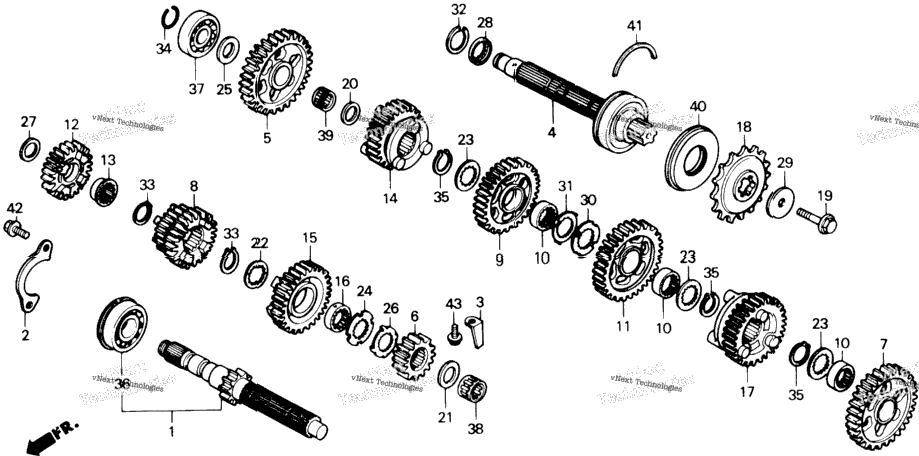

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 23210-MN4-000 | MAINSHAFT (SOURCE: VINTAGE PARTS INC.) | ||
| 23213-MN4-000 | PLATE, BEARING SETTING | ||
| 23214-MN4-000 | PLATE B, BEARING SETTING | ||
| 23220-MN4-000 | COUNTERSHAFT | ||
| 23421-MN4-000 | GEAR, COUNTERSHAFT LOW (42T) | ||
| 23431-MN4-010 | GEAR, MAINSHAFT SECOND (17T) Use up to Engine SN 2107251 | ||
| 23431-MN4-020 | GEAR, MAINSHAFT SECOND (17T) Use from Engine SN 2107252 | ||
| 23441-MN4-000 | GEAR, COUNTERSHAFT SECOND (38T) (SOURCE: VINTAGE PARTS INC.) | ||
| 23451-MN4-000 | GEAR, MAINSHAFT THIRD & FOURTH (20T/22T) | ||
| 23461-MN4-000 | GEAR, COUNTERSHAFT THIRD (36T) | ||
| 23462-MN4-000 | COLLAR, SPLINE (28X10) (SOURCE: VINTAGE PARTS INC.) | ||
| 23481-MN4-000 | GEAR, COUNTERSHAFT FOURTH (33T) | ||
| 23491-MN4-010 | GEAR, MAINSHAFT FIFTH (22T) | ||
| 23495-MN4-000 | COLLAR (25X28X11) | ||
| 23501-MN4-010 | GEAR, COUNTERSHAFT FIFTH (28T) (SOURCE: VINTAGE PARTS INC.) | ||
| 23511-MN4-020 | GEAR, MAINSHAFT SIXTH (23T) | ||
| 23512-MN4-000 | COLLAR, SPLINE (25X12) (SOURCE: VINTAGE PARTS INC.) | ||
| 23521-MN4-020 | GEAR, COUNTERSHAFT SIXTH (26T) | ||
| 23801-MN4-000 | SPROCKET, DRIVE (15T) | ||
| 90037-MN4-000 | BOLT, SPECIAL (10MM) (SOURCE: VINTAGE PARTS INC.) | ||
| 1 | 90401-KE7-000 | WASHER, THRUST (22.2MM) | 1 |
| 90403-MN4-000 | WASHER, THRUST (17X31.5) (SOURCE: VINTAGE PARTS INC.) | ||
| 90451-MN4-000 | WASHER, SPLINE (25X31X1.5) | ||
| 3 | 90452-MN4-000 | WASHER, SPLINE (28X34X1.5) | 3 |
| 3 | 90451-MM5-000 | WASHER, SPLINE (28X34X1.5) | 3 |
| 90453-MN4-000 | WASHER, SPLINE (25X1.2) (SOURCE: VINTAGE PARTS INC.) | ||
| 1 | 90454-428-000 | WASHER, THRUST (20MM) | 1 |
| 90455-MN4-000 | WASHER, LOCK (25MM) | ||
| 1 | 90456-MA6-000 | WASHER, THRUST (25MM) | 1 |
| 90457-MN4-000 | WASHER, SPECIAL SPLINE | ||
| 1 | 90459-438-000 | WASHER (10.2MM) | 1 |
| 90464-MM5-000 | WASHER, SPLINE (28X1.6) (SOURCE: VINTAGE PARTS INC.) | ||
| 90465-MM5-000 | WASHER, LOCK (28MM) | ||
| 90601-MN4-000 | CIRCLIP (OUTER) (28MM) (SOURCE: VINTAGE PARTS INC.) | ||
| 2 | 90601-107-000 | CIRCLIP (25MM) | 2 |
| 90602-MN4-000 | CLIP (20MM) | ||
| 3 | 90603-MN4-000 | CIRCLIP (28MM) | 3 |
| 91002-MN4-003 | BEARING, RADIAL BALL (6305) (NTN CORP.) | ||
| 91004-MN4-003 | BEARING, RADIAL BALL (6004) (NTN CORP.) | ||
| 91004-MN4-004 | BEARING, RADIAL BALL (6004) (KOYO) | ||
| 1 | 91022-MN4-003 | BEARING, NEEDLE (17X27X14.8) (TOYO) | 1 |
| 1 | 91025-MN4-003 | BEARING, NEEDLE (22X26X11) (NTN CORP.) | 1 |
| 1 | 91026-MB4-003 | BEARING, NEEDLE (22X26X11) | 1 |
| 91216-MN4-003 | OIL SEAL (37X68X7.5) (ARAI) | ||
| 95015-26800 | RING, BEARING SETTING (68MM) (SOURCE: VINTAGE PARTS INC.) | ||
| 2 | 95701-06016-00 | BOLT, FLANGE (6X16) | 2 |
| 1 | 95701-06014-00 | BOLT, FLANGE (6X14) | 1 |
| 1 | 95801-06014-00 | BOLT, FLANGE (6X14) | 1 |
