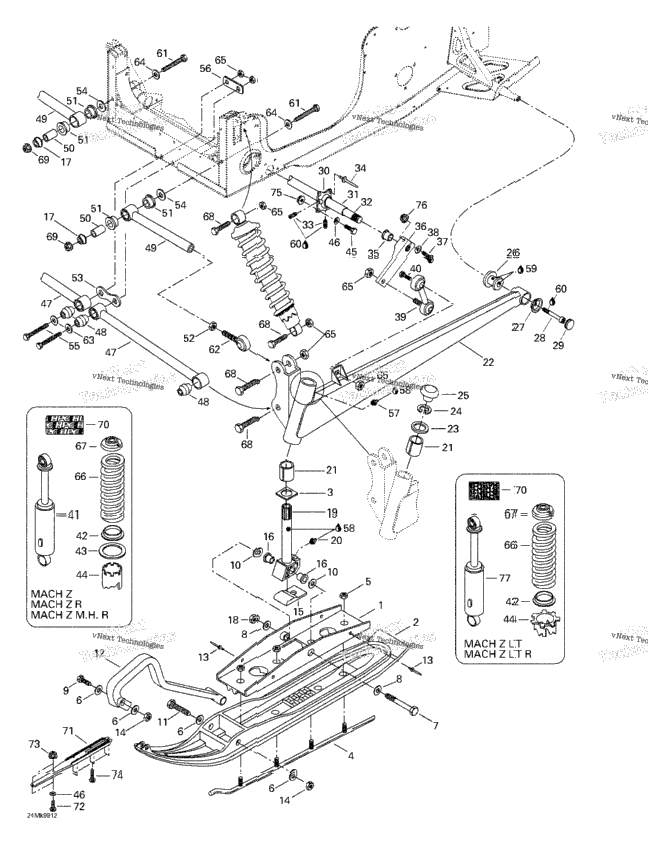

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 505070251 | Bridge Ass'y | ||
| 2 | 505070189 | Ski-Liner Flex | 2 |
| 2 | 505070190 | Ski Liner (Europe) Mach Z. Mach Z R. Mach Z LT R. | 2 |
| 506081200 | Wear Plate | ||
| 860501900 | CARBIDE RUNNER Includes 4 - 5. | ||
| 8 | 228501045 | Elastic Stop Nut M10 | 8 |
| 8 | 224081171 | Flat Washer 8 mm | 8 |
| 2 | 230022044 | HEX. SCREW M12 X 120 | 2 |
| 4 | 506136400 | FLAT WASHER | 4 |
| 2 | 207085044 | Hex. Screw M8 X 50 | 2 |
| 732900048 | Washer | ||
| 2 | 230080044 | SCREW-HEX. M8 X 100 | 2 |
| 2 | 572101000 | Plastic Handle (Europe) | 2 |
| 390911100 | RIVET_POP 1/4 | ||
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 570053300 | Ski Stopper | ||
| 414530600 | CUSHION | ||
| 506148400 | Spacer | ||
| 2 | 228521045 | Elastic Stop Nut M12 | 2 |
| 506144500 | Ski Leg Includes 19 - 20. | ||
| 2 | 408200700 | Grease Fitting | 2 |
| 572069900 | Cushion | ||
| 505070174 | RH Swing Arm | ||
| 505070175 | LH Swing Arm | ||
| 506080900 | Thrust Washer | ||
| 2 | 371910400 | CIRCLIP | 2 |
| 2 | 572091300 | Cap | 2 |
| 570062700 | Damper | ||
| 506128500 | Cup | ||
| 2 | 222902565 | Socket Head Screw M10 x 25 | 2 |
| 2 | 572045900 | CAP | 2 |
| 505070276 | RH Housing | ||
| 506138900 | LH Housing | ||
| 506136200 | Main Tube | ||
| 506134300 | Stabilizator | ||
| 4 | 414440800 | Socket Set Screw M8 X 10 | 4 |
| 390404900 | Rivet pop 1/4" | ||
| 2 | 415039500 | CUSHION | 2 |
| 506134402 | Stabilizer Lever | ||
| 2 | 207084544 | Hex. Screw M8 X 45 | 2 |
| 2 | 224081171 | Flat Washer 8 mm | 2 |
| 415101400 | Double Ball Joint | ||
| 2 | 207103544 | Hex. Screw M10 X 35 | 2 |
| 505070289 | FRONT SHOCK Includes 41 - 44. Mach Z. Mach Z R. Mach Z M.H. R. | ||
| 415052800 | Spring Guide Mach Z. Mach Z R. Mach Z M.H. R. | ||
| 2 | 503165100 | GUIDE_SPRING Mach Z LT. Mach Z LT R. | 2 |
| 415052900 | Thrust Washer Mach Z. Mach Z R. Mach Z M.H. R. | ||
| 415109900 | Cam Mach Z. Mach Z R. Mach Z M.H. R. | ||
| 503169000 | Cam Mach Z LT. Mach Z LT R. | ||
| 2 | 222062565 | Hex. Screw M6 x 25 | 2 |
| 6 | 234061410 | Flat Washer 6 mm | 6 |
| 505070140 | Lower Arm Ass'y Includes 47 - 48. | ||
| 505070025 | Bushing | ||
| 505070131 | Adjustable Arm Ass'y Includes 49 - 51. | ||
| 505070143 | Bushing | ||
| 506149100 | CUSHION | ||
| 2 | 732610019 | RH Hex. Jam Nut M12 | 2 |
| 506147900 | Plate | ||
| 2 | 506148100 | WASHER | 2 |
| 2 | 222008565 | Hex. Screw M10 x 85 | 2 |
| 506148300 | Plate | ||
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 1 | 293550014 | Grease, Super Lube #823-28 | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 732601004 | Hex. Screw M10 x 110 | ||
| 415068400 | Ball Joint | ||
| 2 | 503175800 | Washer | 2 |
| 399910100 | Flat Washer | ||
| 14 | 228501045 | Elastic Stop Nut M10 | 14 |
| 415075900 | Spring (Yellow) Mach Z. Mach Z R. Mach Z M.H. R. | ||
| 505070153 | Spring Mach Z LT. Mach Z LT R. | ||
| 2 | 503140600 | Spring Stopper | 2 |
| 8 | 222005565 | Hex. Screw M10 x 55 | 8 |
| 2 | 228701045 | Flange Elastic Nut M10 | 2 |
| 516000182 | HPG Decal (Europe) Mach Z. Mach Z R. Mach Z M.H. R. | ||
| 516000181 | Shock Decal Mach Z LT. Mach Z LT R. | ||
| 505070232 | PROACTIVE CONTROL (GT ONLY) | ||
| 205452546 | Socket head screw M5 x 25 | ||
| 4 | 228751045 | Elastic Flange Nut M5 | 4 |
| 12 | 211000021 | PHILLIPS SCREW #10 X 7/8 | 12 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 228781045 | Elastic Flange Stop Nut M8 | 2 |
| 505070171 | Front Shock Mach Z LT. Mach Z LT R. |
