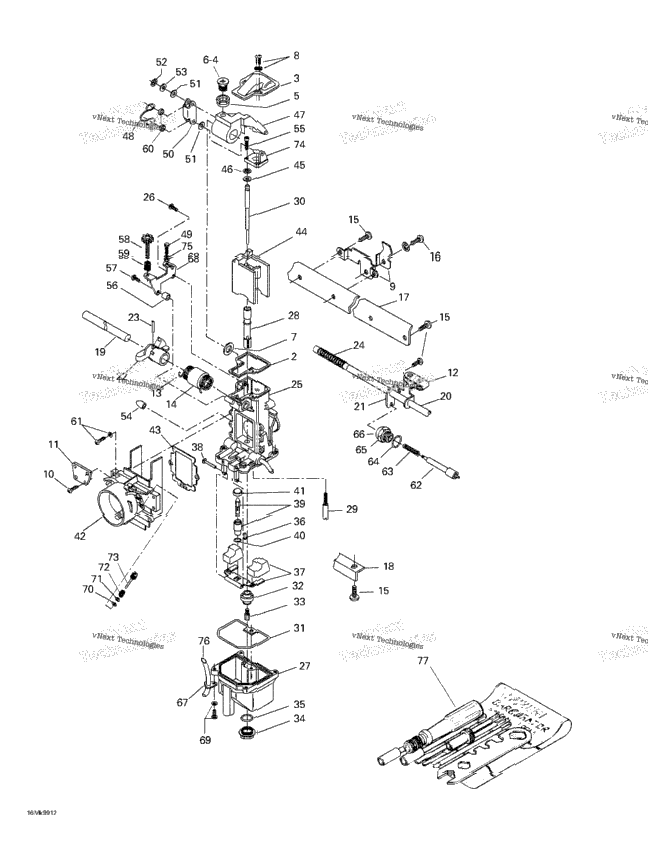

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 403138555 | Carburetor Kit TM38-C224 Includes 1 - 76. | ||
| 404143600 | Gasket | ||
| 404142700 | Cover | ||
| 404139000 | Screw (PTO/Center) | ||
| 404143500 | Ring (PTO/Center) | ||
| 404138900 | Screw (MAG) | ||
| 404144400 | Packing (MAG) | ||
| 404139100 | Screw | ||
| 404155100 | Bracket Ass'y | ||
| 8 | 404136100 | Screw | 8 |
| 404142400 | Plate | ||
| 404143900 | Lever | ||
| 404143200 | Spring | ||
| 404141700 | Ring | ||
| 9 | 404138800 | Screw | 9 |
| 404140500 | Screw | ||
| 404142300 | Plate | ||
| 404142500 | Plate | ||
| 404137100 | Throttle Shaft | ||
| 404137200 | Choke Shaft | ||
| 404140600 | Starter Lever | ||
| 404142100 | Lever Ass'y | ||
| 404140100 | Pin | ||
| 404158000 | Spring | ||
| XXXX | Not Available As Spare Part - Carburetor TM38-239 (MAG Side) Includes 25 - 76. | ||
| XXXX | Not Available As Spare Part - CarburetorTM38-238 (Central) | ||
| XXXX | Not Available As Spare Part - Carburetor TM38-237 (PTO Side) | ||
| 404135900 | Screw (MAG) | ||
| 404161841 | Float Body Ass'y | ||
| 404161830 | Needle Jet | ||
| 404144800 | Pilot Jet 50 | ||
| 404161829 | Needle J8-8ADY01-41 | ||
| 404137000 | O'Ring | ||
| 404142900 | Ring | ||
| 3 | 404101200 | Main Jet MJ 300 (PTO) | 3 |
| 3 | 404107400 | Drain Plug Screw | 3 |
| 3 | 404107300 | O-Ring | 3 |
| 404141000 | Screw | ||
| 404149800 | Float | ||
| 3 | 404103300 | Lever Pin | 3 |
| 404149500 | NEEDLE SEAT 1.5 | ||
| 404139400 | O'Ring | ||
| 404141200 | Filter | ||
| 404161831 | Funnel (MAG) | ||
| 404161832 | Funnel (CTR) | ||
| 404161833 | Funnel (PTO) | ||
| 404143700 | Gasket | ||
| 404152900 | Piston Valve 2.0 | ||
| 3 | 404137600 | Packing | 3 |
| 404113300 | Circlip | ||
| 404143000 | Throttle Lever (PTO/Center) | ||
| 404143100 | Throttle Lever (MAG) | ||
| 404144100 | Clip | ||
| 404138000 | Bolt (MAG) | ||
| 404144000 | Plate | ||
| 404138100 | Packing | ||
| 3 | 404138300 | E-Ring | 3 |
| 404139500 | Washer | ||
| 3 | 404154900 | CAP | 3 |
| 6 | 404137400 | BOLT | 6 |
| 404141800 | Ring (MAG) | ||
| 1 | 404138800 | Screw | 1 |
| 1 | 404137500 | Adjustment Screw | 1 |
| 404138200 | Spring (MAG) | ||
| 404144200 | Ring | ||
| 404145100 | Screw | ||
| 404161842 | Plunger Ass'y | ||
| 404141100 | Spring | ||
| 404140200 | O-Ring | ||
| 3 | 404136900 | Guide Holder | 3 |
| 3 | 404140000 | Cap | 3 |
| 404144900 | Plate | ||
| 404142600 | Bracket (MAG) | ||
| 12 | 404138700 | Screw | 12 |
| 3 | 404139900 | O-RING | 3 |
| 404140900 | Washer | ||
| 404139800 | SPRING | ||
| 404154200 | Adjuster Screw | ||
| 404142000 | Plate Ass'y | ||
| 404139600 | Nut (MAG) | ||
| 404161828 | Hose | ||
| 404112000 | TOOL KIT | ||
| 861766600 | High Altitude Kit (Not Shown) |
