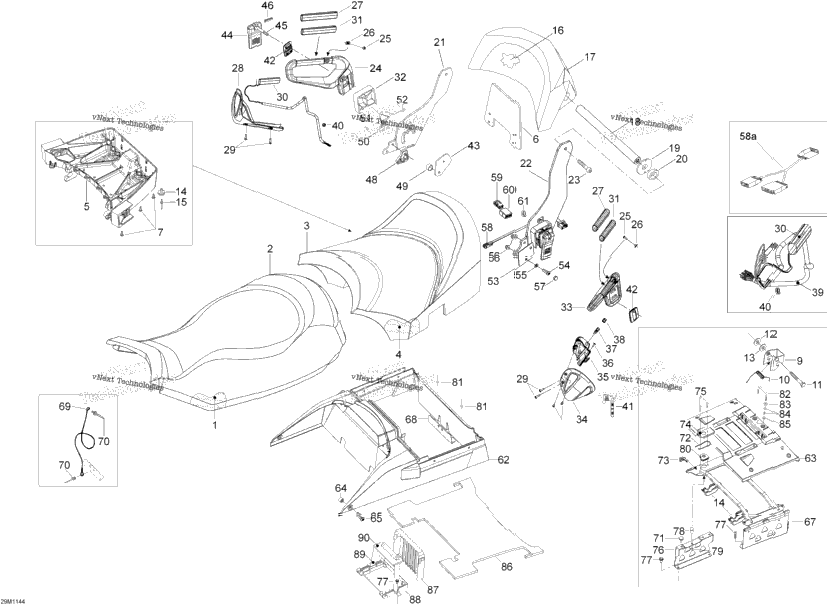

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 510005316 | Seat Foam (GRAND) | 1 |
| 1 | 510005327 | Front Cover Seat | 1 |
| 510005320 | REAR SEAT COVER XU | ||
| 1 | 510004871 | Foam Seat | 1 |
| 1 | 510004816 | Seat Base | 1 |
| 1 | 510005330 | Backrest Plate | 1 |
| 14 | 414644300 | Black, Dart | 14 |
| 1 | 708000144 | Latch, Black | 1 |
| 1 | 708000922 | Spring | 1 |
| 1 | 207068044 | Hex. Screw M6 X 80 | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 2 | 510004999 | Cover | 2 |
| 2 | 293150015 | Pop Rivet 1/8” | 2 |
| 1 | 510004985 | Foam Backrest | 1 |
| 1 | 510005259 | Backrest Cover | 1 |
| XXXX | Not Available As Spare Part - Axle, backrest | ||
| 510005312 | LIMITER PLATE | ||
| 2 | 510004378 | Rubber Shim | 2 |
| 1 | 510004988 | RH ARM | 1 |
| 510004989 | LH ARM | ||
| 2 | 205402546 | Socket Screw BN.HD.ISO.7380 | 2 |
| 1 | 510004948 | RH Handle | 1 |
| 2 | 250000129 | Torx Screw M6 X 16 | 2 |
| 2 | 293100003 | Nut Welded, M6 | 2 |
| 2 | 510004449 | Handle Grip | 2 |
| 1 | 510004415 | RH Deflector | 1 |
| 4 | 250000199 | Screw 25mm | 4 |
| 2 | 515176393 | Heater | 2 |
| 2 | 510004709 | HANDLE REINFORFORCEMENT | 2 |
| 2 | 510004939 | Adapter | 2 |
| 1 | 510004947 | LH Handle | 1 |
| 1 | 510004416 | LH Deflector | 1 |
| 1 | 510004566 | Switch Housing | 1 |
| 3 | 250000146 | Truss Head Torx Screw K50 X 16 | 3 |
| 1 | 510004413 | Rocker Switch | 1 |
| 1 | 510004414 | Switch Protector | 1 |
| 1 | 515176241 | LH HANDLE HARNESS | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 516002835 | HANDLE HEATER DECAL | 1 |
| 2 | 510004405 | Moulding | 2 |
| 2 | 510004990 | Counter Plate | 2 |
| 2 | 510004992 | Lock Ass'y | 2 |
| XXXX | Not Available As Spare Part - Screw | ||
| XXXX | Not Available As Spare Part - Pin | ||
| 510005151 | ADAPTER | ||
| 510005042 | SLEEVE | ||
| 1 | 510005139 | Security Lock | 1 |
| 1 | 205064044 | Socket Screw HD.DIN.912 | 1 |
| M33010 | Nut Elastic M6 | ||
| 2 | 510004995 | COVER PLATE | 2 |
| 4 | 207086044 | HEX. SCREW M8 X 60 | 4 |
| 4 | 234081410 | Flat Washer 8 mm | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 4 | M28056 | Bouchon *Cap | 4 |
| 515176748 | SEAT PLUG HARNESS | ||
| 515176747 | SEAT HARNESS | ||
| 1 | 515175494 | Male Housing, 3 Circuits | 1 |
| 1 | 515175817 | Male Terminal Housing, 8 Circuits | 1 |
| 1 | 510004874 | Storage Box XU | 1 |
| 1 | 510004875 | Storage Box Cover XU | 1 |
| 2 | 510005147 | Bushing | 2 |
| 6 | 250000454 | Torx Screw M6 X 12 | 6 |
| 1 | 510004951 | Fastening Tube Paint | 1 |
| 1 | 510005156 | Cable Support Plate | 1 |
| 1 | M546777 | Cable Retenue *Cable-Retainer | 1 |
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
| 2 | 605452114 | Plug | 2 |
| 1 | 269700017 | Latch Spring | 1 |
| 1 | 510005072 | Puller | 1 |
| 1 | 510005112 | Lock Pin Cover | 1 |
| 2 | 732600030 | Screw | 2 |
| 1 | 510004998 | LOCKING PLATE (FRAME) | 1 |
| 6 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 6 |
| 605452035 | LOCK PIN | ||
| 1 | 233261416 | Elastic Flange Nut M6 X 1.0 | 1 |
| 1 | 510005044 | Lock Pin Guide | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 510004876 | FASTENER PIN | ||
| 2 | 250000135 | Hex. Nut M6 | 2 |
| 4 | M20117 | Washer | 4 |
| 1 | 510005043 | Foam | 1 |
| 1 | 510005079 | Battery Cover | 1 |
| 1 | 515176804 | Battery Support | 1 |
| 1 | 510005143 | Battery Strap | 1 |
| 1 | 510005146 | Strap Cover | 1 |
