Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

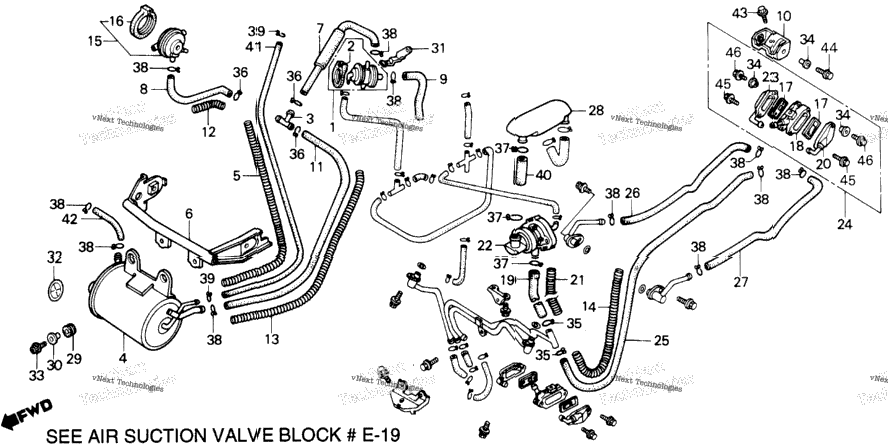

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 17300-MN0-681 | VALVE ASSY., AIR VENT CONTROL | ||
| 17305-MJ4-771 | RUBBER, SETTING | ||
| 17373-399-760 | JOINT, BREATHER (THREE-WAY) | ||
| 17410-MN0-681 | CANISTER (HITACHI) | ||
| 17414-MN0-680 | SPRING, CHARGE TUBE COVER | ||
| 17415-MN0-680 | BRACKET, CANISTER | ||
| 17416-MN0-680 | TUBE, AIR VENT CONTROL VALVE JOINT (THREE-WAY) | ||
| 17418-MN0-680 | TUBE, PURGE CONTROL VALVE JOINT (THREE-WAY) | ||
| 17419-MN0-680 | TUBE, AIR VENT CONTROL VALVE | ||
| 17420-MN0-680 | STAY, RR. AIR SUCTION VALVE SETTING | ||
| 17421-MN0-680 | TUBE, CANISTER JOINT (THREE-WAY) | ||
| 17422-MN0-680 | SPRING A, PURGE TUBE COVER | ||
| 17423-MN0-680 | SPRING B, PURGE TUBE COVER | ||
| 17424-MN0-680 | SPRING, RR. AIR TUBE | ||
| 17440-MN0-680 | VALVE, PURGE CONTROL | ||
| 1 | 17451-ME5-760 | RUBBER, PURGE CONTROL VALVE SETTING | 1 |
| 1 | 18601-MG9-005 | VALVE, REED | 1 |
| 18610-MN0-680 | BODY, AIR SUCTION VALVE | ||
| 18613-MN0-680 | TUBE, AIR INJECTION CONTROL VALVE | ||
| 18620-MN0-680 | COVER, AIR SUCTION VALVE (A) | ||
| 18627-MN0-680 | WIRE, TUBE GUARD | ||
| 18650-MK3-783 | VALVE ASSY., AIR INJECTION CONTROL | ||
| 18660-MN0-680 | COVER C, AIR SUCTION VALVE | ||
| 18700-MN0-680 | VALVE ASSY., RR. AIR SUCTION | ||
| 18741-MN0-680 | TUBE A, RR. AIR | ||
| 18742-MN0-680 | TUBE B, RR. AIR | ||
| 18743-MN0-680 | TUBE, RR. AIR (C) | ||
| 18750-MN0-680 | TANK, AIR IN. CONTROL CHAMBER | ||
| 1 | 19051-MB4-880 | RUBBER, CANISTER SETTING | 1 |
| 1 | 19052-MB4-880 | COLLAR, CANISTER MOUNTING | 1 |
| 50246-MN0-680 | STAY, AIR SUCTION VALVE SETTING | ||
| 87200-MB1-870 | LABEL, JACK WARNING (UPPER) | ||
| 90097-MB4-880 | BOLT, FLANGE SOCKET (6X25) | ||
| 1 | 90522-KF0-000 | COLLAR, SIDE COVER SETTING | 1 |
| 1 | 90643-MK3-781 | CLIP, TUBE (B16) | 1 |
| 1 | 90651-MK3-780 | CLIP B, TUBE (12.5MM) | 1 |
| 1 | 90653-MK3-780 | CLIP, TUBE (B20) | 1 |
| 1 | 90654-MK3-780 | CLIP, TUBE (B14) | 1 |
| 1 | 95002-02080 | CLIP, TUBE (B8) | 1 |
| 95005-12001-10M | BULK HOSE, VACUUM (12X1000) (12X45) | ||
| 1 | 95005-45001-20M | BULK HOSE, VACUUM (4.5X1000) (4.5X610) | 1 |
| 1 | 95005-80001-20M | BULK HOSE, VACUUM (8X1000) (8X100) | 1 |
| 1 | 95700-06010-08 | BOLT, FLANGE (6X10) | 1 |
| 1 | 95701-06010-08 | BOLT, FLANGE (6X10) | 1 |
| 1 | 95700-06020-08 | BOLT, FLANGE (6X20) | 1 |
| 1 | 95701-06020-08 | BOLT, FLANGE (6X20) | 1 |
| 1 | 96001-06020-00 | BOLT, FLANGE (6X20) | 1 |
| 1 | 96001-06030-00 | BOLT, FLANGE (6X30) | 1 |
