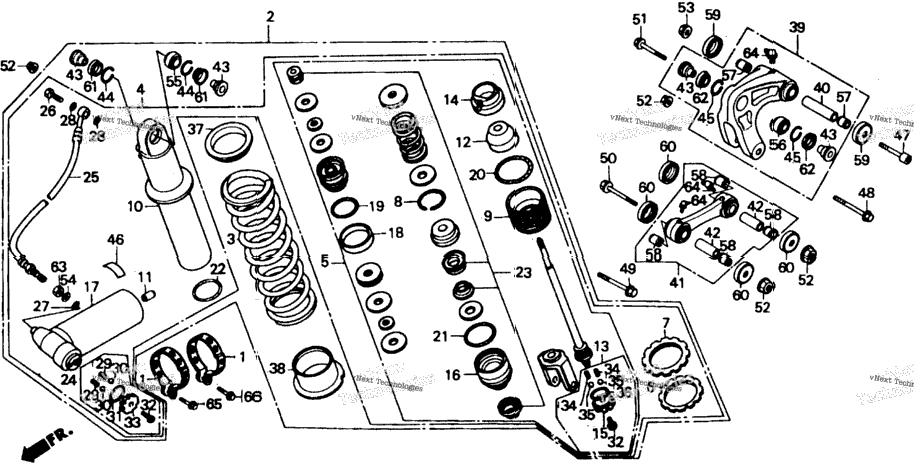

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 50252-MK2-770 | BAND, SUB-TANK | ||
| 52400-MK2-771 | SHOCK ABSORBER ASSY., RR. | ||
| 52401-MK2-003 | SPRING, RR. SHOCK ABSORBER | ||
| 52410-MK2-771 | DAMPER, RR. | ||
| 52421-MK2-771 | ROD, PISTON | ||
| 52422-KN5-003 | ADJUSTER, SPRING | ||
| 52423-KA3-711 | NUT, ADJUSTER | ||
| 52423-MK2-771 | RING D, STOPPER | ||
| 52424-MK2-771 | SEAT, SPRING | ||
| 52425-MK2-771 | CASE, SHOCK ABSORBER | ||
| 1 | 52425-381-771 | CAP, AIR VALVE | 1 |
| 52427-MK2-771 | RUBBER, STOPPER | ||
| 52428-KN5-003 | PLATE SET, ADJUSTING | ||
| 52428-MK2-771 | PLATE, END | ||
| 52429-KN5-003 | PLATE, ADJUSTING | ||
| 52429-MK2-771 | CASE, ROD GUIDE | ||
| 52430-MK2-003 | TANK ASSY., RESERVOIR | ||
| 52431-KF0-003 | RING, PISTON | ||
| 52432-KF0-003 | O-RING C (2.0X29.5) | ||
| 52432-MK2-771 | O-RING (2.0X47.5) | ||
| 52434-KF0-003 | O-RING D (3.5X29.7) | ||
| 52435-KF0-003 | RING, STOPPER | ||
| 52436-MK2-771 | OIL SEAL SET | ||
| 52438-KN5-003 | PLATE SET, ADJUSTING | ||
| 52440-MK2-003 | HOSE, JOINT | ||
| 52441-KA3-711 | BOLT, OIL (10X22) | ||
| 52441-MA0-003 | O-RING (9.8X1.9) | ||
| 2 | 52442-KA3-711 | WASHER, SPECIAL (10MM) | 2 |
| 52445-KN5-003 | SPRING, CLICK | ||
| 52446-KF0-003 | BALL | ||
| 52447-KF0-003 | O-RING (2X23.5) | ||
| 2 | 52448-KF0-003 | SCREW | 2 |
| 52449-KF0-771 | PLATE, ADJUSTING | ||
| 2 | 52455-KF0-003 | SPRING, CLICK | 2 |
| 2 | 52456-KF0-003 | BALL | 2 |
| 1 | 52457-KN5-003 | SEAL, RING | 1 |
| 52458-KN5-003 | SEAT B, SPRING | ||
| 52459-KN5-003 | SEAT C, SPRING (SHOWA) | ||
| 52460-MK2-010 | ARM ASSY., SHOCK ABSORBER Use up to Frame SN GK103512 | ||
| 52460-MM0-620 | ARM ASSY., SHOCK ABSORBER Use from Frame SN GK103513 | ||
| 1 | 52463-KN5-000 | COLLAR, CUSHION ARM PIVOT | 1 |
| 52470-MK2-770 | ROD ASSY., SHOCK CONNECTING | ||
| 2 | 52473-KN5-000 | COLLAR, CUSHION CONNECTING ROD | 2 |
| 52486-KN5-003 | COLLAR, SHOCK ABSORBER | ||
| 2 | 52487-KA4-831 | RING, STOPPER | 2 |
| 2 | 52487-KN5-000 | RING, STOPPER | 2 |
| 87516-MA0-003 | LABEL, RR. DAMPER CAUTION | ||
| 90128-KN5-000 | BOLT, SOCKET (12X100) | ||
| 1 | 90129-KF0-000 | BOLT, FLANGE (10X77) | 1 |
| 1 | 90129-KAS-900 | BOLT, FLANGE (10X71) | 1 |
| 1 | 90150-MK2-770 | BOLT, FLANGE (10X72) | 1 |
| 90151-KF0-000 | BOLT, FLANGE (10X69) | ||
| 90153-MK2-770 | BOLT, FLANGE (10X48) | ||
| 4 | 90304-GE8-003 | NUT, U (10MM) | 4 |
| 1 | 90306-KF0-003 | NUT, FLANGE (12MM) | 1 |
| 1 | 90401-KF0-003 | WASHER | 1 |
| 1 | 90501-MT2-000 | WASHER | 1 |
| 1 | 91077-KA4-831 | BEARING, SPHERICAL (14MM) | 1 |
| 1 | 91077-KN5-004 | BEARING, SPHERICAL (14MM) | 1 |
| 2 | 91078-KN5-003 | BEARING, CUSHION ARM (NTN) | 2 |
| 4 | 91079-KN5-003 | BEARING, CONNECTING ROD | 4 |
| 2 | 91261-KN5-003 | SEAL, CUSHION ARM | 2 |
| 4 | 91262-KN5-003 | SEAL, CUSHION CONNECTING ROD PIVOT | 4 |
| 91351-KN5-003 | DUST SEAL B | ||
| 2 | 91351-KN5-004 | DUST SEAL B | 2 |
| 1 | 94002-12000-0S | NUT, HEX. (12MM) | 1 |
| 3 | 96201-80000 | NIPPLE, GREASE (B.T6S) | 3 |
| 1 | 96300-06020-00 | BOLT, FLANGE (6X20) | 1 |
| 1 | 96300-06025-00 | BOLT, FLANGE (6X25) | 1 |
