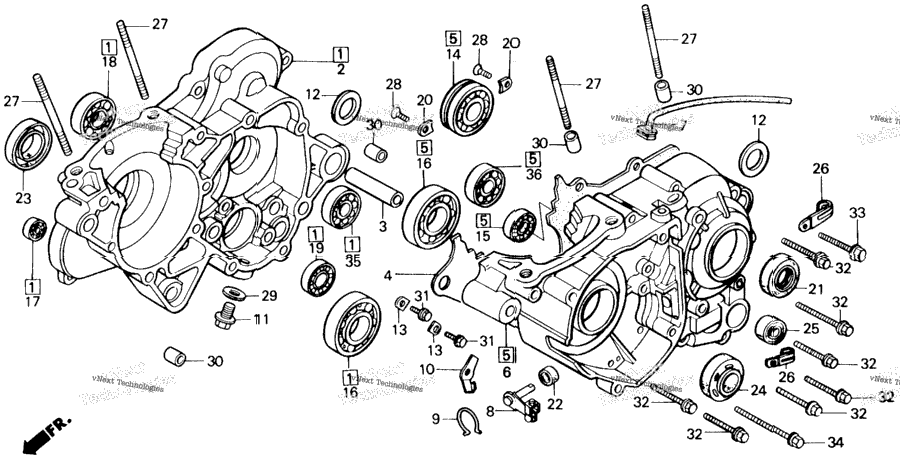

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 11100-KA3-760 | CRANKCASE, R. | ||
| 90515-KA3-830 | COLLAR (18MM) | ||
| 11191-KA3-308 | GASKET, CRANKCASE | ||
| 11191-KA3-760 | GASKET, CRANKCASE | ||
| 11200-KA3-760 | CRANKCASE, L. | ||
| 1 | 11211-GC4-701 | TUBE, BREATHER | 1 |
| 22810-KA3-710 | LIFTER, CLUTCH | ||
| 22815-KA3-760 | SPRING, CLUTCH LEVER | ||
| 22821-KA3-710 | STOPPER, CLUTCH LIFTER | ||
| 1 | 90015-KA3-711 | BOLT, SPECIAL (12MM) | 1 |
| 90412-KA3-000 | WASHER (15X30) | ||
| 2 | 90441-KA4-700 | PLATE, BEARING HOLDER | 2 |
| 1 | 91001-KA3-711 | BEARING, BALL (6204) | 1 |
| 1 | 91001-KA4-003 | BEARING, RADIAL BALL (12X28X7) (TOYO) | 1 |
| 2 | 91002-KE1-014 | BEARING, RADIAL BALL (63/22) | 2 |
| 2 | 91002-KY4-901 | BEARING, RADIAL BALL (63/22) | 2 |
| 2 | 91002-466-008 | BEARING, RADIAL BALL (63/22) (TOYO) | 2 |
| 1 | 91002-KA4-003 | BEARING, RADIAL BALL (7X19X6) (TOYO) | 1 |
| 1 | 91002-KA4-004 | BEARING, RADIAL BALL (7X19X6) (KOYO) | 1 |
| 1 | 91002-KA4-005 | BEARING, RADIAL BALL (7X19X6) (NACHI) | 1 |
| 91003-GE0-003 | BEARING, RADIAL BALL (60/22) | ||
| 91003-751-701 | BEARING, RADIAL BALL (60/22) (TMB) | ||
| 1 | 91004-GC4-731 | BEARING, RADIAL BALL (25X42X9) (TOYO) | 1 |
| 1 | 91004-430-003 | BEARING, RADIAL BALL (6905Z) (NACHI) | 1 |
| 1 | 91004-430-004 | BEARING, RADIAL BALL (6905Z) (KOYO) | 1 |
| 2 | 91012-KA3-710 | PLATE, COUNTERSHAFT BEARING | 2 |
| 1 | 91201-KA3-711 | OIL SEAL (26X37X7) (ARAI) | 1 |
| 1 | 91201-KA3-712 | OIL SEAL (26X37X7) (NOK) | 1 |
| 1 | 91201-KS6-004 | OIL SEAL (26X37X7) (ARAI) | 1 |
| 1 | 91201-VB3-802 | OIL SEAL (10X17X4) (NOK) | 1 |
| 1 | 91202-KA3-711 | OIL SEAL (10X17X4) (ARAI) | 1 |
| 1 | 91202-KA3-712 | OIL SEAL (10X17X4) (NOK) | 1 |
| 1 | 91203-466-003 | OIL SEAL (30X45X8) | 1 |
| 1 | 91203-KS6-003 | OIL SEAL (30X45X7) (NOK) | 1 |
| 1 | 91203-KS6-004 | OIL SEAL (30X45X8) (ARAI) | 1 |
| 91204-444-005 | OIL SEAL (20X35X8) | ||
| 91206-KA3-711 | OIL SEAL (14X22.7X6) | ||
| 91206-KA3-712 | OIL SEAL (14X22.7X5) | ||
| 1 | 91406-657-671 | CLIP, WIRE HARNESS Use up to Engine SN 2602911 | 1 |
| 2 | 91406-657-671 | CLIP, WIRE HARNESS Use from Engine SN 2602912 | 2 |
| 4 | 92700-08055-3E | BOLT, STUD (8X55) | 4 |
| 4 | 92900-08035-0B | BOLT 2, STUD (8X35) | 4 |
| 4 | 92900-08035-0E | BOLT, STUD (8X35) | 4 |
| 2 | 93600-06012-0A | SCREW, FLAT (6X12) | 2 |
| 1 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 1 |
| 4 | 94301-10140 | PIN A, DOWEL (10X14) | 4 |
| 2 | 96000-06014-00 | BOLT, FLANGE (6X14) | 2 |
| 2 | 96001-06014-00 | BOLT, FLANGE (6X14) | 2 |
| 7 | 96000-06045-07 | BOLT, FLANGE (6X45) | 7 |
| 7 | 96001-06045-07 | BOLT, FLANGE (6X45) | 7 |
| 3 | 96000-06065-07 | BOLT, FLANGE (6X65) | 3 |
| 3 | 96001-06065-07 | BOLT, FLANGE (6X65) | 3 |
| 96000-06080-07 | BOLT, FLANGE (6X80) | ||
| 96001-06080-07 | BOLT, FLANGE (6X80) | ||
| 1 | 96100-60030-00 | BEARING, RADIAL BALL (6003) | 1 |
| 1 | 96140-60030-00 | BEARING, RADIAL BALL (6003U) | 1 |
