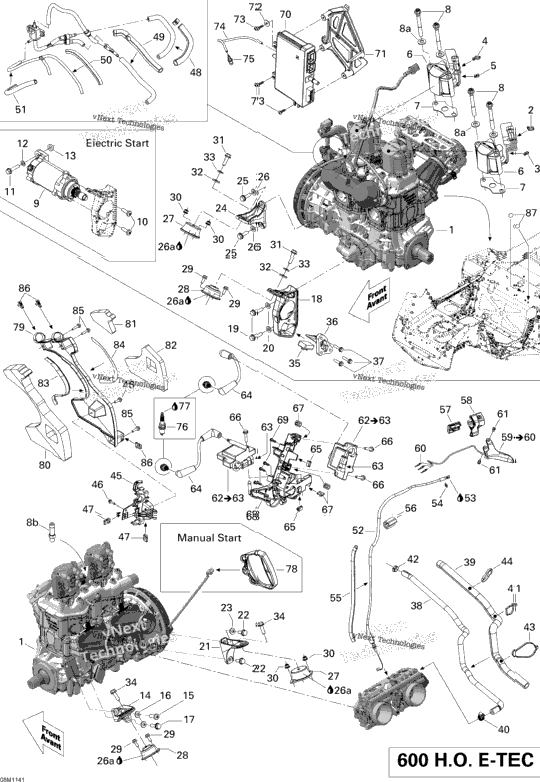

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Engine 600HOE With Rewind Starter | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 2 | 512060539 | Fuel Injector Ass'y | 2 |
| 2 | 420430930 | Gasket | 2 |
| 4 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 | 4 |
| 4 | 234001410 | Flat Washer 10 mm | 4 |
| 1 | 420924720 | Hose Nipple | 1 |
| XXX | Not Available As Spare Parts Electric Starter | ||
| XXX | Not Available As Spare Parts | ||
| 1 | 512060478 | Rear Support, PTO | 1 |
| 1 | 250000248 | Torx Screw M8 X 25, Scotch Grip | 1 |
| 2 | 234281474 | Conical Spring Washer M8 | 2 |
| 1 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 1 |
| 512060560 | Front Support, PTO | ||
| 2 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 1 | 512060559 | Rear Support, MAG | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 1 | 234281474 | Conical Spring Washer M8 | 1 |
| 1 | 512060469 | Front Support, MAG | 1 |
| 293550033 | SUSPENSION GREASE, 10 X 400 G | ||
| 2 | 512060457 | Rubber Mount | 2 |
| 2 | 512060448 | Rubber Mount | 2 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 3 | 207583086 | Hex. Flange Screw M8 X 30, Scotch Grip | 3 |
| 3 | 503183200 | Yellow, Washer | 3 |
| 1 | 250000361 | Hex. Screw M8 | 1 |
| 1 | 512060577 | STOPPER | 1 |
| 1 | 512060576 | Stopper Support | 1 |
| 3 | 207562544 | Hex. Flange Screw M6 X 25 | 3 |
| 1 | 509000793 | FORMED HOSE OUTPUT TB | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 293650084 | Norma Clamp | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293650046 | Oetiker Clamp | 1 |
| 1 | 512060298 | Solenoid Support | 1 |
| 2 | 207652044 | Hex.Flange Screw M5 X 20 | 2 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 1 | 512060572 | Throttle Cable | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 414274500 | Circlip | 1 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 1 | 512060313 | Protector | 1 |
| 512060198 | Upper Housing Ass'y | ||
| 1 | 512060430 | Lower Housing | 1 |
| 1 | 512060618 | Throttle Handle Includes 59 to 60 | 1 |
| 3 | 515175232 | Male Terminal | 3 |
| 2 | 732601143 | Flange Screw | 2 |
| 2 | 512060644 | Ignition Coil Includes 62 to 63 | 2 |
| 1 | 710000568 | Housing | 1 |
| 2 | 512060094 | Ignition Cable, 177 mm | 2 |
| 2 | 710000992 | Clip | 2 |
| 3 | 250000253 | Hex. Flange Screw M6 X 1.0 X 30 | 3 |
| 3 | 293100003 | Nut Welded, M6 | 3 |
| 1 | 512060287 | Support Coils | 1 |
| 4 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 4 |
| 1 | 512060612 | Calibrated Module | 1 |
| 1 | 512060297 | Calibrated Module Support | 1 |
| 1 | 250200040 | Flat Washer | 1 |
| 3 | 250000297 | Truss Head Torx Screw K50 X 20 | 3 |
| 1 | 219704409 | Was 415080100 Fuel Line Primer 3,2mm | 1 |
| 1 | 414814100 | Male Connector | 1 |
| 2 | 415129432 | Spark Plug NGK PZFR6F | 2 |
| 1 | 512060136 | Starter Grip Manual Start | 1 |
| 1 | 512060339 | NOISE SHIELD | 1 |
| 1 | 512060343 | Interior Noise Foam | 1 |
| 1 | 512060344 | Upper Exterior Noise Foam | 1 |
| 512060362 | LOWER EXTERIOR NOISE FOAM | ||
| 1 | 512060574 | Heat Shield | 1 |
| 1 | 512060575 | Heat Shield | 1 |
| 3 | 207652044 | Hex.Flange Screw M5 X 20 | 3 |
| 3 | 250000079 | Panel Nut M5 X 0.8 | 3 |
| 2 | 518325560 | Adhesive Patch | 2 |
