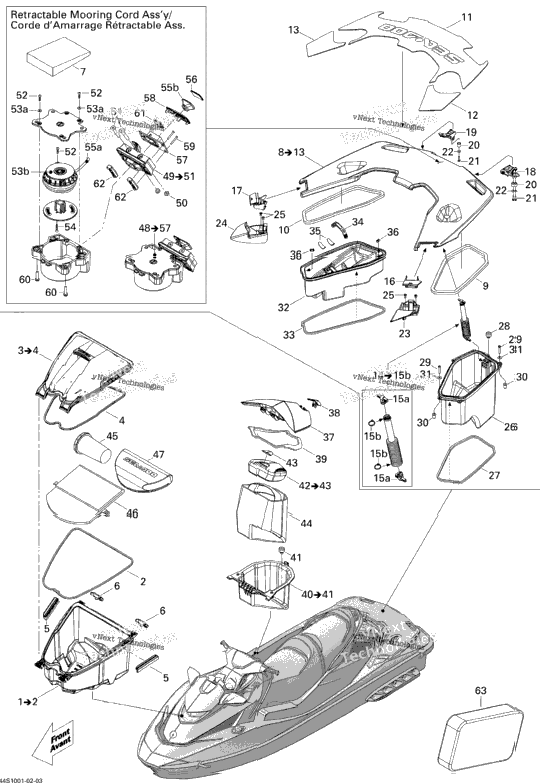

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 264000007 | Storage Bin Ass'y Includes 1 to 2 | 1 |
| 1 | 219704374 | Was 293250161 Gasket | 1 |
| 1 | 264000009 | Storage Bin Cover Ass'y Includes 3 to 4 | 1 |
| 1 | 293250210 | NEOPRENE SEAL | 1 |
| 2 | 269501609 | Clip | 2 |
| 2 | 264000024 | Latch | 2 |
| 1 | 264000025 | Platform Foam | 1 |
| 1 | 264000034 | Rear Platform Ass'y Includes 8 to 13 | 1 |
| 1 | 219704375 | Was 293250186 Gasket | 1 |
| 1 | 291002585 | Rear Platform Carpet | 1 |
| 1 | 264000040 | LH Platform Carpet | 1 |
| 1 | 264000041 | RH Platform Carpet | 1 |
| 1 | 264000026 | Shock Ass'y Includes 14 to 15b | 1 |
| 2 | 269501717 | Shock End Piece | 2 |
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 1 | 264000020 | LH Latch | 1 |
| 1 | 264000021 | RH Latch | 1 |
| 1 | 264000003 | LH Pivot Support | 1 |
| 1 | 264000032 | RH PIVOT SUPPORT | 1 |
| 2 | 264000042 | SPACER | 2 |
| 2 | 243162560 | Hex. Flange Screw M6.81 X 25, Plastite | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 264000055 | LH LATCH BASE, BLACK | 1 |
| 1 | 264000056 | RH LATCH BASE, BLACK | 1 |
| 4 | 293150123 | Pop Rivet 3/16" | 4 |
| 1 | 264000001 | LH Rear Tray | 1 |
| 1 | 219704378 | Was 293250218 Gasket | 1 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 4 | 205463560 | Socket Head Screw M6 X 35 | 4 |
| 4 | 250100083 | Expansion Nut M6 X 1 | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 1 | 264000002 | RH Rear Tray | 1 |
| 1 | 269500408 | Strap | 1 |
| 2 | 264000043 | TRAY PAD | 2 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 1 | 264000004 | GLOVE BOX DOOR, TOPAZ | 1 |
| 1 | 264000019 | Latch, Black | 1 |
| 1 | 293250204 | Gasket | 1 |
| 1 | 264000031 | GLOVE BOX ASS'Y Includes 40 to 41 | 1 |
| 291002814 | REMOVABLE CASE ASS'Y Includes 42 to 43 | ||
| 1 | 291002793 | Sea-Doo Decal | 1 |
| 291002761 | PROTECTION LINER | ||
| 1 | 295100330 | Safety Kit | 1 |
| 1 | 269501744 | Drybag, 10 L | 1 |
| 1 | 269501318 | ANCHOR SANDBAG | 1 |
| 1 | 291003022 | Retractable Rope Ass'y Includes 48 to 57 | 1 |
| 1 | 291003023 | JAM CLEAT SYSTEM ASS'Y Includes 49 to 51 | 1 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 2 | 205364060 | Socket Head Screw M6 X 40 | 2 |
| 6 | 241731260 | Oval Philipp Screw KA30 x 12 | 6 |
| 4 | 234032600 | Flat Washer M3, Stainless | 4 |
| 291002762 | INSIDE COVER | ||
| 1 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 | 1 |
| 1 | 219704363 | ROPE 3/16 3000MM LONG | 1 |
| 1 | 291002726 | BUTTON | 1 |
| 1 | 291002754 | Button Cap | 1 |
| 1 | 291002729 | ROPE GUIDE | 1 |
| 1 | 291002725 | REAR REWIND FRAME | 1 |
| 4 | 205364560 | SOCKET SCREW HEAD M6 X 45 | 4 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 1 | 291002727 | UNDER CAM | 1 |
| 2 | 291002755 | DOUBLE CAGE NUT ASS'Y | 2 |
| 1 | 280000460 | Cover | 1 |
